ArcGIS Earth Desktop 1.13 has been released on July 29. To learn more, and to download the latest ArcGIS Earth, check out the ArcGIS Earth product page. It will go live later on Microsoft store.



What's New



This release includes support for new exciting features like configuration file sharing, visibility range, layer icon customization, and made several enhancements.



Features

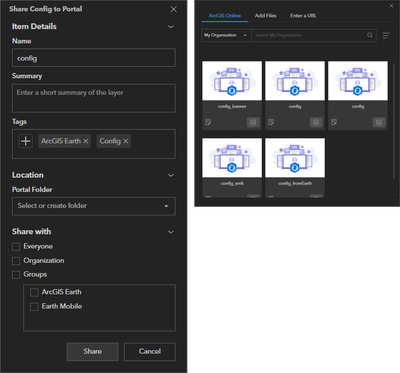

Config sharing - You can share a local configuration file with your organizations as an XML file directly through the ArcGIS Earth Configuration Manager.


Visibility Range - Set layer visibility at a specified range and get the best view of data at various levels of detail.

                                XiChen_1-1627597254794.gif                                                  XiChen_2-1627597291736.gif

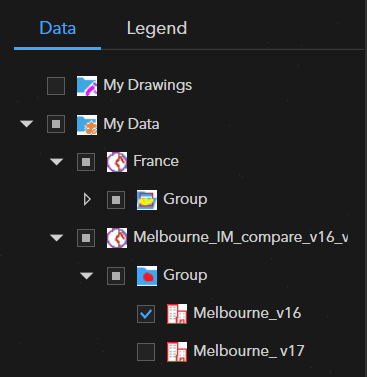

Layer icon customization - Layer icons in the table of contents can now be customized based on each layer type or folder type.






Enhancements



Undo/Redo editing enhancement - Undo and redo are now supported for editing KML properties, including colors, styles, labels, views, information.

Time format unification - The format of time elements displayed in ArcGIS Earth will match the operating system settings.

Microsoft .appx equivalency - ArcGIS Earth 1.13 installed from Microsoft Store is now equivalent to ArcGIS Earth installed using an executable file in terms of social logins and being set as the default app for KML, KMZ, or MSPK.





Issue Addressed



The following table lists reported bugs that were fixed at ArcGIS Earth 1.13:

  • BUG-000138088: ArcGIS Earth fails to load a WMS service enabled from an image service.
  • BUG-000102047: Adding a mosaic dataset image service with Allowed Mosaic Methods 'Default method : By Attribute and Order Field : Date' gives the error String was not recognized valid Date_Time error when the service URL is added to ArcGIS Earth.
  • BUG-000138227: When viewing a map service with a set visibility range in ArcGIS Earth, pop-ups will still display when features are not visible.
  • BUG-000139838: When adding the URL of the configuration file hosted over ArcGIS Online to ArcGIS Earth, the Unable to load configuration settings error message is returned.





Known Limitation



Features

Description

KML/HTML window

Some videos using H264/AAC codecs cannot be played in ArcGIS Earth.

Time slider

When data falls outside of the time interval, it is still displayed in ArcGIS Earth.

Feature service

Feature service fails to load when it contains SVG symbols.

I18N

Arabic strings display as boxes after applying italic style on the Info tab of the Properties dialog box.

Visibility range

Preset maximum or minimum scale of the web map cannot be read in ArcGIS Earth.

KML

No "Properties" option when right-click on kml placemark if there's no properties info for this kml data.

KML

No highlight after selecting a drawing KmlPlacemark on TOC if there's no properties info for this kml data.



Regarding the last two known limitations of KML data, we currently provide below workarounds:

  • Make sure KML data is appropriately edited with properties info
  • Double-click KML data from the Table of Contents to zoom to the data
  • Check or uncheck from the Table of Contents to navigate to the data
