Per block OBJ export causes wrong textures

377
2
Jump to solution
03-22-2024 04:43 AM
EarnestWorthing
New Contributor

Dear community,

For my project I need to export each block individually to OBJ files. As a scene I use 'Generate an Imaginary City'. When I import the objects individually and import the OBJ file in blender I get dark textures which will also appear dark when rendering with blender.

This is not the case when I export the scene as a single OBJ. Here everything works perfectly fine.

Could you please help me further?

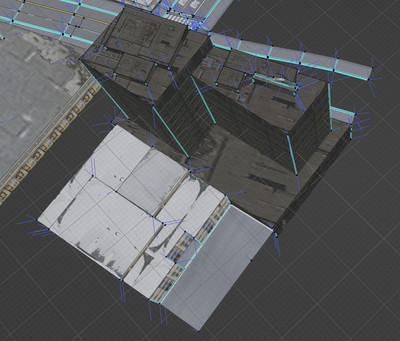

The following screenshot of a blender scene depicts the problem:

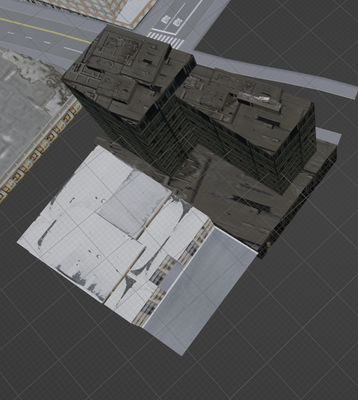

Dark building: OBJ export (Export models > OBJ > File Granularity: One file per start shape)
Lighted buildings: OBJ export (Export models > OBJ > File Granularity: One file as long as Memory Budget is not exceeded)

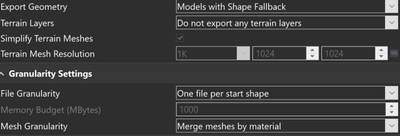

Further export settings:

EarnestWorthing_3-1711106975380.pngEarnestWorthing_4-1711107010477.pngEarnestWorthing_5-1711107088821.png



Normals appear correct (blue: outside, red: inside):


Thank you very much for your help in advance.





0 Kudos
1 Solution

Accepted Solutions
EarnestWorthing
New Contributor

Cause of the reported issue: transmission value of texture is set to 1 for individually exported objects
Quick fix: set value to 0

It might be helpful for users to have same values for both export versions.

View solution in original post

0 Kudos
2 Replies
EarnestWorthing
New Contributor

Cause of the reported issue: transmission value of texture is set to 1 for individually exported objects
Quick fix: set value to 0

It might be helpful for users to have same values for both export versions.

0 Kudos
SimonHaegler
Esri Contributor

Thanks for reporting this!

Just to be sure I understand correctly: you manually fixed the Tr (or Tf?) value in the mtl files? Or did you set opacity in CGA?

Would you posting a diff of a "good" and "bad" mtl for your use case?

Best,
Simon

0 Kudos
