3D layer isnt rendering in Scene View AGO

[msa4012]

Hi,

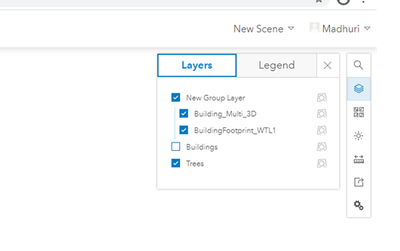

I was able to publish my ArcGIS Pro project to Web Scene, but the 3D Building footprint layer isnt draiing in the Scene Viewer. I do see the layer listed, and able to change the Symbology but cannot get the layer to draw on the map. I followed the steps mentioned here:

Authoring 3D Layers and Creating Web Scenes in ArcGIS Online (esri.com)

[msa4012]

Here's the difference in Scene Viewer vs. Pro

[RussRoberts]

Can you check the jobs pane in Pro to see if the job for the scene layer completed?

[msa4012]

This is what it shows

[RussRoberts]

Can you share the web scene and layers? You can create a group and invite russell_jsapi into it if you cant share publicly

[msa4012]

https://arcg.is/0W5Dy8

[RussRoberts]

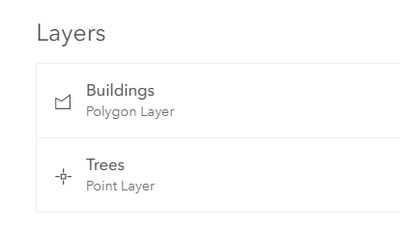

Was a WFL with multipatch geometry type published? When I looked at the FL in the map it has this grouping. To have a 3D Object you will need a multipatch Feature Class in the scene in Pro and then that will generate a feature layer with multipatch geometry to go with the 3D Object scene layer

[msa4012]

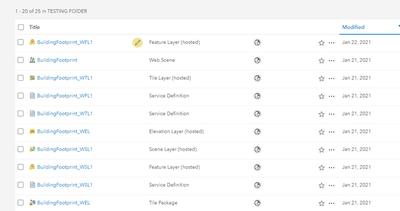

This is what I am seeing:

https://arcg.is/910GS

The Building_Multi_3D is the layer created by using Layer 3D to Feature class tool. Thanks for your help.

[RussRoberts]

Can you share the Feature Layer associated with that Scene Layer.. it looks like its still private.

[msa4012]

I have changed the sharing on everything to public for this scene and all its associated Services.
