missing Electric Utility Network Layer (id 950) in the latest release of Electric Asset Package release 3.2?

Anonymous User

John Alsup‌

Remi Myers‌

Michael Miller‌

Is it a bug or due to missing Electric Utility Network Layer (id 950) in the latest release of Electric Asset Package release 3.2?

I don't see Electric Utility Network Layer within the Electric Network Editor v3.2 ArcGIS Pro project.

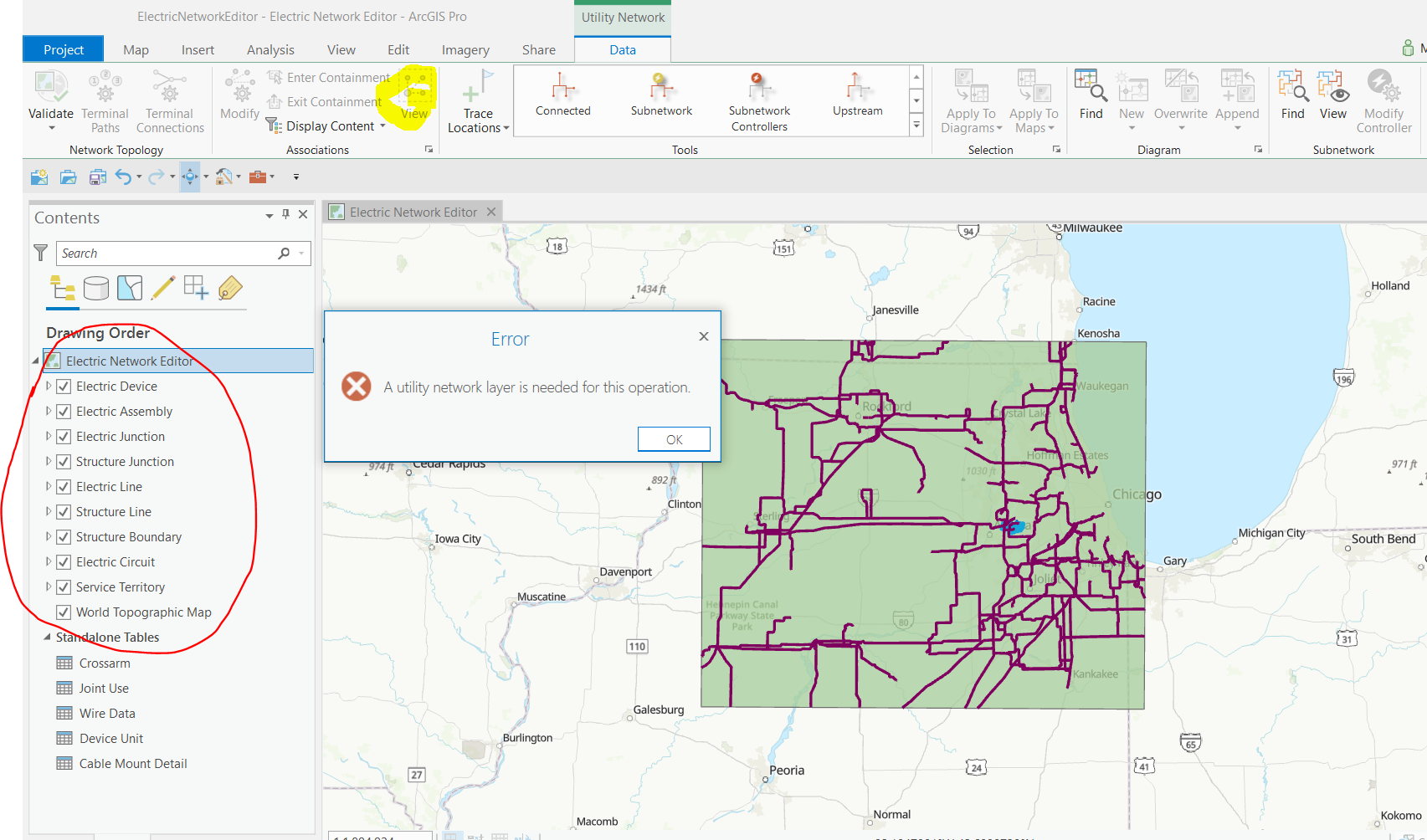

The Trace Locations are grayed out as shown below -

The View Associations throwing below error -

Regards,

Manoj

タグ付きの投稿をもっと見る

Accepted answers

Anonymous User

Michael Miller‌

Yes, now it is working fine.

Deleted previous geodatabase created in my first attempt and I started from scratch.

Manoj

All comments

MikeMillerGIS

You are now required to add the UN layer to the editing map. Details can be found here.

Deploy the network editor—ArcGIS Help | ArcGIS Solutions for Electric

We forgot to add this note to the release notes.

Anonymous User

Michael Miller‌

Thanks, I will check and let you know soon.

Daniel Simo‌

Anonymous User

Michael Miller‌

Hi Mich, I followed the steps as per the link you have provided, but as reported I can see the Trace Location tools are still showing disabled. anything I am missing?

Anonymous User

Michael Miller‌

Yes, now it is working fine.

Deleted previous geodatabase created in my first attempt and I started from scratch.

Manoj
