What Flow Accumulation Threshold Should I Use?
Background
The delineation and analysis of stream networks within a Geographic Information System (GIS) environment is a foundational task in hydrologic and terrain analysis. These networks serve as a spatial framework for modeling water flow, watershed boundaries, and surface‑hydrology processes. While creating stream networks can be computationally intensive and methodologically complex, the benefits they provide to spatial analysis and environmental modeling are substantial.
In typical GIS workflows, stream networks are derived from Digital Elevation Models (DEMs) through a sequence of hydrologic‑processing steps: depression filling, flow‑direction modeling, flow accumulation, and stream thresholding. Among these, defining the stream‑initiation threshold, the minimum contributing area required for a channel to be considered a stream, is particularly challenging and highly context‑dependent.
Many users ask for the “perfect” threshold for their area of interest, but no universal value applies across all landscapes. The appropriate threshold varies with regional precipitation patterns, soil permeability, vegetation cover, topographic relief, and underlying geology. For example, in arid or semi‑arid environments, surface runoff is less frequent and tends to concentrate in fewer, more episodic channels, necessitating a higher flow‑accumulation threshold to define meaningful stream features. Conversely, in humid or low‑relief regions, shallow overland flow may form continuous drainage paths with relatively low contributing areas, requiring a lower threshold for accurate representation.
Our approach to stream delineation is grounded in methodology developed by the U.S. Geological Survey (USGS) to provide a consistent, hydrologically-based means of stream network delineation. Specifically, it draws from “Flow-Based Method for Stream Generation in a GIS” by Michael E. Wieczorek (USGS, 2017), which introduces a GIS-based workflow for generating stream networks based on estimated flow values, rather than arbitrary area accumulation thresholds alone. This method leverages publicly available runoff data in conjunction with Digital Elevation Models (DEMs) to produce stream networks that correspond to a defined flow threshold; as stated above, there is no “perfect” threshold, but by default the tool uses a flow threshold of 1 cubic foot a second (cfs). By anchoring delineation in hydrologic criteria, this technique improves consistency and interpretability across landscapes and provides a scientifically robust alternative to more subjective, area accumulation based approaches.
New Arc Hydro Tools

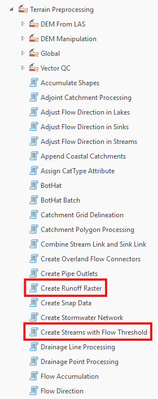

To incorporate more physical and climatic factors into stream delineation, Arc Hydro - the free add-in for ArcGIS Pro, now includes two geoprocessing tools:
- Create Runoff Raster
- Create Streams with Flow Threshold
Together, these tools implement the USGS flow based method. Instead of defining streams by a set number of upstream cells, this approach uses actual runoff data and flowrate estimates to determine where streams initiate.
The workflow begins by obtaining mean annual runoff values, typically from USGS Hydrologic Unit Code (HUC) datasets, and converting them into a raster at the same resolution as the DEM. A flow grid is then created using the DEM and the runoff raster via a flow accumulation function, with the runoff raster serving as the weight raster. This results in a grid where each cell represents the total volume of water that flows into it in a year.
These yearly flow values are converted to traditional flow rates (e.g., cubic feet per second, cfs) via map algebra. Analysts can then apply an absolute hydrologic threshold (e.g., 1 cfs) to define where streams begin, rather than relying on relative cell counts. Thresholds may be based on mean, median, seasonal, or event‑based flows, allowing a flexible yet standardized approach across diverse regions.

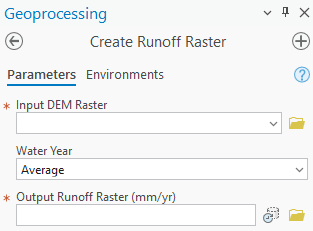

Create Runoff Raster
This tool downloads runoff values for a defined area of interest and converts it into a raster with the same extent and cell size as the input DEM. The average runoff data comes from WaterWatch, a U.S. Geological Survey service providing historical runoff data (1901 – 2023) for the continental United States.
Have suggestions for additional publicly available runoff sources outside the United States? Leave a comment below.
Create Streams with Flow Threshold
This tool produces a binary stream raster by calculating flow direction and flow accumulation from the DEM, weighing those results with the runoff raster to generate pixel values representing flow (volume per time). The Flow Threshold parameter defines the minimum runoff required for a cell to qualify as a stream. The default value is 1 cfs, as recommended by the USGS, but you can adjust it to obtain denser or sparser networks.
Practical Use Case

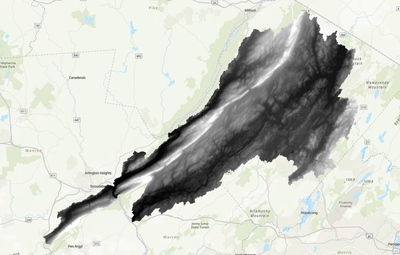

Below is a streamlined example of generating a runoff‑based stream network. The only prerequisite is a DEM. (If you need one, use the Download DEM Arc Hydro tool)
Step 1 - Create Runoff Raster

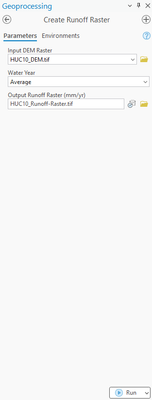

Run Create Runoff Raster with your DEM as Input DEM Raster and select the year of interest.
Step 2 – Create Streams with Flow Threshold

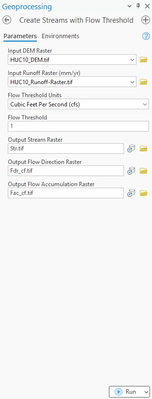

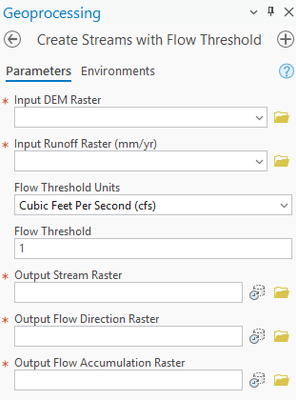

Run Create Streams with Flow Threshold, using:
- Input DEM Raster: the same DEM as in Step 1
- Input Runoff Raster: the runoff raster from Step 1
- Flow Threshold: leave at 1 cfs or modify as needed

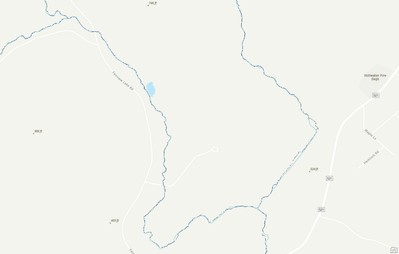

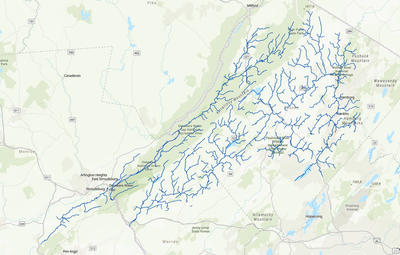

The output Str.tif raster may appear subtle at small scales; zooming in reveals the derived stream network.
Step 3 - Convert To Vector (Optional)

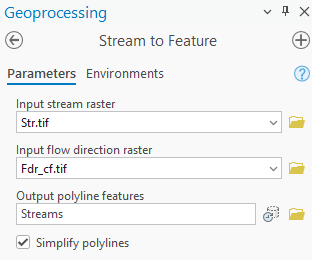

Optionally run Stream to Feature to convert the raster network to vector features.
In just three geoprocessing steps, local runoff data was incorporated into terrain data to derive a stream network.
Why Two Separate Tools?
To maximize flexibility, the stream derivation workflow was intentionally split into two geoprocessing tools. This allows analysts to use their own runoff data, especially those working outside the continental U.S. or with alternative datasets. While such users may skip the Create Runoff Raster tool, they can still fully leverage Create Streams with Flow Threshold to generate stream networks. By decoupling the tools, the workflow supports a broader range of hydrologic data beyond WaterWatch.
Conclusion
Defining a flow accumulation threshold for stream network delineation has long challenged hydrologic GIS practitioners. Traditional, arbitrary cell count thresholds often fail across landscapes with varying climate, terrain, and hydrology. By leveraging Create Runoff Raster and Create Streams with Flow Threshold, analysts now have an objective, data driven method for stream initiation, anchored in actual runoff and flow measurements.
This flow based approach enhances the consistency, transparency, and reproducibility of derived networks, whether you work in steep alpine basins or low relief floodplains. As hydrologic modeling evolves, integrating real world data into GIS workflows will be essential. These Arc Hydro tools help bridge that gap, enabling stream networks that more accurately represent landscape processes. We encourage GIS professionals, researchers, and resource managers to explore this methodology and share feedback to refine and expand its utility.
Additional Notes
Geographic Coverage: Because Create Runoff Raster relies on WaterWatch, it currently supports only the continental United States.
Software Requirements: Both tools use functions from the ArcGIS Spatial Analyst extension; ensure you have a valid license.
