Introducing a new processing report in Site Scan

182
0
02-11-2025 08:28 AM
dozer
by Esri Contributor
Esri Contributor
4 0 182
‎02-11-2025 08:28 AM

Overview

Site Scan uses the Reality Engine to process drone imagery and create 2D and 3D outputs. These outputs are used in many ways, such as to lay the groundwork for a digital twin, to derive insights using GeoAI, or simply to describe the current state of your project site in a map or application. Processed data is frequently the basis for business decisions, which is why it is important for the data to be reliable.

The processing report is one tool that can inform an analyst or project manager about the quality and accuracy of the outputs. With the latest release, the processing report has undergone a complete redesign to focus attention on what we have heard our users describe as the most important indicators.

Processing Summary

The new report begins with a Processing Summary section that now includes your Site Scan project name, mission name, and mission type, which can help users identify the mission that the report corresponds to.

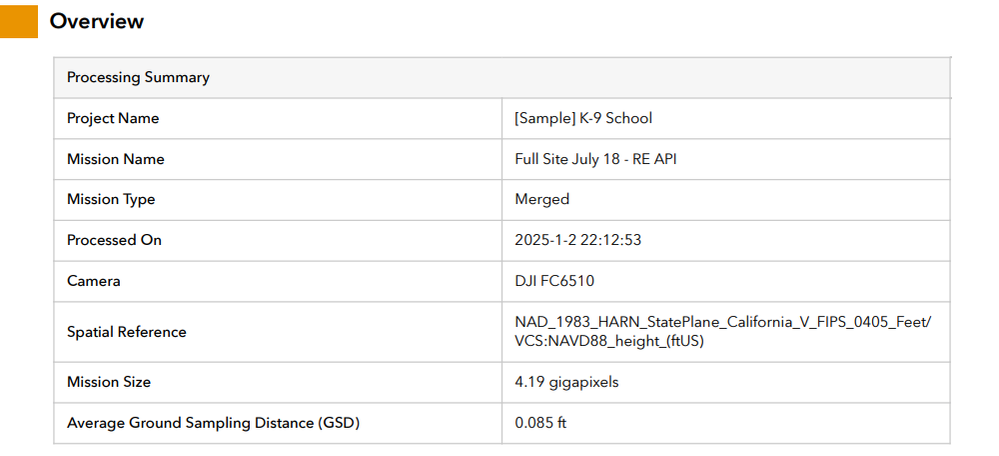

Processing Summary now includes the Site Scan project name, mission name, and mission type.Processing Summary now includes the Site Scan project name, mission name, and mission type.

Quality Checks

The Quality Checks section, originally introduced in the prior report version, provides an at-a-glance assessment of the data processing. It includes key statistics that can highlight possible issues with the data capture, camera calibration, and GCPs. View detailed explanations and quality indicator thresholds in the documentation (link is also available directly on the report).

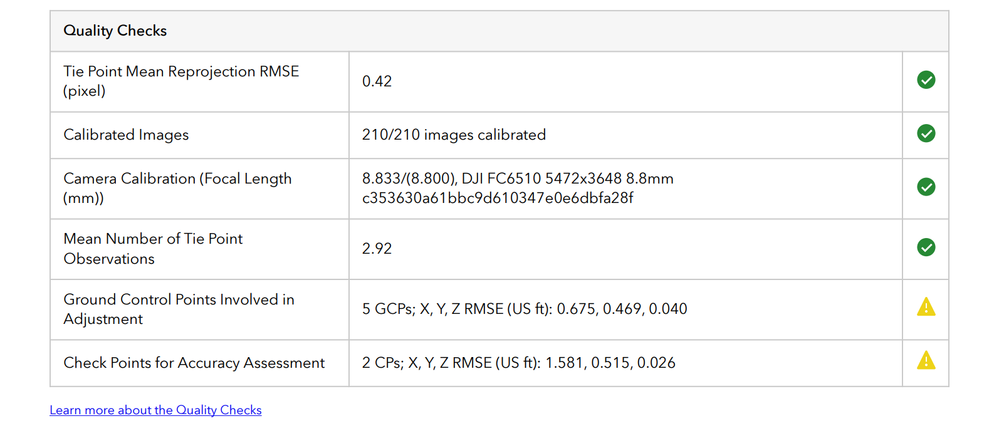

Quality Checks section shows high level indicators of output accuracy and quality and a link to documentation describing the warning thresholds.Quality Checks section shows high level indicators of output accuracy and quality and a link to documentation describing the warning thresholds.

  • Tie Point Mean Reprojection RMSE (pixel): a value larger than 1 pixel could indicate possible issues with camera calibration.
  • Calibrated Images: The number of images that were successfully adjusted during processing. If any images were removed, they will be represented by light blue points on the Initial vs Adjusted Image Positions diagram in the report.
  • Camera Calibration (Focal Length (mm)): The ratio between the initial and optimized focal length of the primary camera during processing.
  • Mean Number of Tie Point Observations: The average number of images that can observe one solution point. This is typically a good indicator of the flight configuration quality such as overlap.
  • Ground Control Points Involved in Adjustment: The number of GCPs used and the RMSE of their X,Y,Z residuals.
  • Check Points for Accuracy Assessment: The number of check points used and the RMSE of their X,Y,Z residuals.

Additional information

The remaining sections of the report are similar to the prior version. Some sections were removed to simplify the report and reduce the need to scroll down many pages to find pertinent information. Additionally, the quality of the diagrams has improved in its colors and resolution.

To view the new report, process a mission and find the Processing Report under the Export menu. You have the option to share the report with others or download a copy to your computer.

The new report in Site Scan v4.207 is just the first of several planned improvements. We are interested in your feedback to learn what statistics and visuals help you most in your assessment of the processing quality. Please submit feedback on Site Scan’s ArcGIS Ideas forum so that we can take these into consideration.
