Hello,
I noticed an issue with creating polygons at the antimeridian and poles, and was hoping someone could weigh in.
Running the below code will create 3 polys, one a normal one to show the geometry we'd expect, one at the antimeridian and one at the south pole.
The antimeridian polygon has stretched itself around the world because the longitude varies from -175 to -179. I can work around this by looking at the min and max longitude, and if they're >180 degrees then add 360 degrees to the negative longitudes. There has to be a better way to do this than that though??
For southpole, the polygon is distorted when viewing in WGS84 which is expected. However changing it to South Pole Stereographic, the polygon still doesn't look as it should.
While diagnosing why the polygon wasn't drawing correctly (it should look like 'normal' in southpole stereographic), I extracted the polygons from the featureclass. It goes into the featureclass with 7 points (including the same start and end point), and comes out with 10, with the start and end different? (the print out of the coordinates is at the bottom of this post).
What is going on here?
import arcpy
WGS84 = arcpy.SpatialReference('WGS 1984')
def add_polygon(fc, name, points):
'''Add a list of points as a polygon to a fc'''
arr = arcpy.Array([arcpy.Point(*coords) for coords in points])
poly = arcpy.Polygon(arr, WGS84)
with arcpy.da.InsertCursor(fc, ['name', 'shape@']) as ic:
ic.insertRow([name, poly])
fc = arcpy.management.CreateFeatureclass(r"D:\testing\unusual_polygons.gdb",
'Poly', 'POLYGON', spatial_reference=WGS84).getOutput(0)
arcpy.management.AddField(fc, 'name', 'TEXT')
normal = ((118.80300158646772, 19.252194904738648),
(120.50339385995798, 29.892985338693542),
(110.69461054882274, 37.16389648579593),
(98.22850425577053, 33.6210697806835),
(97.14850212623087, 22.29703635237555),
(107.74262433198103, 15.063301114735607),
(118.80300148646772, 19.252194904738648))
southpole = ((-179.67438964805672, -73.31022368544396),
(145.24158201971542, -81.29137179020501),
(-34.441802308663334, -87.36469532319619),
(-85.85690989815225, -76.16304283019099),
(-117.65345504349024, -69.3935964899183),
(-148.16871950091263, -68.92995788193983),
(-179.67438964805672, -73.31022368544396))
antimeridian = ((-175.45827111402537, 15.285730312483953),
(179.2171608248945, 5.8899217543138915),
(-176.05696384421353, -3.968796976609585),
(-165.41674992858833, -5.7628604914369195),
(-158.59967491814012, 3.3359348575173495),
(-163.71455965998953, 14.623074892227512),
(-175.45827111402537, 15.285730312483953))
### Add polygons to fc
# Also print the length of each polygon (7 vertices long. This is important)
for name, p in [('normal', normal), ('southpole', southpole), ('antimeridian', antimeridian)]:
print(name, len(p))
add_polygon(fc, name, p)
# Now print the length of each polygon. The polygons started with 7 points, and now they have 10?
with arcpy.da.SearchCursor(fc, ['name', 'shape@']) as sc:
for row in sc:
poly = row[1]
print(name, repr(poly), poly.pointCount)
for part in poly:
for point in part:
print(f' {point.X:19.17} {point.Y:19.17}')
print()

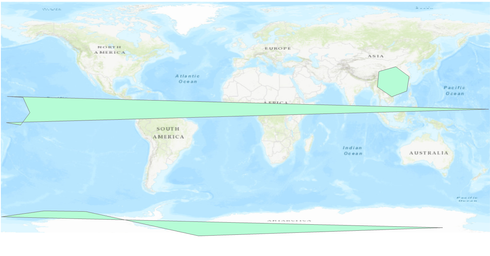

The polygons in WG84.
In polar stereographic. Pole and antimerdian polygons not drawing correctly.
The coords after being added to the featureclass:
normal <Polygon object at 0x2511ff727b8[0x25125b18c38]> 8 118.80300158600005 19.252194905000067 118.80300148600008 19.252194905000067 107.74262433200005 15.063301115000058 97.148502126000039 22.297036352000077 98.228504256000065 33.621069781000074 110.69461054900006 37.163896486000056 120.50339386000007 29.892985339000063 118.80300158600005 19.252194905000067 southpole <Polygon object at 0x2511fc03198[0x2511f66d058]> 10 -88.768273812999951 -75.543216942999948 145.24158202000001 -81.291371789999971 -34.441802308999968 -87.364695322999978 -85.856909897999969 -76.163042829999938 -88.768273812999951 -75.543216942999948 -179.67438964799999 -73.310223684999983 -148.16871950099997 -68.92995788199994 -117.65345504299995 -69.393596489999936 -88.768273812999951 -75.543216942999948 -179.67438964799999 -73.310223684999983 antimeridian <Polygon object at 0x2511ff727b8[0x25125b18c38]> 10 -163.81813172799997 -3.6291741479999473 -165.41674992899996 -5.7628604909999694 -176.05696384399997 -3.968796976999954 -163.81813172799997 -3.6291741479999473 -175.45827111399998 15.285730312000055 179.21716082500006 5.8899217540000564 -163.81813172799997 -3.6291741479999473 -158.59967491799998 3.3359348580000301 -163.71455965999996 14.623074892000034 -175.45827111399998 15.285730312000055
I have tried adding just the south pole poly to a south pole stereographic projected featureclass to see if it's a projection problem, but I get the same output. I tried also using the defense mapping tool 'coordinate table to polygon' but again same issue.
Thanks 🙂

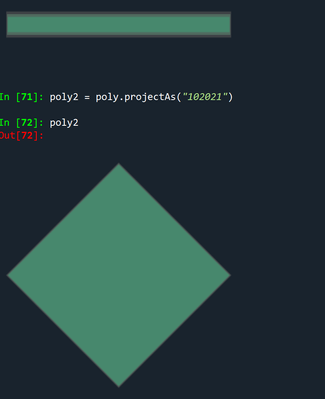

I will just do an example in python arcpy... note the replication on either side of the meridian
p = np.array([[-180.,-90.], [-180., -80.], [-90., -80.], [0., -80.],
[90., -80.], [180., -80.], [180., -90.]])
aa = [Point(*pairs) for pairs in p]
poly = Polygon(Array(aa), "4326")
poly2 = poly.projectAs("102021")
