[ArcPy] GraudatedColorRenderer error: incorrect labels produced

[brusselsboy]

Hi there, I was doing some ArcPy coding (ArcGIS Pro 3.4.2). I was applying GraduatedColorRenderer + Manual + 5 classes + customized colors and labels to a feature layer. Everything of the result was good except the labels, not what I expected from my code (below).

'''
I want to apply the GraudatedColorRenderer to my feature layer using the manual classification method.
I also want to use my own colors and labels for each class.

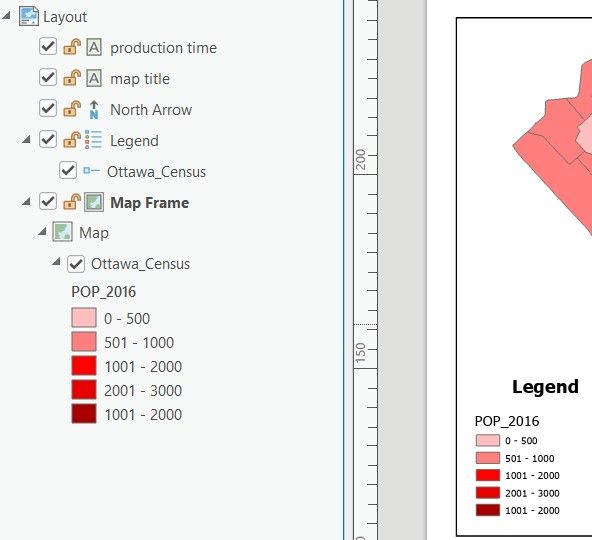

However, the result show different labels and I cannot figure what the problem is.
'''

import arcpy

arcpy.env.overwriteOutput = True

# Obtain the current project and map
project = arcpy.mp.ArcGISProject("CURRENT")
map = project.listMaps("Map")[0]

# Obtain the feature layer
layer = map.listLayers("Ottawa_Census")[0]

# Use GraduatedColorsRenderer
sym = layer.symbology
sym.updateRenderer('GraduatedColorsRenderer')
print('Renderer has been updated to GraudatedColorRenderer')

# Set the classification field, method, and the number of classes
sym.renderer.classificationField = "POP_2016"
sym.renderer.classificationMethod = "Manual"
sym.renderer.breakCount = 5
print('Classification field, method, and breakcount have been set.')

# Customized settings
manual_breaks = [500, 1000, 2000, 3000, 20000]
manual_colors = [
    {'RGB': [255, 190, 190, 100]},
    {'RGB': [255, 127, 127, 100]},
    {'RGB': [255, 0, 0, 100]},
    {'RGB': [230, 0, 0, 100]},
    {'RGB': [168, 0, 0, 100]}
]
manual_labels = [
    "0.0-500",
    "500-1000",
    "1000-2000",
    "2000-3000",
    "3000-20000"
]
print('Breaks, colors, and labels have been set.')

# Apply the above settings
for i, brk in enumerate(sym.renderer.classBreaks):
    brk.label = manual_labels[i]
    brk.symbol.color = manual_colors[i]
    brk.upperBound = manual_breaks[i]


layer.symbology = sym

project.save()
pdf = arcpy.mp.CreateExportFormat('PDF', r'D:\Learning ArcPy\challenge\layout_export.pdf')
project.listLayouts()[0].export(pdf)
print("Task done!")

[TonyAlmeida · Accepted solution]

This works for me, the code applies two-step process that first applies default symbology before modifying breaks and applies symbology after setting breakCount.

# Step 1: First apply default graduated colors
sym = lyr.symbology
sym.updateRenderer('GraduatedColorsRenderer')
sym.renderer.classificationField = "Acres"
sym.renderer.breakCount = 5
lyr.symbology = sym  # This initializes the breaks

# Step 2: Now modify the breaks
sym = lyr.symbology  # Get fresh symbology

# Configure breaks
breaks = [
    (100, "0-100", [255, 190, 190, 100]),
    (200, "100-200", [255, 127, 127, 100]),
    (300, "200-300", [255, 0, 0, 100]),
    (400, "300-400", [230, 0, 0, 100]),
    (500, "400-500", [168, 0, 0, 100])
]

# Apply breaks
for i in range(5):
    sym.renderer.classBreaks[i].upperBound = breaks[i][0]
    sym.renderer.classBreaks[i].label = breaks[i][1]
    sym.renderer.classBreaks[i].symbol.color = {'RGB': breaks[i][2]}
    sym.renderer.classBreaks[i].lowerBound = 0 if i == 0 else breaks[i-1][0]

# Step 3: Final apply
lyr.symbology = sym

print("DONE: Graduated colors applied with 5 manual breaks")

[brusselsboy]

Thank you @TonyAlmeida so much. I have tested your code with my dataset. It worked perfectly. I don't consider using the lowerBound property, as it isn't explicitly listed on the ClassBreak class documentation page.  I think you idea of first applying the GraduatedColorRenderer and then changing it is the key to the solution.

[brusselsboy]

import arcpy
arcpy.env.overwriteOutput = True
project = arcpy.mp.ArcGISProject("CURRENT")
map = project.listMaps("Map")[0]
lyr = map.listLayers("Ottawa_Census")[0]

# Step 1: First apply default graduated colors
sym = lyr.symbology
sym.updateRenderer('GraduatedColorsRenderer')
sym.renderer.classificationField = "POP_2016"
sym.renderer.breakCount = 5
lyr.symbology = sym  # This initializes the breaks

# Step 2: Now modify the breaks
sym = lyr.symbology  # Get fresh symbology
#print(sym.renderer.breakCount)
# Configure breaks
breaks = [                     # I prefer lists to sets but both work.
    [500, "0-500", [255, 190, 190, 100]],
    [1000, "501-1000", [255, 127, 127, 100]],
    [2000, "1001-2000", [255, 0, 0, 100]],
    [3000, "2001-3000", [230, 0, 0, 100]],
    [2000, "3001-20000", [168, 0, 0, 100]]
]

# Apply breaks
for i in range(5):
    sym.renderer.classBreaks[i].upperBound = breaks[i][0]
    sym.renderer.classBreaks[i].label = breaks[i][1]
    sym.renderer.classBreaks[i].symbol.color = {'RGB': breaks[i][2]}

# Step 3: Final apply
lyr.symbology = sym

print("DONE: Graduated colors applied with 5 manual breaks")

project.save()
pdf = arcpy.mp.CreateExportFormat('PDF', r'D:\Learning ArcPy\challenge\layout_export.pdf')
project.listLayouts()[0].export(pdf)
print("Task done!")
