Feature File pop up view.

801
2
08-07-2018 04:14 AM
TabassumPervez
Emerging Contributor

Hello EveryOne ,
I am New on this Platform so please tell me the solution for   display popup on tapped click in Feature layer for WPF
100.3.0.0 sdk .
Description:
i just want to show information just like 10.2.7.0 feature layer tapped click event in WPF solution.

Thanks .

0 Kudos
2 Replies
JenniferNery
Esri Regular Contributor

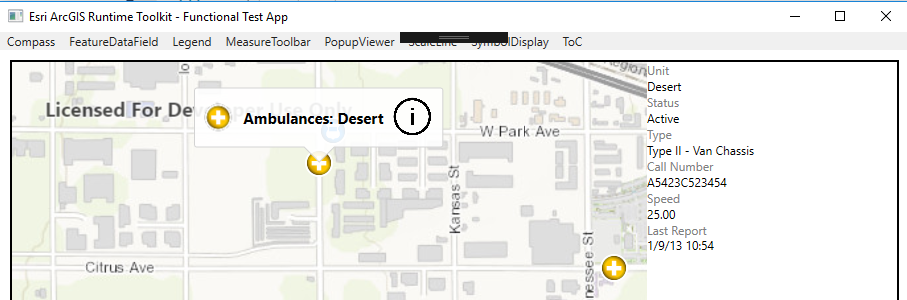

We are still working on a toolkit for this but you should be able to do something like this now with v100.3 providing your own UI. In this sample, we use identify to get to the popup and callout to display basic information on the feature. Once info button is clicked, you can have a viewer that binds to PopupManager properties like DisplayedFields. It's still work in progress but something like this for your UI.

The relevant code that you should be able to use now are these..

        private RuntimeImage PopupImage { get; } = new RuntimeImage(new Uri("pack://application:,,,/Samples/PopupViewer/info.png"));

        private async void mapView_GeoViewTapped(object sender, GeoViewInputEventArgs e)
        {
            try
            {
                var result = await mapView.IdentifyLayersAsync(e.Position, 3, false);
                var popup = GetPopup(result);
                if(popup != null)
                {
                    if (popup.PopupDefinition != null && !popup.PopupDefinition.ShowEditSummary)
                        popup.PopupDefinition.ShowEditSummary = true;

                    var callout = new CalloutDefinition(popup.GeoElement);
                    callout.Tag = popup;
                    callout.ButtonImage = PopupImage;
                    callout.OnButtonClick = new Action<object>((s) =>
                        {
                            popupViewer.Visibility = Visibility.Visible;
                            popupViewer.DataContext = new PopupManager(s as Popup);
                        });
                    mapView.ShowCalloutForGeoElement(popup.GeoElement, e.Position, callout);
                }
                else
                {
                    popupViewer.DataContext = null;
                    popupViewer.Visibility = Visibility.Collapsed;
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message, ex.GetType().Name);
            }
        }

        private Popup GetPopup(IdentifyLayerResult result)
        {
            if (result == null)
            {
                return null;
            }

            var popup = result.Popups.FirstOrDefault();
            if (popup != null)
            {
                return popup;
            }

            var geoElement = result.GeoElements.FirstOrDefault();
            if (geoElement != null)
            {
                if (result.LayerContent is IPopupSource)
                {
                    var popupDefinition = ((IPopupSource)result.LayerContent).PopupDefinition;
                    if (popupDefinition != null)
                    {
                        return new Popup(geoElement, popupDefinition);
                    }
                }

                return Popup.FromGeoElement(geoElement);
            }

            return null;
        }

        private Popup GetPopup(IEnumerable<IdentifyLayerResult> results)
        {
            if (results == null)
            {
                return null;
            }
            foreach (var result in results)
            {
                var popup = GetPopup(result);
                if (popup != null)
                {
                    return popup;
                }

                foreach (var subResult in result.SublayerResults)
                {
                    popup = GetPopup(subResult);
                    if (popup != null)
                    {
                        return popup;
                    }
                }
            }

            return null;
        }

and this, you can certainly improve how you present the fields.

        <ItemsControl x:Name="popupViewer" ItemsSource="{Binding DisplayedFields}">
            <ItemsControl.ItemTemplate>
                <DataTemplate>
                    <Grid>
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto"/>
                            <RowDefinition Height="*"/>
                        </Grid.RowDefinitions>
                        <TextBlock Text="{Binding Field.Label}" Foreground="Gray" />
                        <TextBlock Text="{Binding FormattedValue}" TextWrapping="Wrap" Grid.Row="1"/>
                    </Grid>
                </DataTemplate>
            </ItemsControl.ItemTemplate>
        </ItemsControl>x
0 Kudos
TabassumPervez
Emerging Contributor

Ok. Thanks much appreciated.
