Can I label a points layer perpendicular to a line layer?

400
5
Jump to solution
04-30-2018 05:08 AM
PaulWirth
New Contributor III

I have a points layer (Electrical Transmission structures) and a Transmission line layer. The points layer sits on top of the line layer and because the line layer changes direction all the time it is hard to label the points layer sometimes. What I would like to do is label the points layer perpendicular to the line layer.

Does anyone have an answer for me?

0 Kudos
1 Solution

Accepted Solutions
XanderBakker
Esri Esteemed Contributor

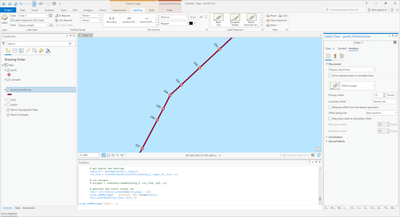

It would be important to know what software you are using (and the version).  Are you using desktop (Pro or ArcMap) or ArcGIS Online?

In case of Desktop, you could create a script to generate a field with the rotation based on the bisector. A few years ago I created a tool to define service areas of transmission tower applying the rotation based on the bisector (the green polygons in the image below):

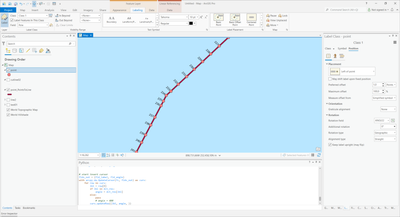

The rotation determined by the tool could be written to the transmission towers and those can be used to define the rotation of the label. See the code below. The angles are determined on lines 51, 73 and 93.

import arcpy

def main():
    import os
    arcpy.env.overwriteOutput = True

    # input fc
    fc = arcpy.GetParameterAsText(0)  # r'C:\...\data.gdb\Torres'
    fld_label = arcpy.GetParameterAsText(1)  # 'LABEL'
    fld_orden = arcpy.GetParameterAsText(2)  # 'orden'
    buf = arcpy.GetParameter(3)  # 20m servidumbre
    fc_out = arcpy.GetParameterAsText(4)  # poligonos de servidumbre

    # spatial reference
    sr = arcpy.Describe(fc).spatialReference

    # dicts, listado para orden
    arcpy.AddMessage('Generar dictionarios con coordenadas, labels y orden...')
    flds = (fld_orden, 'SHAPE@')
    dct_crds = {r[0]: r[1] for r in arcpy.da.SearchCursor(fc, flds)}
    flds = (fld_orden, fld_label)
    dct_lbl = {r[0]: r[1] for r in arcpy.da.SearchCursor(fc, flds)}

    # create list of points and order list
    arcpy.AddMessage('Ordenar torres...')
    lst_ptgs = [pntg for orden, pntg in sorted(dct_crds.items())]
    lst_orden = sorted(dct_crds.keys())

    # create output featureclass
    arcpy.AddMessage('Crear featureclass de salida...')
    ws, fc_name = os.path.split(fc_out)
    arcpy.CreateFeatureclass_management(ws, fc_name, "POLYGON", None, None, None, sr)

    # add fields
    arcpy.AddField_management(fc_out, fld_label, "TEXT", None, None, 50)
    flds_out = ('SHAPE@', fld_label)

    # empty lists for output features
    lst_puntos = []
    lst_lineas = []
    lst_poligonos = []

    # start insert cursor
    arcpy.AddMessage('Recorrer torres...')
    with arcpy.da.InsertCursor(fc_out, flds_out) as curs:

        # first polygon
        if len(lst_ptgs) >= 2:
            pntg_1 = lst_ptgs[0]
            pntg_2 = lst_ptgs[1]
            angle_12 = getAngle(pntg_1, pntg_2)
            cut_line = createPerpendicularCutLine(pntg_1, angle_12, buf, sr)

            # create polygon
            polygon = createServidumbre(pntg_1, cut_line, buf, sr)

            # generate and insert output row
            lbl1 = dct_lbl[lst_orden[0]]
            arcpy.AddMessage(' - procesar: {0}'.format(lbl1))
            curs.insertRow((polygon, lbl1, ))


        # intermediate polygons
        for i in range(1, len(lst_ptgs) - 1):
            # read points
            pntg_a = lst_ptgs[i - 1]
            pntg_1 = lst_ptgs[i]
            pntg_2 = lst_ptgs[i + 1]

            # get angles and bearings
            angle_1a = getAngle(pntg_1, pntg_a)
            angle_12 = getAngle(pntg_1, pntg_2)
            bearing_l = (angle_1a + angle_12) / 2.0

            # create cut lines
            cut_line = createCutLine(pntg_1, bearing_l, buf, sr)

            # cut polygon
            polygon = createServidumbre(pntg_1, cut_line, buf, sr)

            # generate and insert output row
            lbl1 = dct_lbl[lst_orden[i]]
            arcpy.AddMessage(' - procesar: {0}'.format(lbl1))
            curs.insertRow((polygon, lbl1, ))


        # last polygon
        if len(lst_ptgs) >= 2:
            pntg_1 = lst_ptgs[len(lst_ptgs) - 2]
            pntg_2 = lst_ptgs[len(lst_ptgs) - 1]

            # get angles and bearings
            angle_21 = getAngle(pntg_2, pntg_1)
            cut_line = createPerpendicularCutLine(pntg_2, angle_21, buf, sr)

            # cut polygon
            polygon = createServidumbre(pntg_2, cut_line, buf, sr)

            # generate and insert output row
            lbl1 = dct_lbl[lst_orden[len(lst_ptgs) - 2]]
            arcpy.AddMessage(' - procesar: {0}'.format(lbl1))
            curs.insertRow((polygon, lbl1, ))

    arcpy.AddMessage('Listo...')


def createServidumbre(pntg, cut_line, servidumbre, sr):
    '''
    Create rectangle using the cutline
    and the size of the servidumbre
    '''


    angle_cut_line = getAngleLine(cut_line)
    tmp_pntg1 = pntg.pointFromAngleAndDistance(angle_cut_line, servidumbre / 2.0, 'PLANAR')
    tmp_pntg2 = pntg.pointFromAngleAndDistance(angle_cut_line + 180, servidumbre / 2.0, 'PLANAR')

    # create corner points
    pntg1a = tmp_pntg1.pointFromAngleAndDistance(angle_cut_line - 90, servidumbre / 2.0, 'PLANAR')
    pntg1b = tmp_pntg1.pointFromAngleAndDistance(angle_cut_line + 90, servidumbre / 2.0, 'PLANAR')
    pntg2a = tmp_pntg2.pointFromAngleAndDistance(angle_cut_line + 90, servidumbre / 2.0, 'PLANAR')
    pntg2b = tmp_pntg2.pointFromAngleAndDistance(angle_cut_line - 90, servidumbre / 2.0, 'PLANAR')

    polygon = arcpy.Polygon(arcpy.Array([pntg1a.firstPoint, pntg1b.firstPoint,
        pntg2a.firstPoint, pntg2b.firstPoint, pntg1a.firstPoint]), sr)

    return polygon


def getAngleLine(line):
    pntg1 = arcpy.PointGeometry(line.firstPoint, line.spatialReference)
    pntg2 = arcpy.PointGeometry(line.lastPoint, line.spatialReference)
    return getAngle(pntg1, pntg2)


def createPerpendicularCutLine(pntg, angle, dist, sr):
    pntg_cut_1 = pntg.pointFromAngleAndDistance(angle - 90, dist * 2.0, 'PLANAR')
    pntg_cut_2 = pntg.pointFromAngleAndDistance(angle + 90, dist * 2.0, 'PLANAR')
    cut_line = arcpy.Polyline(arcpy.Array([pntg_cut_1.firstPoint, pntg_cut_2.firstPoint]), sr)
    return cut_line


def createCutLine(pntg, bearing1, buf, sr):
    bearing2 = bearing1 + 180
    pntg_cut_1 = pntg.pointFromAngleAndDistance(bearing1, buf * 10.0, 'PLANAR')
    pntg_cut_2 = pntg.pointFromAngleAndDistance(bearing2, buf * 10.0, 'PLANAR')
    cut_line = arcpy.Polyline(arcpy.Array([pntg_cut_1.firstPoint, pntg_cut_2.firstPoint]), sr)
    return cut_line


def createLine(pntg1, pntg2, sr):
    return arcpy.Polyline(arcpy.Array([pntg1.firstPoint, pntg2.firstPoint]), sr)


def getAngle(pntg1, pntg2):
    return pntg1.angleAndDistanceTo(pntg2, method='PLANAR')[0]


if __name__ == '__main__':
    main()

View solution in original post

5 Replies
XanderBakker
Esri Esteemed Contributor

It would be important to know what software you are using (and the version).  Are you using desktop (Pro or ArcMap) or ArcGIS Online?

In case of Desktop, you could create a script to generate a field with the rotation based on the bisector. A few years ago I created a tool to define service areas of transmission tower applying the rotation based on the bisector (the green polygons in the image below):

The rotation determined by the tool could be written to the transmission towers and those can be used to define the rotation of the label. See the code below. The angles are determined on lines 51, 73 and 93.

import arcpy

def main():
    import os
    arcpy.env.overwriteOutput = True

    # input fc
    fc = arcpy.GetParameterAsText(0)  # r'C:\...\data.gdb\Torres'
    fld_label = arcpy.GetParameterAsText(1)  # 'LABEL'
    fld_orden = arcpy.GetParameterAsText(2)  # 'orden'
    buf = arcpy.GetParameter(3)  # 20m servidumbre
    fc_out = arcpy.GetParameterAsText(4)  # poligonos de servidumbre

    # spatial reference
    sr = arcpy.Describe(fc).spatialReference

    # dicts, listado para orden
    arcpy.AddMessage('Generar dictionarios con coordenadas, labels y orden...')
    flds = (fld_orden, 'SHAPE@')
    dct_crds = {r[0]: r[1] for r in arcpy.da.SearchCursor(fc, flds)}
    flds = (fld_orden, fld_label)
    dct_lbl = {r[0]: r[1] for r in arcpy.da.SearchCursor(fc, flds)}

    # create list of points and order list
    arcpy.AddMessage('Ordenar torres...')
    lst_ptgs = [pntg for orden, pntg in sorted(dct_crds.items())]
    lst_orden = sorted(dct_crds.keys())

    # create output featureclass
    arcpy.AddMessage('Crear featureclass de salida...')
    ws, fc_name = os.path.split(fc_out)
    arcpy.CreateFeatureclass_management(ws, fc_name, "POLYGON", None, None, None, sr)

    # add fields
    arcpy.AddField_management(fc_out, fld_label, "TEXT", None, None, 50)
    flds_out = ('SHAPE@', fld_label)

    # empty lists for output features
    lst_puntos = []
    lst_lineas = []
    lst_poligonos = []

    # start insert cursor
    arcpy.AddMessage('Recorrer torres...')
    with arcpy.da.InsertCursor(fc_out, flds_out) as curs:

        # first polygon
        if len(lst_ptgs) >= 2:
            pntg_1 = lst_ptgs[0]
            pntg_2 = lst_ptgs[1]
            angle_12 = getAngle(pntg_1, pntg_2)
            cut_line = createPerpendicularCutLine(pntg_1, angle_12, buf, sr)

            # create polygon
            polygon = createServidumbre(pntg_1, cut_line, buf, sr)

            # generate and insert output row
            lbl1 = dct_lbl[lst_orden[0]]
            arcpy.AddMessage(' - procesar: {0}'.format(lbl1))
            curs.insertRow((polygon, lbl1, ))


        # intermediate polygons
        for i in range(1, len(lst_ptgs) - 1):
            # read points
            pntg_a = lst_ptgs[i - 1]
            pntg_1 = lst_ptgs[i]
            pntg_2 = lst_ptgs[i + 1]

            # get angles and bearings
            angle_1a = getAngle(pntg_1, pntg_a)
            angle_12 = getAngle(pntg_1, pntg_2)
            bearing_l = (angle_1a + angle_12) / 2.0

            # create cut lines
            cut_line = createCutLine(pntg_1, bearing_l, buf, sr)

            # cut polygon
            polygon = createServidumbre(pntg_1, cut_line, buf, sr)

            # generate and insert output row
            lbl1 = dct_lbl[lst_orden[i]]
            arcpy.AddMessage(' - procesar: {0}'.format(lbl1))
            curs.insertRow((polygon, lbl1, ))


        # last polygon
        if len(lst_ptgs) >= 2:
            pntg_1 = lst_ptgs[len(lst_ptgs) - 2]
            pntg_2 = lst_ptgs[len(lst_ptgs) - 1]

            # get angles and bearings
            angle_21 = getAngle(pntg_2, pntg_1)
            cut_line = createPerpendicularCutLine(pntg_2, angle_21, buf, sr)

            # cut polygon
            polygon = createServidumbre(pntg_2, cut_line, buf, sr)

            # generate and insert output row
            lbl1 = dct_lbl[lst_orden[len(lst_ptgs) - 2]]
            arcpy.AddMessage(' - procesar: {0}'.format(lbl1))
            curs.insertRow((polygon, lbl1, ))

    arcpy.AddMessage('Listo...')


def createServidumbre(pntg, cut_line, servidumbre, sr):
    '''
    Create rectangle using the cutline
    and the size of the servidumbre
    '''


    angle_cut_line = getAngleLine(cut_line)
    tmp_pntg1 = pntg.pointFromAngleAndDistance(angle_cut_line, servidumbre / 2.0, 'PLANAR')
    tmp_pntg2 = pntg.pointFromAngleAndDistance(angle_cut_line + 180, servidumbre / 2.0, 'PLANAR')

    # create corner points
    pntg1a = tmp_pntg1.pointFromAngleAndDistance(angle_cut_line - 90, servidumbre / 2.0, 'PLANAR')
    pntg1b = tmp_pntg1.pointFromAngleAndDistance(angle_cut_line + 90, servidumbre / 2.0, 'PLANAR')
    pntg2a = tmp_pntg2.pointFromAngleAndDistance(angle_cut_line + 90, servidumbre / 2.0, 'PLANAR')
    pntg2b = tmp_pntg2.pointFromAngleAndDistance(angle_cut_line - 90, servidumbre / 2.0, 'PLANAR')

    polygon = arcpy.Polygon(arcpy.Array([pntg1a.firstPoint, pntg1b.firstPoint,
        pntg2a.firstPoint, pntg2b.firstPoint, pntg1a.firstPoint]), sr)

    return polygon


def getAngleLine(line):
    pntg1 = arcpy.PointGeometry(line.firstPoint, line.spatialReference)
    pntg2 = arcpy.PointGeometry(line.lastPoint, line.spatialReference)
    return getAngle(pntg1, pntg2)


def createPerpendicularCutLine(pntg, angle, dist, sr):
    pntg_cut_1 = pntg.pointFromAngleAndDistance(angle - 90, dist * 2.0, 'PLANAR')
    pntg_cut_2 = pntg.pointFromAngleAndDistance(angle + 90, dist * 2.0, 'PLANAR')
    cut_line = arcpy.Polyline(arcpy.Array([pntg_cut_1.firstPoint, pntg_cut_2.firstPoint]), sr)
    return cut_line


def createCutLine(pntg, bearing1, buf, sr):
    bearing2 = bearing1 + 180
    pntg_cut_1 = pntg.pointFromAngleAndDistance(bearing1, buf * 10.0, 'PLANAR')
    pntg_cut_2 = pntg.pointFromAngleAndDistance(bearing2, buf * 10.0, 'PLANAR')
    cut_line = arcpy.Polyline(arcpy.Array([pntg_cut_1.firstPoint, pntg_cut_2.firstPoint]), sr)
    return cut_line


def createLine(pntg1, pntg2, sr):
    return arcpy.Polyline(arcpy.Array([pntg1.firstPoint, pntg2.firstPoint]), sr)


def getAngle(pntg1, pntg2):
    return pntg1.angleAndDistanceTo(pntg2, method='PLANAR')[0]


if __name__ == '__main__':
    main()

View solution in original post

PaulWirth
New Contributor III

Desktop 10.5.1 or ArcGIS Pro 2.1.1

I am not a big time programmer.

0 Kudos
XanderBakker
Esri Esteemed Contributor

Is it possible for you to share a sample of the data? I could have a look if I can adjust the script to what you need. The result would be an additional field with the rotation in the point layer.

0 Kudos
PaulWirth
New Contributor III

I have to look into it, but it might be possible. Which layer do you want? Points or Lines.

0 Kudos
XanderBakker
Esri Esteemed Contributor

It could (or should) be both. Or if the points follow the order (sequence) of the line one could determine the angles of the lines based on only the points. Otherwise, one has to determine the angles of both line parts based on the line. It also matter is the line is a single line, or each segment from tower to tower is a feature. Would be could to see the data to understand those aspects, since it determines how the code should be changed.

0 Kudos
