XY coordinates do not align with Shapefile

3947
9
Jump to solution
09-02-2014 10:00 AM
Highlighted
New Contributor II

I´ve been trying to fit XY coordinates with a shapefile.

So far, I've tried everything posted on previous discussions and forums, but had no success.

The GCS from my excel file is unknown (the sheet that I've been working with is "Delitos_Cabina" and it refers to crime incidents in Zapopan, a city in Jalisco, Mexico).



The GCS from my shapefile is ITRF_1992.



Could someone help me out with this?



Even if I define the GCS from the shapefile, it does not align.

Thanks in advance.
Guillermo

Reply
0 Kudos
1 Solution

Accepted Solutions
Highlighted
Occasional Contributor II

This is what I did but please note that I am not guaranteeing this is the right answer, this is just based on my guess of the point data.

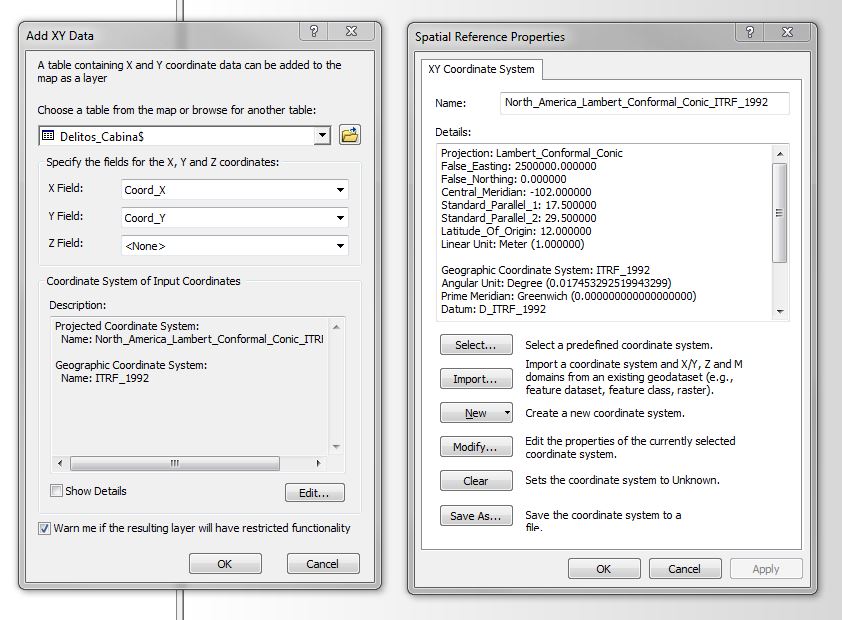

  1. Click File > Add Data > Add XY Data. and when the window pops up it will look like the image on the left, Then go to Edit button at the bottom, then a new window will pop up, like the one on the right, then hit Select. A new window will show up and then Navigate to Projected Coordinate Systems>UTM>Nad 1983>and select NAD 1983 UTM Zone 13N.prj. Hit OK all the way through and your points will look like mine.

  1. Capture2.JPG

View solution in original post

9 Replies
Highlighted
MVP Esteemed Contributor

Guillermo-  the best way to post shapefiles is to zip all the components (shp, prj, shx, dbf) in one zip file.

That said, here are a couple of things to consider:  GCS stands for Geographic Coordinate System.  This is not truly a projection but rather what I would call a grid of convenience and the units are in Degrees of Latitude and Longitude.

I took a look in google for ITRF_92 and found the following older forum post on it:  GCS_ITRF_92 - How Do i Project This?

Hope this helps-

Reply
0 Kudos
Highlighted
New Contributor II

Thank you very much for your answer.

Indeed, I am working with shapefiles from INEGI (Mexico's National Statistics and Geography Institute).
But my problem is not with the ITRF_92 itself, but with how do I manage to coincide both layers.

Even if I define the GCS from the excel file according to INEGI's layer, they don't match.

Here is what I've been doing:
First I import the shapefile and then the excel table.
Then, I Add XY Data and define the Coordinate System of Input Coordinates according to the shapefile description.
Nevertheless, they don't match.

I've also tried to switch XY coordinates, but the result is still the same.

Thanks
G

Reply
0 Kudos
Highlighted
Occasional Contributor II

Just a though, I have looked at the excel spreadsheet and just based on the coordinates (and I know this is not the best way to determine what coordinate system you are working with) it seems like this is in UTM. After checking out online, this area of Mexico is in Zone 13. So when I defined them as UTM NAD83 zone 13, this is what I get. Tough to know for sure but it's an idea.Capture.JPG

Reply
0 Kudos
Highlighted
New Contributor II

I know this is too much to ask, but could you explain to me step by step what did you do?

I defined both layers as you suggested, but the result wasn't the same.
In my case they still don't match. It must be something that I'm doing wrong (or not doing properly).

Thank you soooo much.

Reply
0 Kudos
Highlighted
Occasional Contributor II

This is what I did but please note that I am not guaranteeing this is the right answer, this is just based on my guess of the point data.

  1. Click File > Add Data > Add XY Data. and when the window pops up it will look like the image on the left, Then go to Edit button at the bottom, then a new window will pop up, like the one on the right, then hit Select. A new window will show up and then Navigate to Projected Coordinate Systems>UTM>Nad 1983>and select NAD 1983 UTM Zone 13N.prj. Hit OK all the way through and your points will look like mine.

  1. Capture2.JPG

View solution in original post

Highlighted
New Contributor II

Thank you soooooooo much for all your help.
I've finally been able to fit both layers. I'm almost sure you're guess is right because when I added the other layers, all the points coincided.

One more thing, how did you identify in which part of Mexico this is located? (I mean how were you able to determine that this was in Zone 13?)

All the best
G

Reply
0 Kudos
Highlighted
MVP Esteemed Contributor

If you google utm zones or utm zones mexico, you find what you need

Reply
0 Kudos
Highlighted
Occasional Contributor II

Glad that worked for you. I did a quick search online for the UTM zones in Mexico and came up with this document

http://www.uabcs.mx/geologia/geo_bajamx/sig/zonas_utm.pdf

and also double checked with this file that contains all the UTM zones in the world

https://community.esri.com/inbox?objectType=2&objectID=401487

Reply
0 Kudos
Highlighted
MVP Esteemed Contributor

Also- you may want to take a look at:

http://downloads2.esri.com/support/documentation/ao_/710Understanding_Map_Projections.pdf

This explains projections better than anything else out there.
