ArcGIS Diagrammer page extents problem

1764
1
Jump to solution
11-03-2014 10:48 AM
Highlighted
New Contributor

I've found evidence online illustrating that others are having the same issues as I have with ArcGIS Diagrammer but not any solutions. So, I figured I'd ask again.



I keep having problems with being unable to resize or move items beyond a certain extent within the design window. For example, I have a feature class with dozens of fields, but now it has reached a size on the page where I can no longer make it larger, so I can't see new fields I've added on the page. Also, I can only drag objects so far in the window before the program won't let me go farther.



I'm running ArcGIS 10.2.2 on Windows 7 (x64)



Any thoughts/solutions?

Tags (1)
Reply
0 Kudos
1 Solution

Accepted Solutions
Highlighted
Occasional Contributor III

Hi Ken,

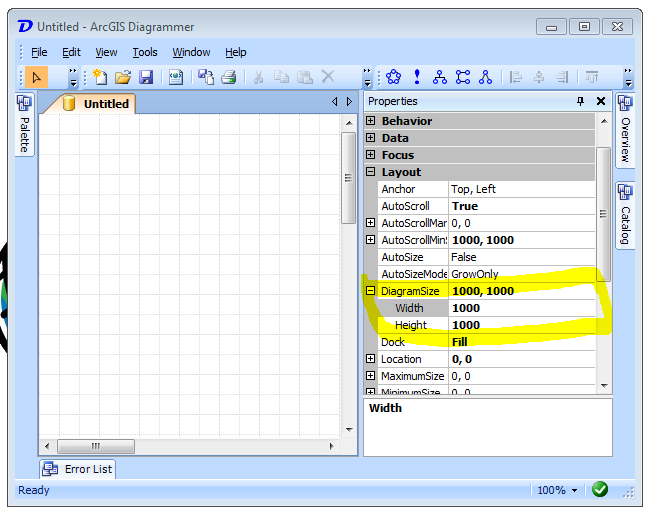

Have you tried increasing the size of the diagram?  Please see the highlighted properties below used to increase the diagramming area.
