Issue with Spatial Adjustment of Geometric Network in ArcMap

[Kristofer]

Hi All,

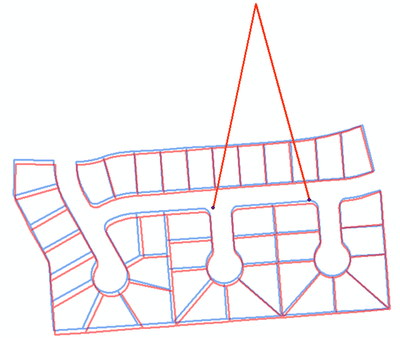

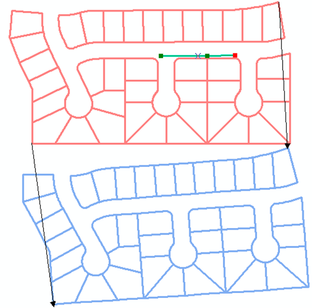

I am trying to do spatial adjustment between two datasets as shown in the figure below. The Pipe selected line is part of a Geometric Network. It has three vertices.

When I perform the spatial Adjustment, the Two end vertices goes where they should go but the middle vertex stays where it was before. In some other cases I observed, the entire segment stayed in its initial place without making a movement.

Please help me to resolve the issue.

Thanks & Regards,

Sunita

[sjones_esriau]

Hi
Spatial adjustment will on adjust the junction nodes in a geometric network. You'll need to tun on the editing  'stretch proportional' setting to help preserve the shape of the line in this case.

Further explained: https://desktop.arcgis.com/en/arcmap/latest/manage-data/editing-existing-features/about-spatial-adju...
