How to do 3d building model visibility analysis

440
1
12-22-2020 06:30 PM
Labels (1)
HoiWaiCheung
New Contributor

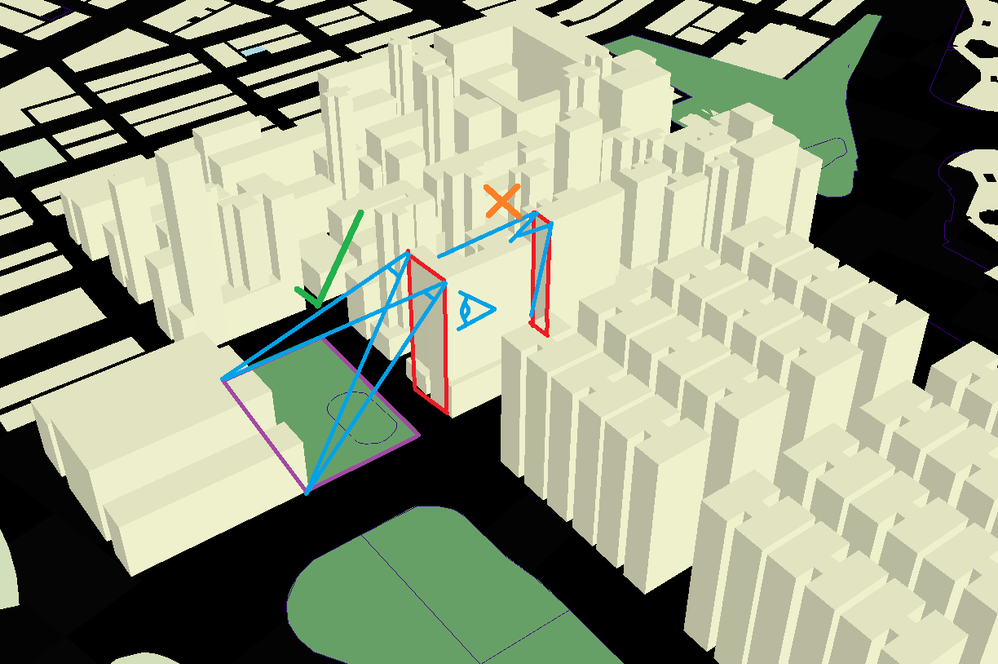

I have created a 3D model in ArcScene. (Giving Z-coordinate to polygon to create 3D shape)




I want to do a 3D analysis to the model to see how many of the building surface area have a clear view on the park nearby. But I realized in the TOOL section, all visibility analysis method (the line of sight ) could only do a single observer point to target (point, line, area).


Is there anyway to analysis the model base on the surface area as observer instead of point. Or, could I set up a something to tell the analysis to generate multiple observer point on every building surface (Let say every 2 meter width and height, generate a observer point), then procced the 3D visibility analysis for all building automatically?

0 Kudos
1 Reply
OsmanNKURUNZIZA1
New Contributor

Hello @HoiWaiCheung

Did you find any solutions about this issue for visibility analysis to use observer area based instead of a point. Because i have the same issue that i want to analyze. Thank you
