Re: Downstream Trace Crossing into Another Subnetwork and Failing with ERROR 001890
217
1
3 weeks ago
by
Hi @RobertKrisher Some time has passed, and I was able to solve the issue with a different approach. I developed a script that automatically places a barrier whenever the trace reaches a Subnetwork Controller point. This script now works exactly as I wanted within the ArcGIS Pro interface.
import arcpy
import re
# ------------------------------------------------------------
# URL
# ------------------------------------------------------------
utility_network = "https://---/server/rest/services/Trace/FeatureServer/8"
# Starting Points - FeatureServer/0
starting_points = "https://---/server/rest/services/Start_Points/FeatureServer/0"
# Barriers - FeatureServer/1
barriers = "https://---/server/rest/services/Start_Points/FeatureServer/1"
# Electric Device (Subnetwork Controller) - FeatureServer/0
controller_fc = "https://---/server/rest/services/Trace/FeatureServer/0"
# ------------------------------------------------------------
# CLEAR BARRIER
# ------------------------------------------------------------
print("Clear Barrier")
with arcpy.da.UpdateCursor(barriers, ["OBJECTID"]) as cur:
for row in cur:
cur.deleteRow()
print("Barrier Cleared")
# ------------------------------------------------------------
# GET STARTING POINT GUID
# ------------------------------------------------------------
start_guid = None
with arcpy.da.SearchCursor(starting_points, ["FEATUREGLOBALID"]) as cur:
for row in cur:
start_guid = row[0]
break
if not start_guid:
raise Exception("No starting point found.")
print("Starting GUID :", start_guid)
# ------------------------------------------------------------
# TRACE
# ------------------------------------------------------------
def run_trace():
arcpy.un.Trace(
in_utility_network=utility_network,
starting_points=starting_points,
barriers=barriers,
trace_config_name="{31407091-970B-4B14-BF68-F8C25B1349D6}",
related_record_fields=None,
result_fields=None
)
# ------------------------------------------------------------
# GUID -> OBJECTID
# ------------------------------------------------------------
def get_objectid_from_guid(guid_value):
guid_clean = guid_value.replace("{", "").replace("}", "")
where = f"GLOBALID = '{{{guid_clean}}}'"
with arcpy.da.SearchCursor(controller_fc, ["OBJECTID"], where) as cur:
for row in cur:
return row[0]
return None
# ------------------------------------------------------------
# BARRIER INSERT
# ------------------------------------------------------------
def insert_barrier(target_guid):
oid = get_objectid_from_guid(target_guid)
if oid is None:
raise Exception("OBJECTID bulunamadi.")
fields = [
"FEATUREOID",
"FEATUREGLOBALID",
"LAYERID",
"SOURCEID",
"ASSETGROUPCODE",
"ASSETTYPE",
"TERMINALID",
"PERCENTALONG",
"ISFILTERBARRIER"
]
values = [
oid,
target_guid,
200,
9,
85,
363,
4,
-1,
0
]
with arcpy.da.InsertCursor(barriers, fields) as icur:
icur.insertRow(values)
print("Barrier added", target_guid)
# ------------------------------------------------------------
#
# ------------------------------------------------------------
try:
print("The first trace is being tested...")
run_trace()
print("Trace successful.")
except arcpy.ExecuteError:
msg = arcpy.GetMessages(2)
print(msg)
if "multiple subnetwork controllers" in msg.lower():
guids = re.findall(r'\{[0-9A-Fa-f\-]{36}\}', msg)
if len(guids) < 2:
raise Exception("GUID not found.")
start_guid_clean = "{" + str(start_guid).replace("{", "").replace("}", "") + "}"
other_guid = None
for g in guids:
if g.upper() != start_guid_clean.upper():
other_guid = g
break
if not other_guid:
raise Exception(" controller GUID not found.")
print("Barrier adding:", other_guid)
insert_barrier(other_guid)
print("Trace is working again...")
run_trace()
print("Trace successful")
else:
raise Exception("Unexpected Trace error: " + str(msg))
print("\n=== TRANSACTION COMPLETE ===")I would like to ask for guidance about a Utility Network trace automation workflow.
- A user places a starting point on the map.
- The script runs a Trace operation.
- If the trace returns the following error:
ERROR 001890: Invalid subnetwork connectivity, multiple subnetwork controllers with different subnetwork names found.- The script reads the error message and extracts the two GlobalIDs listed in the message.
- It compares them with the starting point GlobalID.
- It automatically creates a barrier point on the other GlobalID (not the starting point).
- The same trace is executed again.
- On the second run, the trace completes successfully without error.
So overall, the script acts as an automatic workaround for controller conflicts and it runs correctly inside ArcGIS Pro.
My Problem
I now want to publish this script as a Geoprocessing Tool / Share as Web Tool so I can use it inside Experience Builder.

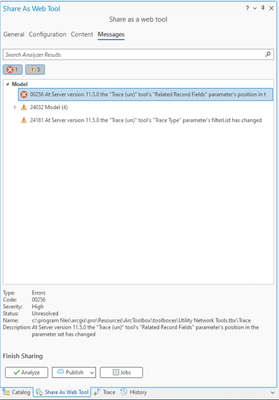

However, during publishing I receive this error:
at the server version 11.5 the related record fields parameters position in the parameter set has changedAccording to Esri documentation, related_record_fields is not a required parameter. I still explicitly added that parameter in the script, but the publishing error remains.
My Goal
My final goal is to run this custom trace logic inside Experience Builder through a Geoprocessing widget.
My Questions
- Is publishing a Python script with arcpy.un.Trace() as a Web Tool the correct architecture for this scenario?
- Is there a better approach for Experience Builder (for example calling the Utility Network REST trace endpoint directly)?
- Has anyone seen this publishing error with ArcGIS Enterprise 11.5 and Utility Network trace tools?
Any guidance would be greatly appreciated.
