Survey123 Repeats and Geopoint

[KathyFulton]

I have created a survey to capture details about resources available at a particular location. I have basic information (organization, contact, etc) outside of the repeat, then within the repeat I ask for the location (using geopoint) and specific characteristics about that location.

The items within the repeat are shown at the proper location on the resulting map, but the data outside of the repeat is showing at (0,0). Is there a way to not have the data outside of the repeat use the location collected on each of the repeats? The data outside of the repeat doesn't change, so I don't want users to have to re-enter it each time, but it should be located at the same spot as the data within the repeat.

Thanks

Kathy F

type	name	label
note	generated_note_form_title	<p style="text-align:start;">Maui Fires 2023 - Logistics Assets and Resources</p>
note	generated_note_form_submit_text	Submit
note	generated_note_form_footer	<a target='_blank' style='color:#000000;' href='https://www.esri.com/products/survey123'>Powered by ArcGIS Survey123</a>
note	generated_note_prompt_submitted	<p style="text-align:center;"><br></p><p style="text-align:center;"><img alt="Green check icon" src="data&colon;image/svg+xml;base64,PHN2ZyB3aWR0aD0iNjQiIGhlaWdodD0iNjQiIHhtbG5zPSJodHRwOi8vd3d3LnczLm9yZy8yMDAwL3N2ZyI+PGcgZmlsbD0ibm9uZSIgZmlsbC1ydWxlPSJldmVub2RkIj48Y2lyY2xlIGZpbGw9IiMzMTg3MkUiIGN4PSIzMiIgY3k9IjMyIiByPSIzMiIvPjxwYXRoIGZpbGw9IiNGRkYiIGQ9Ik0yMi42NjEgMzAuMjQ2bDUuMTgyIDQuOTg3TDQxLjU1MiAyMiA0NSAyNS40NjEgMjcuNzQ3IDQyIDE5IDMzLjQ5OHoiLz48L2c+PC9zdmc+"></p><p style="text-align:center;"><br></p><p style="text-align:center;"><br></p><p style="text-align:center;"><strong style="font-size:16px;">Thank you.</strong></p><p style="text-align:center;"><strong style="font-size:16px;">Your response was submitted successfully.</strong></p><p style="text-align:center;"><br></p><p style="text-align:center;"><span style="font-size:16px;">Contact <a href="https://www.alanaid.org/contact/" target="_blank">American Logistics Aid Network</a> for information.</p>
note	organization_and_contact_inform	Organization and Contact Information
text	org_name	What is the name of your organization?
text	org_url	What is your organization's website address?
text	org_poc	Who is the point of contact for these resources?
text	poc_email	What is the contact's email address?
text	poc_phone	Phone Number
begin repeat	resourcesurvey	Add your locations and assets (click + to add more locations)
note	asset_resource_information_deta	Logistics Resource Details
geopoint	resource_primary_location	What location are you reporting on?
select_multiple list_asset_resource_information_deta_asset_type1	asset_type1	What type of asset / resource are you offering?
text	offer_type_other	Other
select_one list_asset_resource_information_deta_donation_or_paid_offer	donation_or_paid_offer	Donation or Paid Offer
text	offer_paid_other	Other
text	resource_description	Description of the resource or capability
end repeat
text	additional_information	Additional Information
dateTime	date_and_time_submitted	Date and Time Submitted

[AaronPDXPaul]

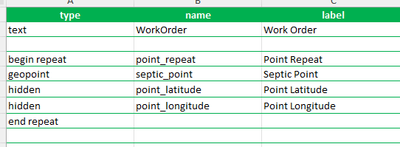

Here's my Excel.

I am willing to do this any way it can be done.

How can the Parent not be at (0,0)?

Thank you

[DougBrowning]

Do you have a geopoint question in the parent at all?  You should

[AaronPDXPaul]

Can you provide an example of how I would do that? You are correct. There's no geopoint question for the parent. I am missing something maybe simple. Thank you again

[DougBrowning]

Well that is why you are getting the 0,0 then.  You need to add a geopoint to the parent.  With no question there it will default to 0,0 as you are seeing.  In general you always want a geopoint question.

[AaronPDXPaul]

Hi Doug.

Please see my Excel. We really appreciate your help

[DougBrowning]

Sorry just say this.  Simply add a geopoint to the parent section.

[EmilySpeck]

How do you inherit the parent geopoint?

[DougBrowning]

@EmilySpeck  You can just add the name of the parent geopoint into the calculation of the child geopoint I think.  Just like any other field.  Give it a try

[EmilySpeck]

I think I am having a issue with my pulldata calculation. I am using a CSV file to pull the information. It is reading the coordinates on Connect, but on AGOL it is reading (0,0). I attached a screenshot of my Connect form.

The CSV file is link media to my Connect, do I have to upload the file to AGOL as well?

[DougBrowning]

It could be the order of operations as the web can be different.  So its trying the repeat geopoint before pulldata loads.  Try putting a relevant on the geopoint in the repeat that makes sure the parent geopoint is not empty.

May have to try != "" and if not try string-length > 0

If that does not work try a relevant tied to one of the pulldata fields.

I would turn off hidden for now to see what its getting and when.  Always good for testing to see the values and hide later.

Hope that does it.
