Using URLs to open Survey123 from Collector or Explorer pop-ups is a popular integration. There are a couple of limitations that are present due to the pop-up being designed primarily to produce text that a person reads:
- Number formatting is localized based on the user's language and locale settings. This can cause issues if a user's locale uses a comma as the decimal separator (like most of continental Europe and South America) or includes grouping characters (for example, the thousands comma separator in English).
- Dates are displayed as localized text.
- Text may include characters like spaces or ampersands (&) which interfere with the ability to process a URL.
- You can't access the feature's geometry information to pass into Survey123.
One way to address these limitations is to use ArcGIS Arcade to generate the URL. Arcade is a general scripting language that can be used to create custom information in a pop-up, among other tasks.
The Basics: Using the UrlEncode function
The first Arcade function to know is the UrlEncode function. Using this function will:
- Provide a standard data representation of numbers and dates
- Encode special characters so that they can be used in URLs
- Automatically join parameters together with ampersands

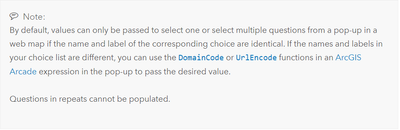

The pattern is to create a dictionary (object) of parameter:value with all the URL parameters you want to include. This will likely include itemId (the form you want to open), field:<question_name> (to populate a question with data), center (to specify a point geometry - more on this below!). Earlier this year, Survey123 also added several new URL parameters, including allowing a user to open an existing record for editing. Visit the URL Parameters documentation to learn more!
The UrlEncode function creates the parameters that occur after the question mark (?) in a URL; you need to join it with the URL's first part that specifies which application to open (arcgis-survey123:// or https://survey123.arcgis.app for the Survey123 field app; https://survey123.arcgis.com/share/<itemId> for the web app). Here's an example of an arcade function to create a full URL to open a form:
var urlsource ='arcgis-survey123://?';
var params = {
itemID:'36ff9e8c13e042a58cfce4ad87f55d19',
center: '43.567,-117.380'
};
return urlsource + UrlEncode(params);
This will return
arcgis-survey123://?center=43.567%2C-117.380&itemID=36ff9e8c13e042a58cfce4ad87f55d19

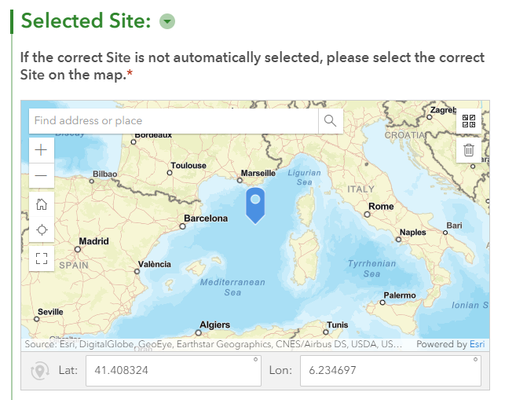

Accessing feature Information (attributes & geometry)
Arcade also provides access to the pop-up's feature, including both attributes and geometry. If the feature is a point, that allows us to get the x and y values without needing them to be stored in the attribute table
Field values $feature["asset_id"]
X/Y values Geometry($feature).x
Note that the x and y values will be in the map's spatial reference; Survey123 requires WGS84 latitude/longitude. Esri's default basemaps use the Web Mercator projection; you will need to convert the values:
function WebMercatorToWGS84 (x, y) {
var lon = (x / 20037508.34) * 180;
var lat = (y / 20037508.34) * 180;
lat = 180/PI * (2 * Atan(Exp(lat * PI / 180)) - PI / 2);
return {
y: lat,
x: lon
}
}

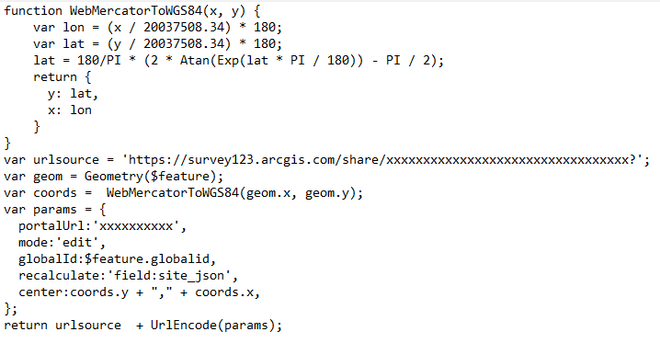

Combining that with UrlEncode will result in an Arcade expression of:
function WebMercatorToWGS84 (x, y) {
var lon = (x / 20037508.34) * 180;
var lat = (y / 20037508.34) * 180;
lat = 180/PI * (2 * Atan(Exp(lat * PI / 180)) - PI / 2);
return {
y: lat,
x: lon
}
}
var urlsource ='arcgis-survey123://?';
var geom = Geometry($feature)
var coords = WebMercatorToWGS84(geom.x, geom.y)
var params = {
itemID:'36ff9e8c13e042a58cfce4ad87f55d19',
field:asset_id: $feature["asset_id"],
center: coords.y + "," coords.x
};
return urlsource + UrlEncode(params);
One thing to note about the geometry is that it may be generalized based on the zoom level and not be the true geometry stored in the dataset. While this shouldn't be an issue with points, this may become more significant with lines and polygons.

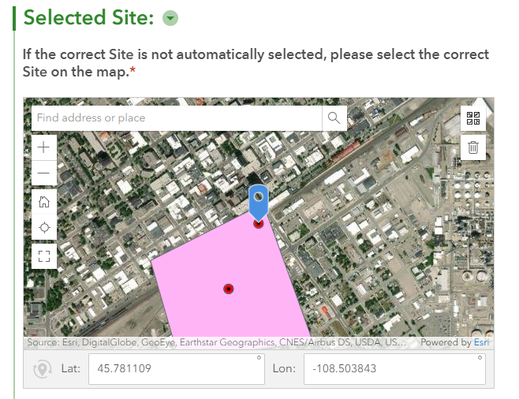

Accessing line and polygon vertices
In addition to points, we can also include line and polygon information in the URL. There are a few limitations to note:
- Only simple geometries can be passed via URL parameters. Multi-part geometries, polygons with holes are not supported.
- The generalization mentioned above may offset vertices from their true location, changing the shape and angles.
The format needed to pass a line or polygon is a sequence of:
lat1 lon1;lat2 lon2;lat3 lon3;...
This is a different format than the format Arcade presents the vertices. Lines have a `paths` property and polygons have a `rings` property; these are both arrays that hold individual path/ring (line/polygon) information. Each path/ring is an array of the coordinates; the following function converts a path/ring to the text list of coordinates Survey123 requires:
function coordsToString(coordSequence) {
var coordTextParts = []
var idx = 0;
for (var c in coordSequence) {
// Get the point in the sequence
var thisPoint = coordSequence[c];
// Add the <lat> <lon> string to the output list
coordTextParts[idx] = Concatenate(thisPoint.y, " ", thisPoint.x);
++idx;
}
// Join the coordinate strings together with ;
return Concatenate(coordTextParts, ";")
}
Determining which path or ring to use can be tricky. For very simple shapes, you may be able to use the first (i.e., paths[0] or rings[0]). You also could try to join paths together, though that may lead to unexpected shapes if the paths aren't in sequence.

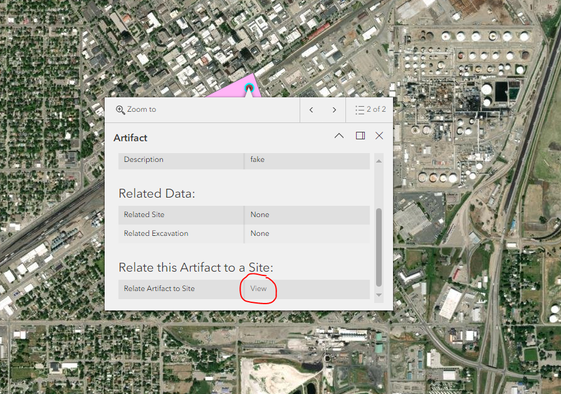

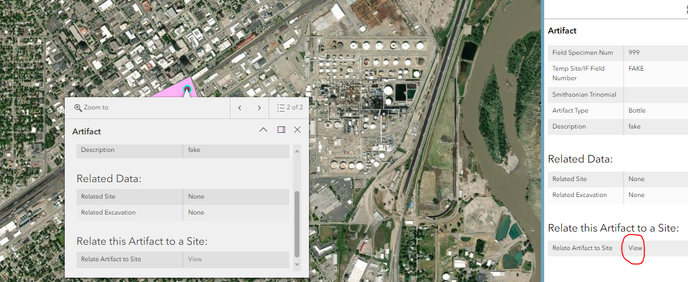

This web map has some examples of Arcade generated links; I've included the Arcade functions used in the attached file.
