Roads and Highways Information Model
The ArcGIS Roads and Highways Information Model is the core structure for linear referencing data. The package available for download in this blog, can be used to explain the LRS data model as applicable to R&H. This is intended to explain and understand the basic building blocks of the solution as detailed below. The package contains the following items:
- File geodatabase containing LRS model and configuration
- LRS report containing schema details and LRS configuration metadata
The model evolves as new capabilities get added. Hence, the following packages are being provided corresponding to major, long-term releases:
- R&H Information Model for ArcGIS Pro 3.3: LRS33RH_Package.zip
- R&H Information Model for ArcGIS Pro 3.1: LRS31_Package.zip
LRS Model

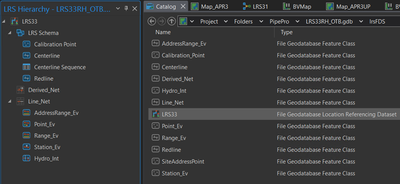

The LRS Schema is comprised of the following feature classes and tables:
- Centerline: Centerline
- Calibration Point: Calibration_Point
- Redline: Redline
- Centerline Sequence: Centerline_Sequence (table)
The following LRS entities can be added on as needed for the modelling exercise:
- Networks
- Line Network: Line_Net
- Derived Network: Derived_Net (optional)
- Events
- Point Event: Point_Ev
- Range Event: Range_Ev
- Station Equation Event: Station_Ev (optional)
- Intersection
- Hydrology Intersection: Hydro_Int uses ‘GeoLayers/Rivers’ as the intersecting layer (optional)
- Address
- Address Range Event : AddressRange_Ev uses ‘SiteAddressPoint’ as the Site Address Feature (optional)
LRS Report

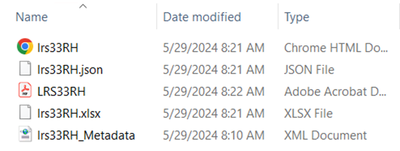

The LRS Report is comprised of the following:
- LRS33RH: schema report (HTML, json, PDF, Excel formats)
- lrs33RH_Metadata: LRS configuration metadata (XML format)
Conclusion
You can use R&H tools to create or load data to the geodatabase included, to further your understanding and proof of concept efforts. R&H’s flexible information model allows you to model your own network, event and intersection feature classes. The package is not intended to be organization specific or implementation ready. However, it does provide the core structure to get you started. More comprehensive data models and their implementation practices can be found at Esri Community and related resources.
