Set number of decimals in toc when using class breaks renderer

[MariusN]

Is there a way to define the number of decimals/format of the labels in the toc when using the class breaks renderer (GraduatedColorsRendererDefinition).

And,, if the field used for the renderer is empty. show a diferent output in the toc.

           GraduatedColorsRendererDefinition gcDef = new GraduatedColorsRendererDefinition()
           {
               ClassificationField = "xxx",
               ClassificationMethod = ClassificationMethod.NaturalBreaks,
               BreakCount = 5,
               ColorRamp = colorRamp,

               ExclusionClause = $"{xxx} IS Null Or {xxx} = 0",
               ExclusionSymbol = emptySymbol,
               ExclusionLabel = "No value",
           };

No values shows :

[GKmieliauskas]

Hi,

The best way to solve questions like yours is to use CIMViewer.

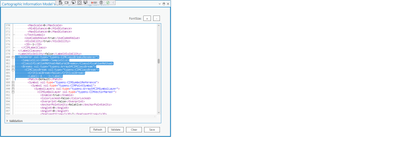

Compile code, run ArcGIS Pro. Open CIMVIewr and select your layer. All settings you will find in CIMViewer. XML tags are same as objects and properties names.

In your case you need to set up Label Property of CIMClassBreak .

How to work with CIMClassRenderer you can find in ArcGIS Pro community sample GetSymbolSwatch sample

[UmaHarano · Accepted solution]

@MariusN

You can use the CIMNumericFormat to format the labels on the renderer. Once your modify the renderer with this format, call the RecalculateRenderer method to update the renderer with your format. Pass in "false" to this method so that it does not regenerate the values for the class breaks. Here is a code snippet

GraduatedColorsRendererDefinition gcDef = new GraduatedColorsRendererDefinition()
{
  ClassificationField = "POP2000",
  ClassificationMethod = ClassificationMethod.NaturalBreaks,
  BreakCount = 5,
  ColorRamp = GetColorRamp()

};
CIMClassBreaksRenderer renderer = (CIMClassBreaksRenderer)featureLayer.CreateRenderer(gcDef);

var numberFormat = new CIMNumericFormat
{
  RoundingValue = 4,
  RoundingOption = esriRoundingOptionEnum.esriRoundNumberOfDecimals,
  ZeroPad = false
};
renderer.NumberFormat = numberFormat;
featureLayer?.SetRenderer(renderer);
featureLayer?.RecalculateRenderer(false);
