Numeric Fields for Bar Charts

10-05-2020 06:55 PM
New Contributor II

There seems to be some discrepancy between the ArcGIS Pro UI functionality and the SDK options.

I have a feature class with the following fields. Some are numeric and some are categories (Text)

The UI only allows only Category or Date fields that is then used as the X-dimension in the chart. and the user cannot pick a numeric field as the X-dimenstion

Using the SDK however I am able to create a bar chart with a numeric field as the x-dimension.

var series = new CIMChartBarSeries();
series.Fields = new string[] { "Resampled Depth" };
var chart = new CIMChart();
chart.Series = new CIMChartSeries[] { series };

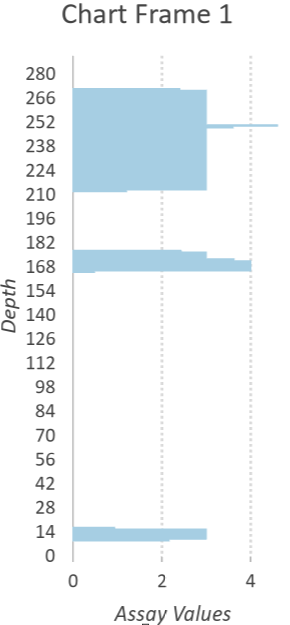

With this code I am able to create what looks like a valid chart where it seems like the numeric values have been converted to text and sorted.

The problem here is if I want to alter the appearance of this chart in the UI, the series and fields are not recognized


So with this I have to ask if there are any plans to support Bar Charts with Numeric fields in the UI or will they only be available for manipulation via SDK calls?

0 Replies
