SOLVED: ArcPro 3.2.1 Traverse Tool Directions not correct

792
1
01-17-2024 09:39 AM
JGreen
by
New Contributor

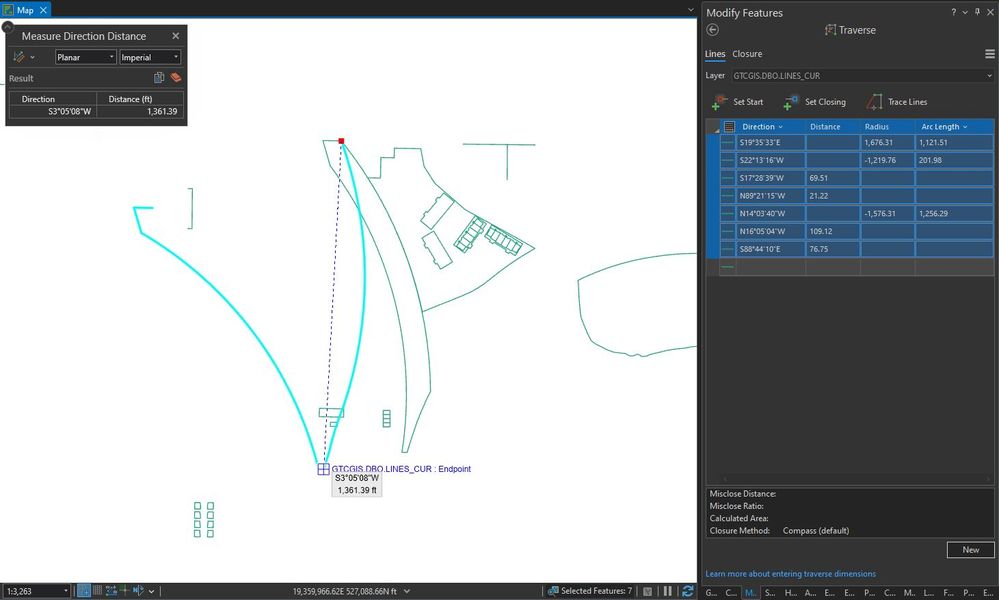

The Traverse tool in ArcPro 3.2.1 is not creating lines in the direction that I enter. I made sure that I have ground to grid correction turned off. When I enter the same lines using the create feature tools, then they are created correctly. For example, the first call has a chord direction of S 19-35-33 E, but the tool draws a chord direction of S 3-5-8 W, as you can see from the measuring tool. The screenshot includes the traverse I entered and how it appears. I have circled the shape that I created when I manually entered each call with the create features tool. Does anyone else have this issue? It was working for us before, so I am not sure what would have changed.

traverse tool issue.JPG



0 Kudos
1 Reply
JGreen
by
New Contributor

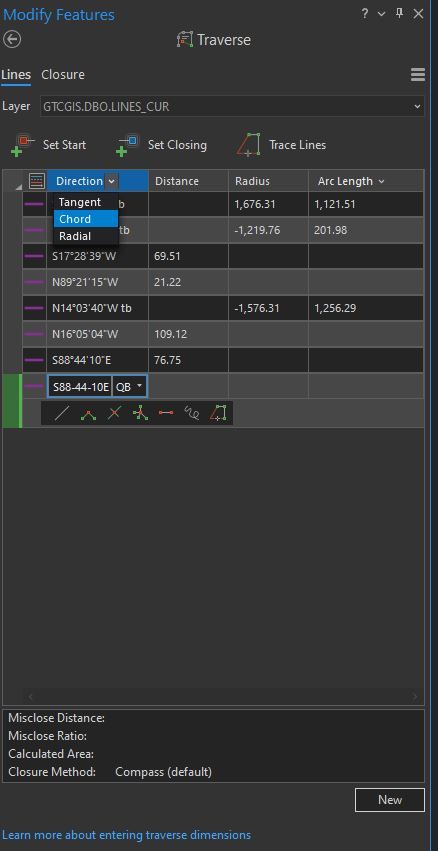

After playing around with it quite a bit, I realized that the Traverse Tool was trying to make the curve tangent to a non-existent line. Since I have not had this problem until now, I am guessing the default was chord until it was somehow changed to tangent.
