Shared dashed polygon-outlines in vectortiles become solid-lines

02-23-2022 06:01 AM
New Contributor III

Hi, more questions about vector-tiles on my end 🙂

I'n not sure if this is in the correct section since it's touching different things. But since the vectortilepackage/service is created in ArcGIS Pro I'll post this here.

I try to create a vector tile service with border-sharing-polygons with simple dashed-outlines. The polygons are grouped by unique values / an attribute (and additionally have alternate symbols). The outlines have a solid stroke layer (white) and above a dashed stroke layer (black).  To give a example: Think of displaying Country-borders, symbolized by unique values, grouped by "continent".

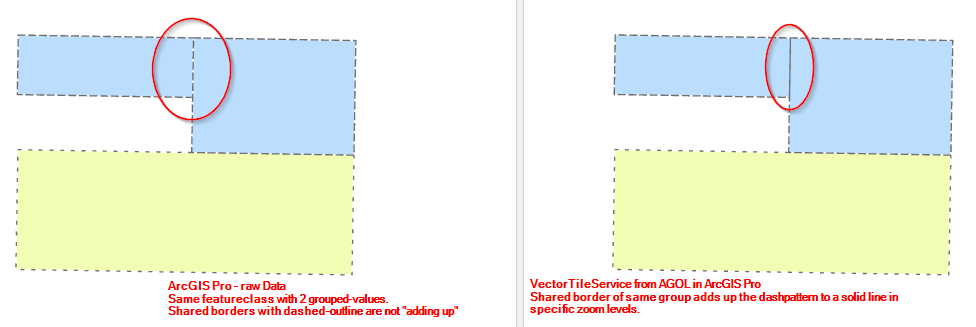

ArcGIS Pro handles that well and does not "stack" the dashed outlines within the same unique value group which could result in a solid line... however, viewing the result after publishing as vector tile package / vector tile service is different:




As far as I understand it: All "top-stroke-layers" from the same unique-value-group are drawn together. So within a group they will overlap and stack the dash-pattern into a solid line. The second stroke layer (solid white) does not help, since it is drawn as "layer-2", after the already stacked dashed lines "layer-1". Borders to polygons from other groups work fine... that group will be "overdrawn".

> Is there any way to fight against or work around that effect for vectortiles?

The only «solution» I found so far is, not to group the unique values or better said, taking a unique value that is unique for every single feature...every draw-layer of every feature would be drawn seperatly. But that's not actually a solution for me since there are >200k features and they are updated daily with changed and new features.

Any kind of hints and tips are very welcome 🙂

2 Replies
Occasional Contributor

To bypass that i used to convert polygons into lines and delete dupplicates lines with another software. Apparently it's also possible to do it in ArcGIS Pro :, but the workarounds need special licences...


0 Kudos
New Contributor III

Modification of the data is not possible / intended in the process...the startingpoints are polygons. Converting all the datasets to lines would create a HUGE overhead and all of that just to display dashed outlines of shared polygon borders correctly! Why this limitation within the vector tiles?

0 Kudos
