Is it possible to calculate the timestamp, when a moving point (car) intersects a line based on just timestamps? (see picture in post)

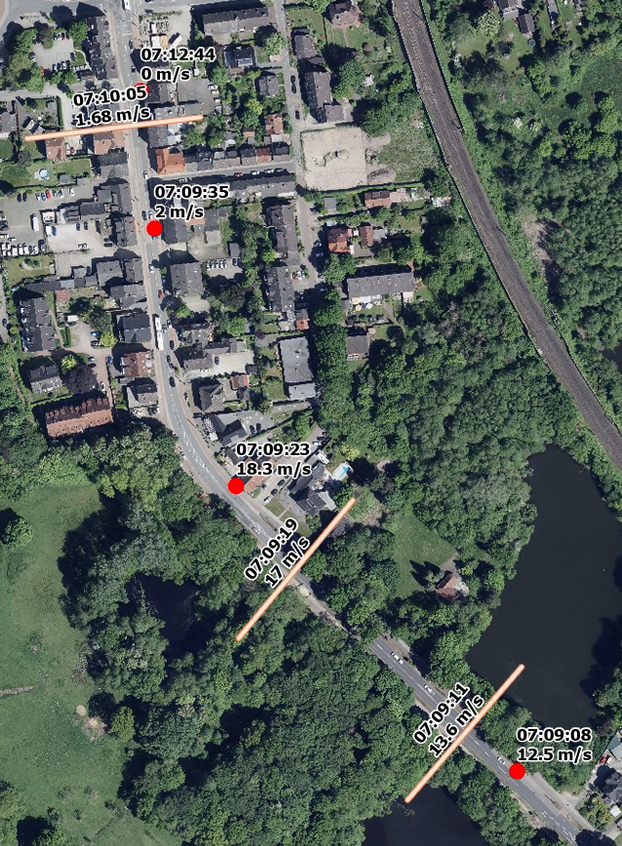

Hello. I think the example in the following picture clarifies my confusing question. The two points represent a car that happened to be at the shown points at the shown time with the shown speed (orange number; just to know I don't need to calculate the speed, already have it).
It would be great if there is a tool or if you know a(n easy) way to calculate/estimate the (date and) timestamp when the car crossed the yellow'ish line. Of course it is possible "by hand" with just measuring the distance and calculating the mean speed, but I have around 39,000 unique trips with around 3,700,000 points travelling a distance up to around 25km and around 30 cross sections over a span of 2 weeks.
I am on Windows 10 and I use ArcGIS Pro 3.0.1.
Thank you in advance for taking your time to read and in the best case answer my question.
This seems like a good job for Python.
This script assumes velocity in m/s and constant acceleration between the points. It outputs a table that lists each trip with all crossed lines with crossing time and velocity.
To run it:
- open the Python window
- copy and paste the script below
- edit the input and output variables (you don't need to change anything below line 16)
- hit enter
import arcpy, datetime
# define inputs
in_points = "Path/to/points"
trip_field = "TripID"
time_field = "Time"
velocity_field = "Velocity"
in_cross_sections = "Path/to/cross_sections"
cross_section_field = "CrossSectionID"
# define outputs
# for your huge amount of data, I recommend saving into RAM, so it runs faster
# don't forget to export the table afterwards!
out_folder = "memory"
out_name = "result"
# function for calculating the time and velocity at which the vehicle hits the point of interest
# this assumes constant acceleration!
# v0: start velocity in [m/s]
# a: acceleration in [m/s/s]
# s: distance from start to point of interest in [m]
# returns a tuple of (seconds, velocity)
def calc_time_and_velocity(v0, a, s):
# for constant acceleration:
# v(t) = a * t + v0
# s(t) = 0.5 * a * t^2 + v0 * t
# ==> t(s) = -v0/a +- sqrt( (v0 / a)^2 + 2 * s / a )
t = -v0 / a - math.sqrt( math.pow(v0 / a, 2) + 2 * s / a)
if t <= 0:
t = -v0 / a + math.sqrt( math.pow(v0 / a, 2) + 2 * s / a)
v = a * t + v0
return (t, v)
# create output table
out_table = arcpy.management.CreateTable(out_folder, out_name)
arcpy.management.AddField(out_table, "Trip", "LONG")
arcpy.management.AddField(out_table, "CrossSection", "LONG")
arcpy.management.AddField(out_table, "Time", "DATE")
arcpy.management.AddField(out_table, "Velocity", "FLOAT")
# read input data
points = [row for row in arcpy.da.SearchCursor(in_points, ["SHAPE@", trip_field, time_field, velocity_field])]
cross_sections = [row for row in arcpy.da.SearchCursor(in_cross_sections, ["SHAPE@", cross_section_field])]
sr = points[0][0].spatialReference
# get all trips
trips = list({p[1] for p in points})
# start writing into the output table
with arcpy.da.InsertCursor(out_table, ["Trip", "CrossSection", "Time", "Velocity"]) as cursor:
# loop through the trips
for trip in trips:
# extract the points of that trip
trip_points = [p for p in points if p[1] == trip]
# sort by time
trip_points.sort(key=lambda p: p[2])
# loop through point pairs
for i in range(1, len(trip_points)):
p1 = trip_points[i-1]
p2 = trip_points[i]
line = arcpy.Polyline(arcpy.Array([p1[0].firstPoint, p2[0].firstPoint]), sr)
# find intersecting cross sections
intersecting_cs = [cs for cs in cross_sections if not line.disjoint(cs[0])]
# loop through those cross_sections
for cs in intersecting_cs:
# get the intersection point
p = line.intersect(cs[0], 1)
# calculate time and velocity
dv = p2[3] - p1[3]
dt = (p2[2] - p1[2]).seconds
a = dv / dt
s = p1[0].distanceTo(p)
t, v = calc_time_and_velocity(p1[3], a, s)
time = p1[2] + datetime.timedelta(seconds=t)
# write into the output table
cursor.insertRow([trip, cs[1], time, v])

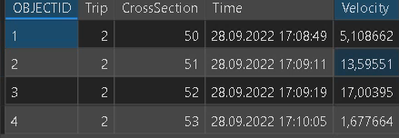

Results for some made-up test data:
Again, this script assumes velocity values given in meters per second, so you have to calculate that from your values (I'm assuming these are km/h).
So I don't really know why, but I don't get those errors anymore, I just tried another different dataset (Initial data was in 650 files, which I first merged together into 5 files and then those 5 again into one file).
Instead I first had a division by zero error when "a" was zero when both velocities were the same. I fixed that by including this to your code:
# for constant acceleration:
# v(t) = a * t + v0
# s(t) = 0.5 * a * t^2 + v0 * t
# ==> t(s) = -v0/a +- sqrt( (v0 / a)^2 + 2 * s / a )
if a != 0:
t = -v0 / a - math.sqrt(math.pow(v0 / a, 2) + 2 * s / a)
if t <= 0:
t = -v0 / a + math.sqrt(math.pow(v0 / a, 2) + 2 * s / a)
v = a * t + v0
else:
t = s / v0
v = v0
return (t, v)
Now I get a ValueError: math domain error. I included some prints in your code to see what values cause that error:
Trip: 1292665561
p2[2] - p1[2]
2019-09-19 08:12:59 - 2019-09-19 08:12:44.000001
dt: 14
-
p2[3] - p1[3]
0.2777777777777778 - 5.277777777777778
dv: -5.0
-
a: -0.35714285714285715
-
distToCross: 56.91868192594062
v0: 5.277777777777778
a: -0.35714285714285715
s: 56.91868192594062
Traceback (most recent call last):
File "<string>", line 121, in <module>
File "<string>", line 38, in calc_time_and_velocity
ValueError: math domain error
(and don't ask me why this one datetime has an added .000001)

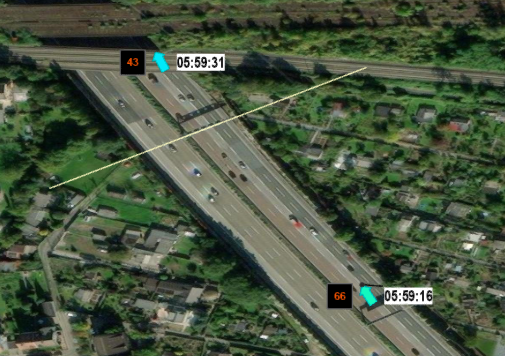

The situation looks like in the following picture, if it helps. The actual point is just right at the tip of the arrow, so it is just a tad behind the cross-section.
