Hi Community,

I have encountered in a problem when I try to import on a map a IFC File.

In this file there are the most part of the IfcProduct classified as IfcFlowFitting that the type is IfcDistributionElementType. In the same IFC document there are two IfcProduct that are IfcFlowFitting but are classified as IfcPipeFittingType.

In according with the IFC documentation the IfcPipeFittingType is a specialization of the class  IfcDistributionElementType that is viewable here:

BuildingSmart documentation - IfcDistributionElementType

ArcGis Pro behaves strangely ignoring all the IfcFlowFitting classified as IfcDistributionElementType and on the map the geometry result not visible.

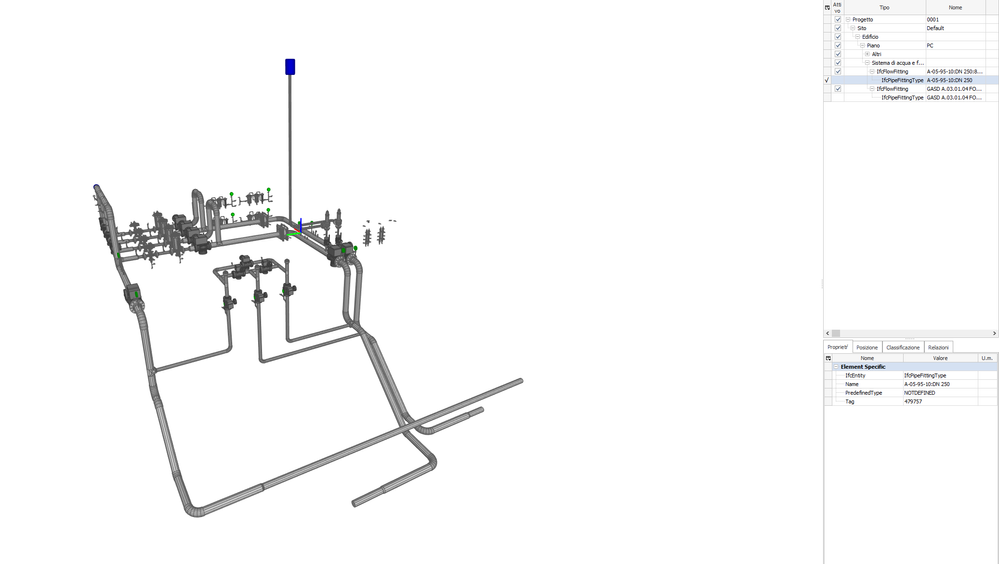

In the image below it's possible to see what is in the IFC File:

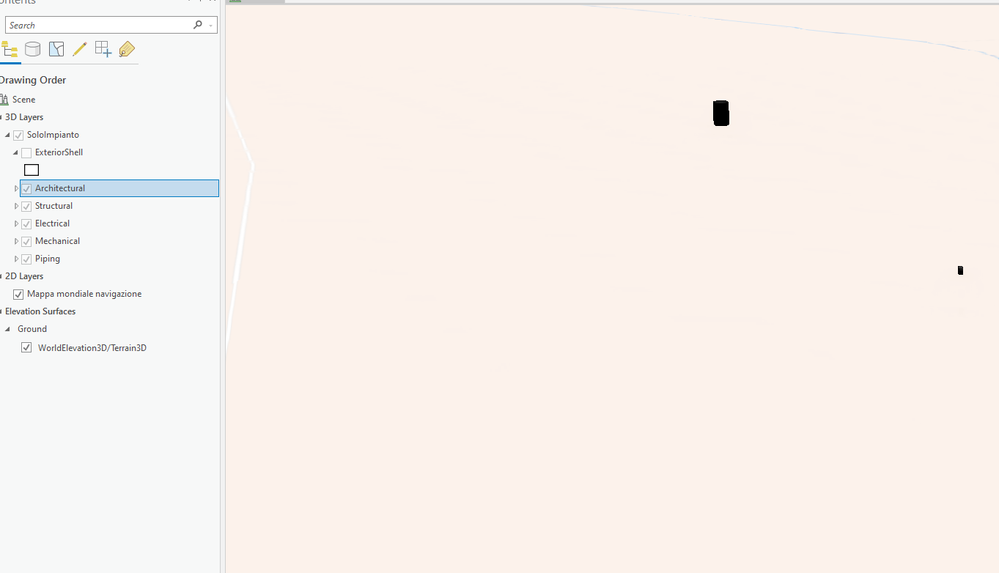

But in this second image it's possible to see what ArcGIS Pro show:


As you can you see, ArcGIS Pro show only the two IfcFlowFitting classified as IfcPipeFittingType but the rest is not imported in the scene.

Anyone can help me to solve this issue?

Is this something that was not considered when importing the IFC file?



Thanks!





0 Kudos
7 Replies
DA_BIM-GIS
Esri Contributor

Hello Simone,

The issue has been resolved on Pro 3.1.

David

0 Kudos
EnjingZhang
New Contributor

你好DA,

我发现这个问题在3.1pro软件中仍然存在,你能详细说明一下吗?

0 Kudos
DA_BIM-GIS
Esri Contributor

Hi @EnjingZhang

Would be possible for you to share some screen capture where you have the issue?

David

0 Kudos
EnjingZhang
New Contributor

感谢您及时回复我!

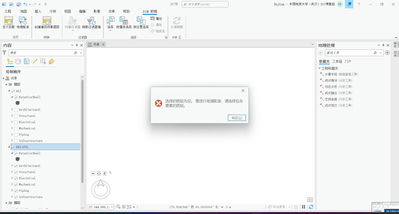

但是,将 IFC 文件导入 ArcGIS pro 以进行地理配准会显示图层为空白

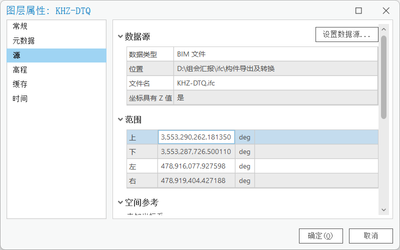

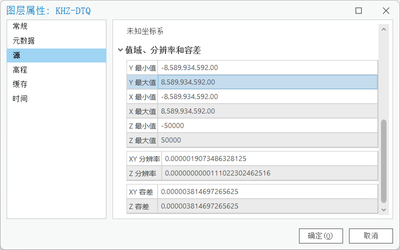

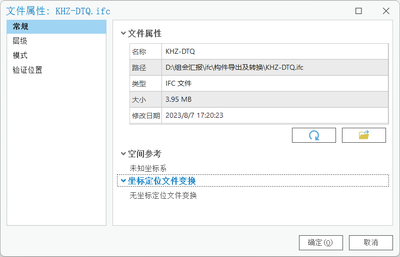

这是添加到 PRO 中用于显示的属性,它的单位是度(deg)




我想问你为什么从BIM导出的IFC文件在PRO中导入时不显示在场景中,









0 Kudos
DA_BIM-GIS
Esri Contributor

Hi @EnjingZhang

Based on the screen captures the issue appears to be a georeference issue and not a data issue. This link will guide you https://learn.arcgis.com/en/projects/geolocate-a-3d-digital-building-model/ through the georeference process.

David

0 Kudos
EnjingZhang
New Contributor

非常感谢您的回答,我将首先学习地理配准,看看是否可以解决IFC导入Pro无法显示的问题。祝你工作顺利,生活幸福

0 Kudos
EnjingZhang
New Contributor

SimoneSimone嗨你好西莫,

我和你有同样的问题,你是怎么解决这个问题的?希望尽快收到您的来信
