Exporting layouts with label issues

1873
5
09-18-2017 11:09 AM
JulieDel_Muto
Emerging Contributor

We are having issues with exporting in regards to labels and text. When exporting to a PDF, PNG or a JPEG we have noticed that sometimes labels disappear or are moved or duplicate. Is there a way around this or something we are missing in ArcPro when exporting a layout that is different from ArcMap? Thanks!

5 Replies
MichaelVolz
Esteemed Contributor

Can you provide some details on the datasources for the data where the labeling problems occur?

0 Kudos
JulieDel_Muto
Emerging Contributor

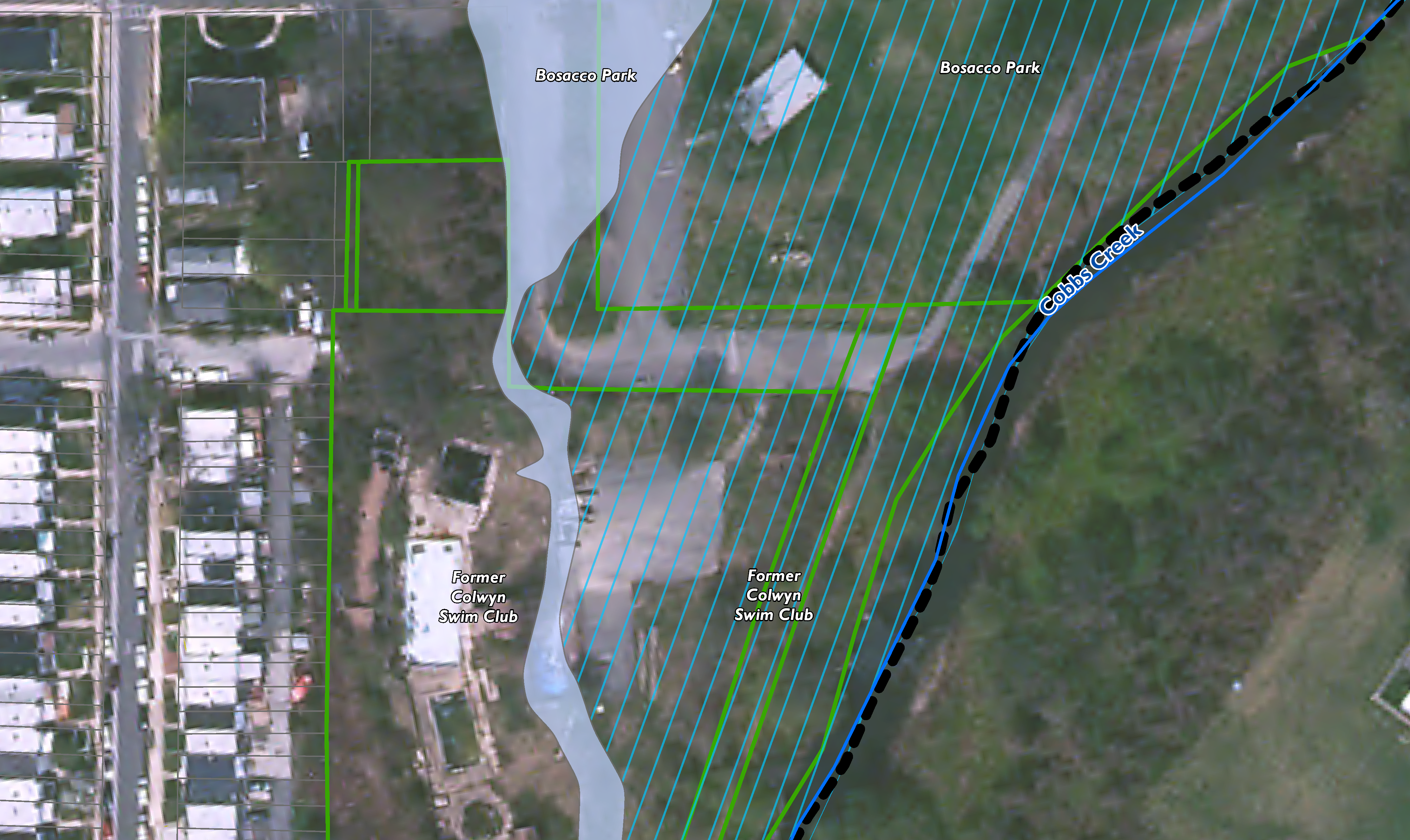

Hi! Yes, it happens with shapefiles/geodatabase layers. Below are screenshots of the ArcPro layout and below that an export of it as a PNG.

 ArcPro

PNG

0 Kudos
MichaelVolz
Esteemed Contributor

So it does not appear that different datasources have an impact on the labeling issues.

What version of Pro are you using where you see these labeling issues?

My org is in the preliminary stages of migrating from Desktop to Pro, so I am interested in seeing if I can duplicate the labeling issues you are seeing in my environment.  I will let you know if I can replicate your issues in my environment.

0 Kudos
JulieDel_Muto
Emerging Contributor

The latest version, I just need to install the new patch that came out.

Thanks! Let me know if you see an issue!

0 Kudos
GuyCochrane
New Contributor

My feature labels are not showing up in the jpeg layout export. I switched to Standard from Maplex and removed limits on the visibility range. What else can I do?
