Editing Geodatabase Annotation in layout mode? Or efficient alternative?

1384
16
Jump to solution
05-03-2021 06:32 AM
Labels (1)
AZendel
Occasional Contributor III

When having fine grain control of labels is a must, I prefer to convert labels to geodatabase annotation and then edit the annotation features that don't suit my cartographic goals. I prefer to use GDB annotations because it's not uncommon for people to later ask me to pan the map in a certain direction or zoom in/out a little more to give them more space. GDB annotation, as opposed to graphic labels, stays in the correct place when this is done. And you can reuse the annotations in multiple maps with the same layout out extent but different layers in lower portions of the table of contents.

ArcMap allowed you to edit features, including annotation, in layout mode. It doesn't look like Pro will allow this. So after I edit a particular annotation, I have to switch back to layout mode to pan or zoom to the next edit. Otherwise the map extent will change and the subject matter area will not be correct. Then I have to switch back to the data frame and then click the edit tab to make my next edit. So the clicks after each edit are

  1. change the view to layout out mode.
  2. click the layout navigation tool
  3. navigate the layout to my next annotation edit, zoom in when detail is necessary
  4. click the "activate map frame" button
  5. click the edit tab
  6. click the edit tool that I need (create, move or rotate).
  7. finally get to make the edit

Hopefully I don't sound picky or lazy, but that's quite inefficient. I remember seeing a post where ESRI carefully studied how many clicks were needed and also how far the mouse had to travel for people to complete a task (this was quite some time in the past before Pro was probably on the horizon). So it seems like this is an important consideration to their software designers. Part of me appreciates the organization that the tabbed ribbon provides, but it causes a lot more clicks and increased mouse 'travel distance'. My wrist can get a bit tired. I have been adding my frequently needed tools to the 'ribbon' across the top - in fact I put the two buttons that  toggle between map and layout modes up the to somewhat improve my annotation editing workflows. But it doesn't help very much.

I've also tried locking the map frame in hopes that pans and zooms would not change the map extent in layout mode, but that hasn't helped. So if I forget to switch back to layout mode before I scroll the mouse wheel or pan, I have to use a bookmark to return my map to the correct extent. Then switch to layout to zoom to the correct location.....and so on with the number of click I listed above.

Is there any type of work-around to editing GDB annotation efficiently in Pro? If not, I may add this to the 'Ideas' page. Thanks!

0 Kudos
1 Solution

Accepted Solutions
Scott_Harris
Esri Regular Contributor

Just in case it wasn't clear, here is a GIF of what I meant:


View solution in original post

0 Kudos
16 Replies
Scott_Harris
Esri Regular Contributor

Hi @AZendel

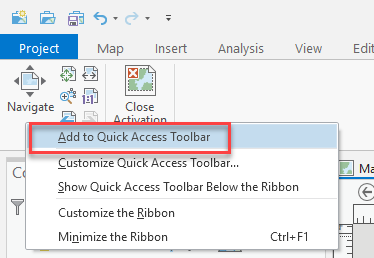

Try adding the layout Navigate tool to the Quick Access Toolbar (here I am right-clicking on it):

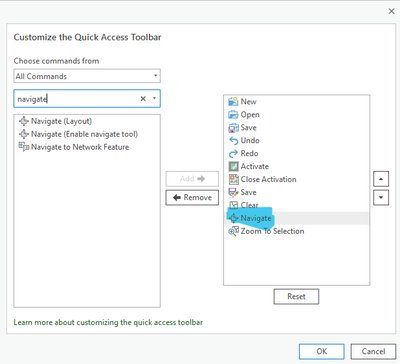

Now when you have an activated layout and you are on the Edit tab using the Annotation or any other editing tool, and you need to navigate the layout, you can click on the tool in the quick access toolbar to navigate, and then switch back to the Annotation tool.

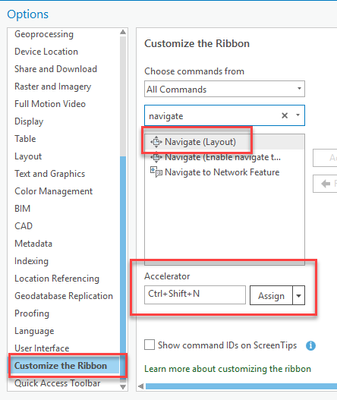

You can even add a custom keyboard shortcut (called an accelerator) to make switching tools even easier: https://pro.arcgis.com/en/pro-app/latest/get-started/customize-the-ribbon.htm#ESRI_SECTION1_0B9AD340...



Example:




Does this help?

Thanks,

Scott



AZendel
Occasional Contributor III

Thanks for the tips! I did have the "Close Map Frame Activation" button on the quick access bar, but the layout 'Navigate' button seems to 1) switch the mode to layout and 2) activate the navigation tool. Will look into Accelerators and how I may take advantage of them to speed up this process.

0 Kudos
Scott_Harris
Esri Regular Contributor

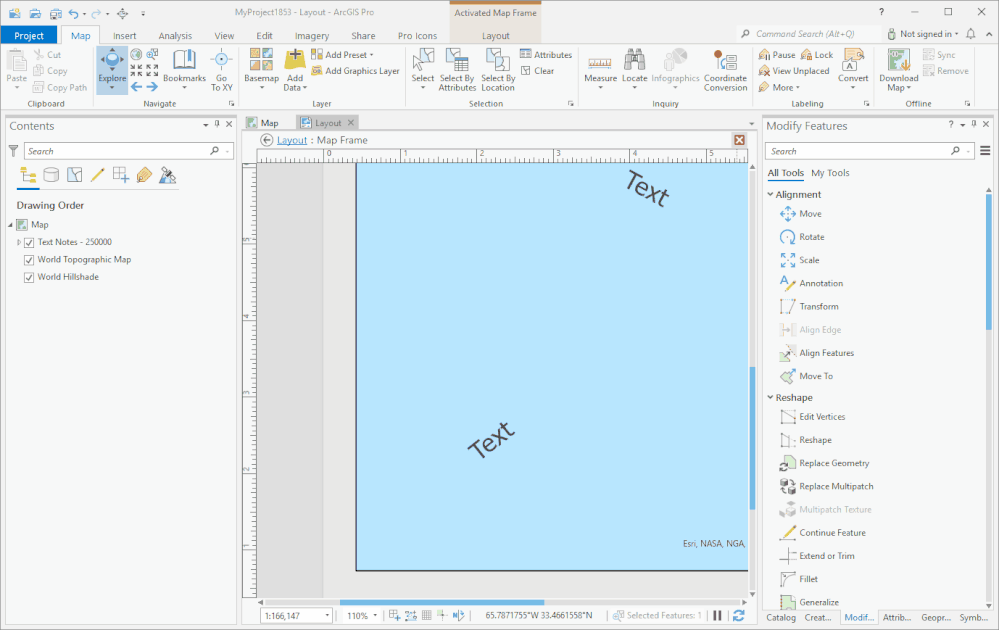

Just in case it wasn't clear, here is a GIF of what I meant:


0 Kudos
AZendel
Occasional Contributor III

Thanks. This improves my workflow substantially!

0 Kudos
RyanR
by
New Contributor II

What version is this functionality available in? I don't see the layout Navigate tool in 2.7, so assuming its a 2.8 thing. Can you confirm this?


0 Kudos
AZendel
Occasional Contributor III

According to WikiPedia, Pro 2.8 was released on 5/12/2021.  The solution that worked for me was posted just before that date.



Below is the tool I'm using. I think it's "Navigate (Enable Navigate Tool)". But it might be "Navigate (Layout)"




RyanR
by
New Contributor II

Thanks for the clarification!

0 Kudos
Scott_Harris
Esri Regular Contributor

Hey @RyanR I see it in 2.7 too. You will have to add to the Quick Access Toolbar like I showed above this thread.

0 Kudos
RyanR
by
New Contributor II

Thanks Scott I guess I missed the 1st step not right clicking on the actual Navigate tool and was trying to do it via customize tool bar route. That said, I got it to work now!

Hopefully the default is the Editing tab becomes available just by Activating the map frame in future releases, similar to focusing the Data Frame in ArcMap. This workaround is not to much trouble, but many GIS users in my organization are or were not aware of it.
