ArcGIS Pro 2.9: How to split lines at intersection within a model builder?



I couldn’t figure out if there is a model builder tool that can split lines at intersection






----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
2 Solutions

Accepted Solutions
JayantaPoddar
MVP Esteemed Contributor
5 Replies
JayantaPoddar
MVP Esteemed Contributor

Else

Intersect (Analysis)—ArcGIS Pro | Documentation (Only single input layer. Output Type: Point)

followed by

Split Line at Point (Data Management)—ArcGIS Pro | Documentation



Think Location
JamalNUMAN
Esteemed Contributor

it works fine. Thank you




----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
DanLee
by Esri Regular Contributor
Esri Regular Contributor
JamalNUMAN
Esteemed Contributor

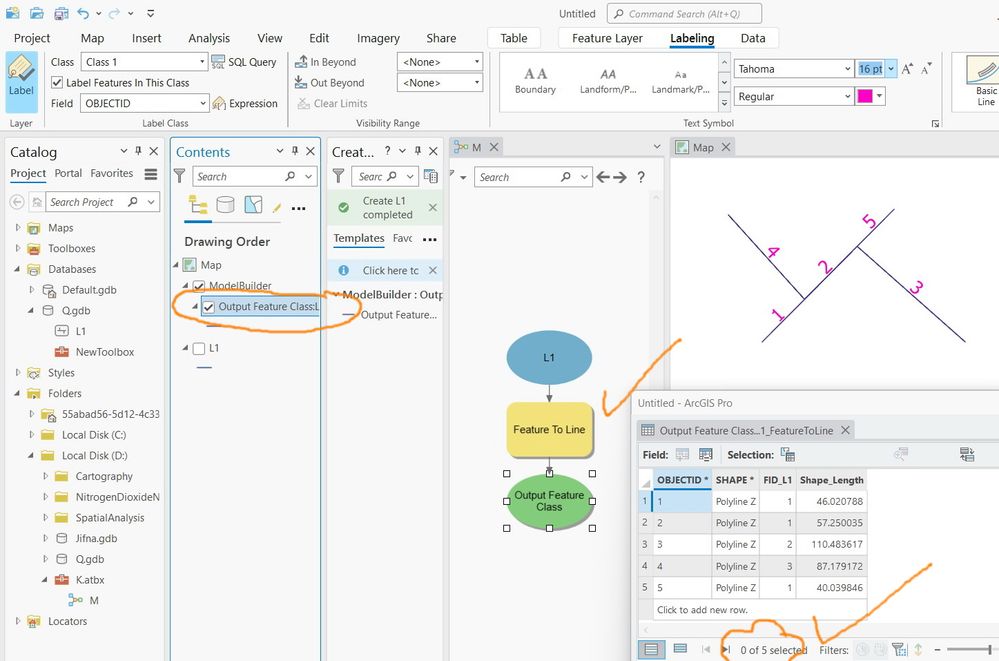

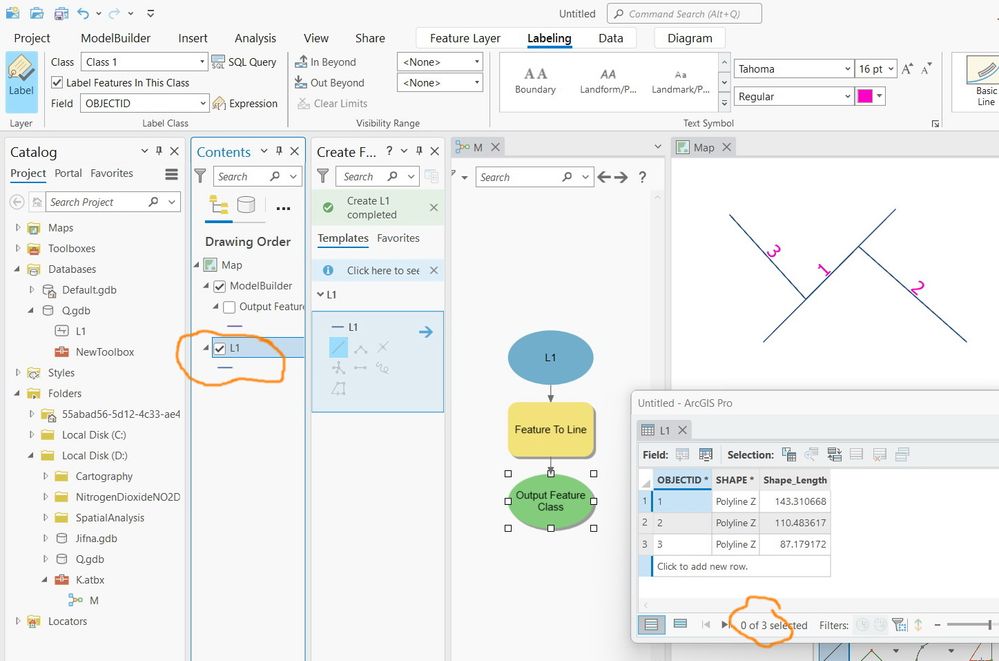

Correct. It works fine with one tool “feature to line” as per the screenshots below




----------------------------------------
