Reference Grid (Graticule & Measured Grid) label format options to be enhanced

880
1
02-29-2012 08:22 PM
Status: Implemented
Labels (1)
Labels
GraemeBrowning
by
Frequent Contributor
I'm happy to be corrected, but at the moment I do not think it is possible to meet any of the following mapping requirements using either ArcMap or ArcPy:
  •
  • 1. Label measured grids using a format like 6828000mN where 68 is superscript, 28 is normal, 000m is superscript and N is normal
  •
  • 2. Label measured grids using a format that at least enables mN and mE to be included even if all the superscripting above cannot be supported
  •
  • 3. Label graticules using a Degrees, Minutes and Seconds (DMS) format where the minutes and seconds can be written as 00 rather than 0
  •
Note that I have excluded Grid and Graticule layers from consideration here, because even if they can support these grid and graticule labelling scenarios they are not dynamic and I need the labelling above in a Maps On Demand (MOD) / Data Driven Pages (DDP) like application.
1 Comment
AubriKinghorn
by Esri Regular Contributor
‎02-01-2021 09:06 PM
Status changed to: Implemented

Hello,

The grid label support you requested is available in ArcGIS Pro using grid label tags. For example these tags:

<FNT size="8"><dyn type="grid" placeValue="100000" digits="2" vAlign="bottom"/></FNT><FNT size="12"><dyn type="grid" placeValue="10000" digits="1" vAlign="top"/></FNT><FNT size="8"><dyn type="grid" placeValue="10000.right" vAlign="top"/>m.</FNT><FNT size="12"><dyn type="grid" cardinalDir="True" vAlign=""/></FNT>

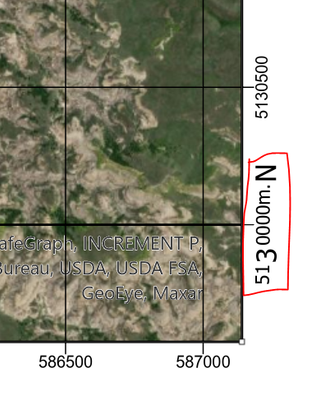

produce a label like this:




Learn more about grid label tags and how to use them here: https://pro.arcgis.com/en/pro-app/latest/help/layouts/grid-label-tags.htm
