How to load Control monuments into parcel points

1172
4
Jump to solution
11-08-2021 02:54 PM
Labels (2)
DrewDowling
Occasional Contributor III

My understanding is that control monuments should be loaded into the fabric_points feature class. Is this correct?

If so then how are monuments distinguished from corner points?

Looking at the fabric_points attributes I don't see how we would correlate monument confidence to the existing attributes for use in adjustments.



0 Kudos
1 Solution

Accepted Solutions
AmirBar-Maor
Esri Regular Contributor

@DrewDowling

There is no need to use geodatabase 'subtypes' - they might add unnecessary complexity. Subtypes are only needed when you want to apply different topology rules and/or different attribute rules (behaviors).

To use a point as 'constrained' during LSA (Least Squares Adjustment) just set it as 'XYZ Constrained':


Each control point belongs to a different class, which usually infers different accuracy:

1. Add a field called 'PointType' or 'class' and specify the class

2. Add an Attribute Rule calculation and assign a different 'XY Accuracy' for each class. That accuracy is used in LSA to weight the 'measuremetns' which are the XYZ coordinates.


If you want to prevent a point from moving - set the 'IsFixed' field to 'Yes' (1).

To learn more about LSA see help documentation.

If you want to make sure the XY(z) coordinates match the geometry import some the shipped Attribute Rules - see the help documentation.




The key to a good adjustment is good (input) measurements. For example - if all the measurements are inversed (from geometry) it makes no sense to expect LSA to converge to a better solution.

Amir

View solution in original post

4 Replies
jcarlson
MVP Esteemed Contributor

We added a field point_type to our fabric points layer and used the values in that field to establish subtypes. That way we can easily differentiate between standard corner points, survey monuments, and PLSS corners.

What version of the parcel fabric are you on? What does your input "monument confidence" look like?

- Josh Carlson
Kendall County GIS
DrewDowling
Occasional Contributor III

We are prototyping our data model using the latest version of the fabric, Pro 2.9 equivalent.

The existing control monuments are classed as first, second, third etc order points. (Sorry I'm more a developer than a surveyor so my terminology is off I know)

A subtype sounds very reasonable. Will this allow us to do adjustments? We currently don't do true  adjustment work and are very interested in this functionality.

0 Kudos
AmirBar-Maor
Esri Regular Contributor

@DrewDowling

There is no need to use geodatabase 'subtypes' - they might add unnecessary complexity. Subtypes are only needed when you want to apply different topology rules and/or different attribute rules (behaviors).

To use a point as 'constrained' during LSA (Least Squares Adjustment) just set it as 'XYZ Constrained':


Each control point belongs to a different class, which usually infers different accuracy:

1. Add a field called 'PointType' or 'class' and specify the class

2. Add an Attribute Rule calculation and assign a different 'XY Accuracy' for each class. That accuracy is used in LSA to weight the 'measuremetns' which are the XYZ coordinates.


If you want to prevent a point from moving - set the 'IsFixed' field to 'Yes' (1).

To learn more about LSA see help documentation.

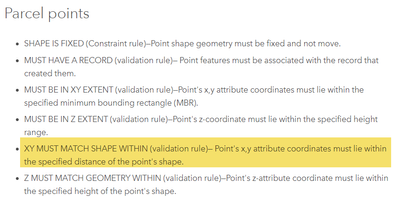

If you want to make sure the XY(z) coordinates match the geometry import some the shipped Attribute Rules - see the help documentation.




The key to a good adjustment is good (input) measurements. For example - if all the measurements are inversed (from geometry) it makes no sense to expect LSA to converge to a better solution.

Amir

DrewDowling
Occasional Contributor III

Great this really clarifys things for me. Thank you Amir.
