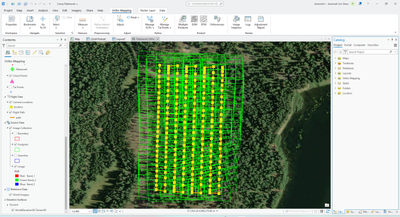

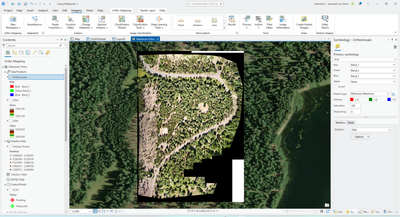

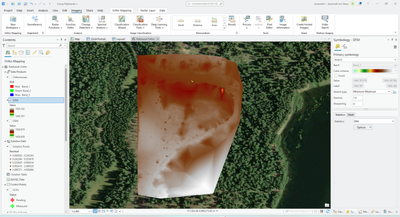

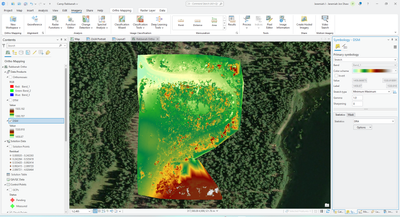

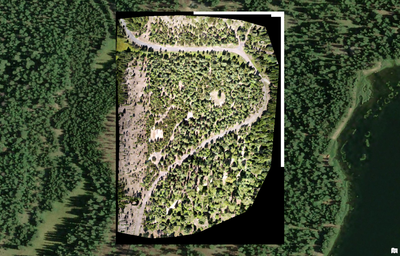

ArcGIS Pro 3.7 Ortho mapping Wizard - I ran my drone data to day to create an Orthomosaic, DTM, and DSM. when they were complete some of the imagery was blacked out (on the higher elevation section) causing a hole in my three layers. I have run three other imagery sets through this same process and did not have these issues, What am I missing?
during the block adjustment Process the log stated "41 unsolved images removed" how do I get these to be "solved" any advice will be helpful.
Accepted Solutions
Hi Jerimiah,

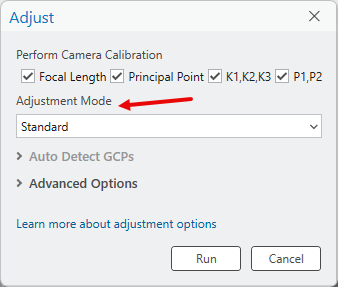

Good day. The unsolved images in the SE are a result of the dense vegetation causing image correlation challenges. What was the Adjustment Mode chosen in the Adjust UI?
If Standard, please re-run the adjustment using "Challenging" setting and let me know if there are dropped images and the amount.
Kind regards
ChrisP
Hi Jerimiah,
Good day. The unsolved images in the SE are a result of the dense vegetation causing image correlation challenges. What was the Adjustment Mode chosen in the Adjust UI?
If Standard, please re-run the adjustment using "Challenging" setting and let me know if there are dropped images and the amount.
Kind regards
ChrisP
I reran the Data from the beginning it turned out better, more useable space.
