Continuous Timeline (color) Symbology not displaying in Field Maps
I have created a web map in ArcGIS Online that is using a Continuous Color style based on the last_edit_date system field. The use case here is that I need to field verify some data but want to make sure that I'm going to the sites that were updated least recently first.

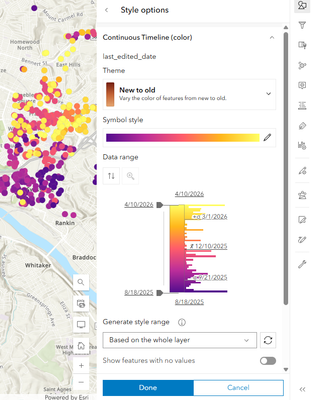

Here is what I have in AGO:
And this is what I see in Field Maps:
I am using Field Maps 26.1.1 Build 2542 on an 5th generation iPad Pro.
Accepted Solutions

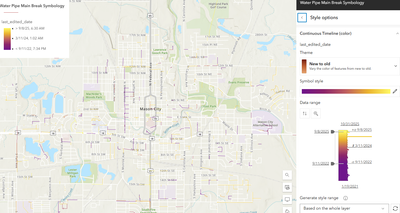

I just tried this using an Android phone. I did try with lines instead of points, but I received the same issue in field maps. All of my lines are gray.
I changed the symbology to a single color with no fields used for display, and it showed up correctly in ArcGIS Field Maps. I then selected a field (Material) and had it show different colors for each value, which also worked. This might just be an issue with the continuous renderer.
Upon further investigation it appears this is a known bug listed as 'under consideration'. If i were you I would call Esri Support and get your Organization attached to the bug to bring more attention to it. Other than that you just have to wait for them to fix it or you can try to download an earlier version of field maps.
I just tried this using an Android phone. I did try with lines instead of points, but I received the same issue in field maps. All of my lines are gray.
I changed the symbology to a single color with no fields used for display, and it showed up correctly in ArcGIS Field Maps. I then selected a field (Material) and had it show different colors for each value, which also worked. This might just be an issue with the continuous renderer.
Upon further investigation it appears this is a known bug listed as 'under consideration'. If i were you I would call Esri Support and get your Organization attached to the bug to bring more attention to it. Other than that you just have to wait for them to fix it or you can try to download an earlier version of field maps.
