Is it possible to update the search result symbology and/or change the map highlight fill/outline in ?

[AdamGebhart]

I am trying to change the search result symbology but don't see where it can be done in the interface, let alone in config.json.  At the least I would like to change the point symbology so it jumps out at the user.  Is there a way in the interface and I'm looking past it?  I'd also take changing the flash properties.  Robert Scheitlin provided steps on how to update the search symbology in WAB but I haven't been successful getting those same changes to work in EB.

Additionally, I'd like to make changes to the selection highlight to give it a thicker border/halo.  Can I do something in config.json for that?



[Ke_Xu]

Hi AdamGebhart,

About updating the search result symbology, please try to use Record created message action. Then symbology could be changed.

Thanks,

Ke

[AdamGebhart]

@Ke_Xu

Thanks for the tip.  I'm not seeing a target when I add the Records created trigger.  Do I need to set up another trigger or action elsewhere?  My search widget resides in a sidebar, along with a Feature Info widget that displays the feature's popup(s) that are either chosen in the Search or by clicking in the map.

[Ke_Xu]

Hi AdamGebhart,

Layer source and Locator source should be selected at the same time.

Thanks,

Ke

[AdamGebhart]

@Ke_Xu

From the New search source?  My searches are by layer source and I'm not seeing that coming up as an option for those. If I add a locator I see that come up.

I can go the locator route if needed but I prefer not to in this app because in the AGO map I have a popup configured for my address points that uses Intersects to retrieve values from a polygon feature class.  That can't be done with a locator, right?  I'm essentially trying to recreate some of the former WAB District Lookup widget functionality.

[Ke_Xu]

I am sorry. Message action "Add to map" just for Locator result. It doesn't take effect on the result of layer source we added.

[AdamGebhart]

@Ke_Xu

Do you know if it’s possible to create a custom popup for a locator (service) and/or have it use the Arcade Intersects function?  My current setup is to search my address points and use Intersects to pull values from a polygon feature class/service to complete the address point popup.  If I can't do that with a locator or geocode service there isn't any use in adding it to the search widget.  The layer source search works well for what I need, it's just the results symbology needs to be better for the end user.

[QunSun]

ArcGIS JavaScript API doesn't support border for highlight options, see details here - https://developers.arcgis.com/javascript/latest/api-reference/esri-views-View.html#HighlightOptions

[AdamGebhart]

@QunSun

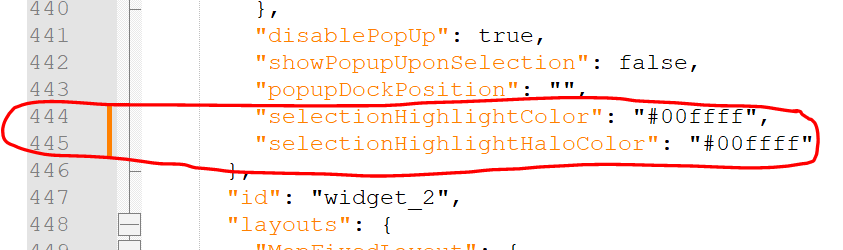

Thank you.  Is there anything that can be added or modified to the config to make the borders/halo more prominent?  I see there is 'shadowColor' but that appears to be only for a 3D SceneView.
