Draw Widget or Measurement widget - show distance on every line segment

335
5
02-19-2026 04:59 AM
Status: Open
Labels (3)
IrouschekAndreas
Occasional Contributor

Display of line segment lengths as an option. You can choose. Whole length and segment length or only whole length.

5 Comments
ClintOffutt1

Please add this feature asap!  Thanks!!

BKootstra

Our Public Safety uses Segment and total perimeter measurements, but makes their job difficult without each segment measurements available.

MichelleMaldonado123

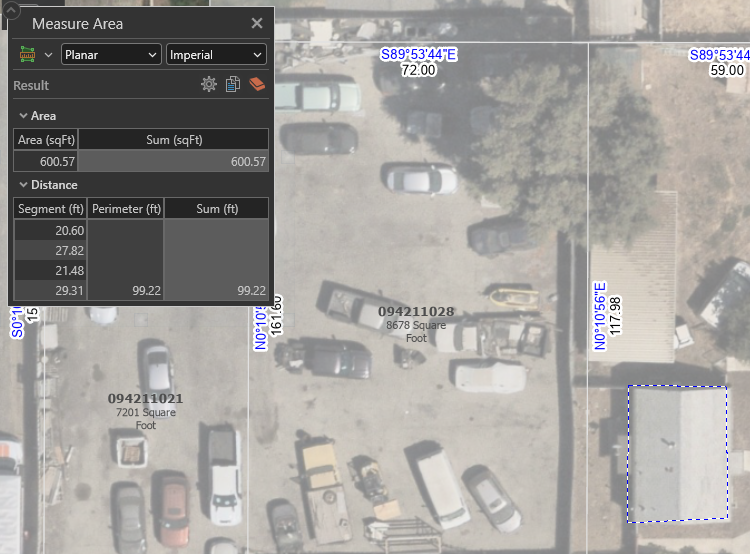

We would like something that is in ArcPro now. Be able to solidify a polygon and be able to see all segment measurements that makes up the perimeter. Public Safety begs for us to be able to do this.


MichelleMaldonado123

Please

JimCarmichael1

This should be a simple addition and would be very helpful to our users. Please add.
