Allow users to customize the list of default units in the ExB Measurement widget

257
1
07-09-2025 10:50 AM
Status: Open
Labels (2)
berniejconnors
by
Frequent Contributor

Currently, ExB designers have no control over the units of measurement presented in the Measurement widget.  There is a predefined list of units for linear and areal measurements.  The ExB designer cannot add to, remove from, or sort the list of units.  We have many lawyers and surveyors that use our ExB app and they frequently must deal with old Imperial measurement units such as rods (16.5 ft) and chains (66 ft).

My idea:

               In the config for the measurement widget, present a list of all the default units in a table with the unit’s name, abbreviation, and conversion factor from metres (or sq metres).  Allow the ExB designer to add, remove, and sort the rows of the table.  For example, linear units, the current default list of units is:

Name

Abbreviation

Conversion to metres

Inches

in

0.0254

Feet

ft

0.3048

Yards

yd

0.9144

Miles

mi

1609.3

Nautical miles

NM

1852.0

Feet (US)

ft(US)

0.3048006096

Millimeters

mm

0.001

Centimeters

cm

0.01

Decimeters

dm

0.1

Meters

m

1

Kilometers

km

1000

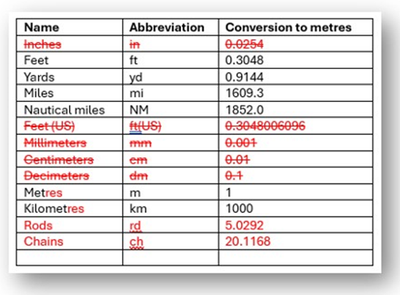

 If I were able to edit this list, I would immediately make the following changes:


In my opinion, there is no need for units smaller than feet or metres in the mapping apps my organization will publish.  Adding the units of rods and chains are useful for users referring to old deeds or survey plans.

There are several other similar "Ideas" proposed by other users - see links below.  These have a total of 56 kudos as of 2025-07-09.  Many people are asking for improvements to the Measurement widget.  Let’s get started!

https://tinyurl.com/ym79ho3u
https://tinyurl.com/ywq9vk5l
https://tinyurl.com/yrjflwka
https://tinyurl.com/yl2fvas5



Thanks,

Bernie.



1 Comment
ClintOffutt1
by
‎07-10-2025 07:24 AM

I agree with these recommendations, very rarely the Links unit might be used in conjuction with Chains, so that might be nice but rarely used.

I also think it is important for the the Measure widget (and/or the measure tool in the Map controls) to log or label individual segments in a multi segment linear measurement.  Instead of just a cumulative "total" length, each segment needs to be logged or labeled.  I suppose if we ever get the Draw widget tooltip contraints figured out, that would suffice, but surely the GIS developers for ESRI could figure this out.  There are dozens of other commercial vendors offering such capabilities, including legacy ESRI products (ArcReader and ArcMap).
