Merge polygons based on a boundary??

654
2
Jump to solution
11-20-2023 01:15 PM
Laura
by MVP Regular Contributor
MVP Regular Contributor

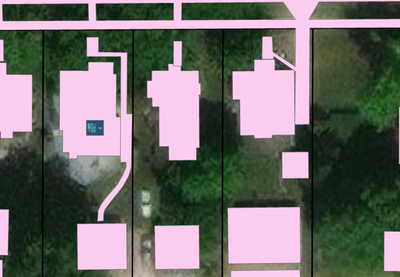

I just received some impervious data that I have merged with my building footprints to create 1 layer. However I would like those separate boundaries gone within each parcel. I can't quite figure out how to do that without just creating 1 row in my table.

This is necessary so I can start to calculate the impervious surface % in each parcel and not have inaccurate data due to some of the building footprints and say sidewalks overlapping.






1 Solution

Accepted Solutions
BobBooth1
Esri Contributor

I'd look at the Intersect tool.

https://pro.arcgis.com/en/pro-app/latest/tool-reference/analysis/intersect.htm

Intersect the parcel layer and the impervious surface layer. Then you can dissolve the features in the intersected layer on parcel ID to get area of impervious surface per parcel ID. Join the resulting tabular data to your parcels. Then you can compare the total parcel area with the impervious area on a per-parcel basis.

View solution in original post

2 Replies
BobBooth1
Esri Contributor

I'd look at the Intersect tool.

https://pro.arcgis.com/en/pro-app/latest/tool-reference/analysis/intersect.htm

Intersect the parcel layer and the impervious surface layer. Then you can dissolve the features in the intersected layer on parcel ID to get area of impervious surface per parcel ID. Join the resulting tabular data to your parcels. Then you can compare the total parcel area with the impervious area on a per-parcel basis.

Laura
by MVP Regular Contributor
MVP Regular Contributor

I think this will do it!! Thank you so much, saved me a headache 🙂
