Export stacked maps

1017
5
Jump to solution
05-29-2024 07:18 AM
Labels (3)
TuyambazeSerge
New Contributor

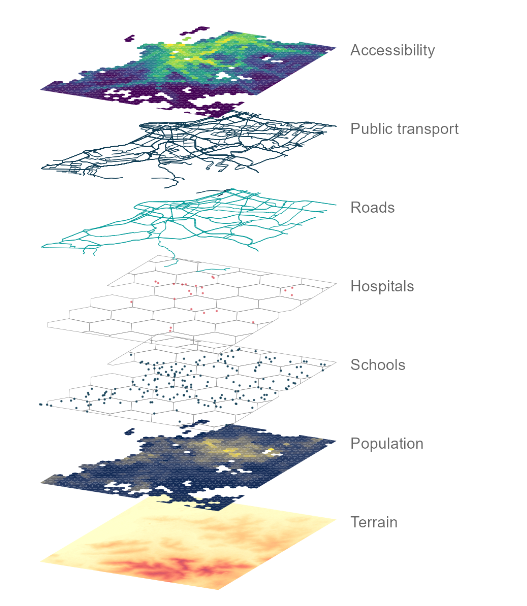

How can I export layout like this using ArcGIS PRO.
Thank you
Screenshot 2024-05-29 161211.png

1 Solution

Accepted Solutions
jcarlson
MVP Esteemed Contributor

That's essentially 7 3D map scenes added to a single layout, and which share the same extent and viewpoint.

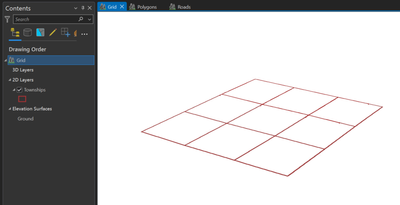

To do this, create a scene for each of the layers:


Configure each map as you need, with the layer(s) you want to show.

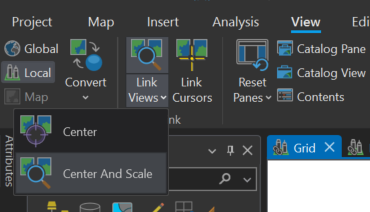

Turning on "Link Views" will keep the layers all consistent.

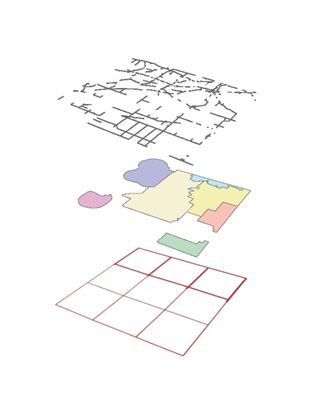

Then create a layout. Add a map frame for each map, and make sure they share the same extent, and make sure each frame is the same size. Then just align your frames with some vertical spacing.






- Josh Carlson
Kendall County GIS

View solution in original post

5 Replies
jcarlson
MVP Esteemed Contributor

That's essentially 7 3D map scenes added to a single layout, and which share the same extent and viewpoint.

To do this, create a scene for each of the layers:


Configure each map as you need, with the layer(s) you want to show.


Turning on "Link Views" will keep the layers all consistent.


Then create a layout. Add a map frame for each map, and make sure they share the same extent, and make sure each frame is the same size. Then just align your frames with some vertical spacing.






- Josh Carlson
Kendall County GIS
Ed_
by MVP Regular Contributor
MVP Regular Contributor

Thanks for sharing J, so how do you add the vertical spacing? Like where in the options do you have to go?

Question | Analyze | Visualize
0 Kudos
jcarlson
MVP Esteemed Contributor

Each map is a separate layout element, so, you just drag them around the page. The alignment tools can be used to keep the spacing consistent, but you move them the same as you would a text box or a legend.

- Josh Carlson
Kendall County GIS
Goodman_Corporation2020
New Contributor

Hello

I achieved this by exporting each layer as a separate .png and arranging them in Illustrator. If you don't have access to Illustrator another way is to create the number of scenes you need (in this case 7x local scenes) insert the map frames in a single layout and export them to the file type of your choice. The fishnet polygons in the hospital and school layers will need to be generated with geoprocessing tools.

Good luck!

0 Kudos
TuyambazeSerge
New Contributor

Thank you very much @jcarlson for the solution.

0 Kudos
