export raster in model builder not exporting full attribute table

1025
3
Jump to solution
03-07-2023 06:21 PM
Labels (3)
QuintinChua
Emerging Contributor

Running ArcGIS 3.03

Hello! I'm new to GIS as a whole and I am trying to use it for some applications in my studies at university. Specifically I want to track the density of people and built infrastructure within countries over time.



I've built a model where I clip the global raster by individual countries and then export the attribute table. The clipping part of the function works fine, but the issue I am having is that the exported raster table is missing data.

- Input polygons




- Raster sample

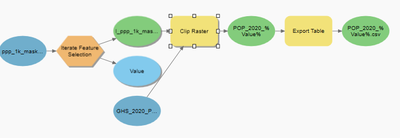

- Model

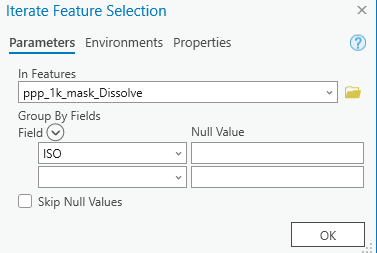

- Iterate feature


- Clip Polygons (Raster Statistics are turned on)

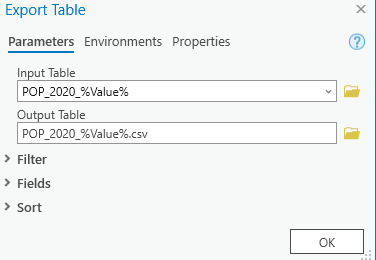

- Export Table


- Attribute table of iterated raster


- Resulting CSV


As shown above the resulting CSV is missing the 2nd and 3rd column of data. Is there something that I am doing wrong that is causing this issue? or is there perhaps a workaround for me to extract the data. Any help and advice would be greatly appreciated.



Additional info:

The data I'm using for the polygons comes from here: https://hub.arcgis.com/datasets/WorldPop::national-boundaries-1km/about

and the population and build density data originates from: https://ghsl.jrc.ec.europa.eu/download.php

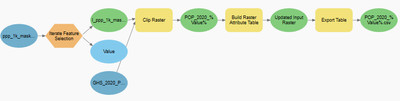

I've also tried using the build raster attribute function


But the resulting CSV is exactly the same, suggesting that its an issue with exporting and not the raster tables themselves.









0 Kudos
1 Solution

Accepted Solutions
DanPatterson
MVP Esteemed Contributor

try Table To Table (Conversion)—ArcGIS Pro | Documentation

since all fields are exported

in Export Table (Conversion)—ArcGIS Pro | Documentation

it states

If the output is not in a geodatabase, BLOB or raster fields will not be included. GlobalID fields will be converted to text fields.


... sort of retired...

View solution in original post

3 Replies
DanPatterson
MVP Esteemed Contributor

try Table To Table (Conversion)—ArcGIS Pro | Documentation

since all fields are exported

in Export Table (Conversion)—ArcGIS Pro | Documentation

it states

If the output is not in a geodatabase, BLOB or raster fields will not be included. GlobalID fields will be converted to text fields.


... sort of retired...
QuintinChua
Emerging Contributor

Worked like a charm! Thank you so much.

0 Kudos
KaustuvNeupane
New Contributor

Do you an image of model builder, which worked for you?

0 Kudos
