ArcGIS Pro Grid Label Tag

224
3
11-04-2021 11:55 PM
THOYSophon
New Contributor

Hey there!

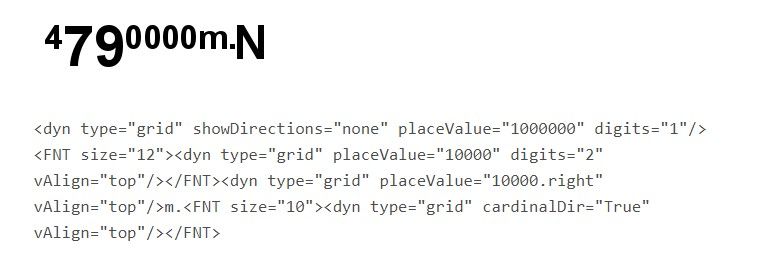

I'm working on map creation using ArcGIS Pro. I want to create a map with the grid label as shown in the picture below. The problem is that I don't understand the label tag and how to display the label like that.

Can anyone help explain it to me? Or it would be helpful if there is a tutorial on this.

Your answer will be a great help to me.

Thank!

Screenshot 2021-11-05 135211.jpg



0 Kudos
3 Replies
DanPatterson
MVP Esteemed Contributor

Work with grid label tags—ArcGIS Pro | Documentation

that is a measured graticule label, have you added them to the layout?


... sort of retired...
THOYSophon
New Contributor

Thanks for kindness reply.

But what is layout?

0 Kudos
DanPatterson
MVP Esteemed Contributor

Some basics

Layouts in ArcGIS Pro—ArcGIS Pro | Documentation


... sort of retired...
0 Kudos
