ArcGIS Pro - Angular Dimensions

352
2
06-13-2023 02:38 PM
Labels (1)
KateDoughty1
New Contributor III

Is there a way to develop angular dimensions within ArcGIS Pro? So far, I've only been able to figure out linear lengths but what I would like to do is have the radii/angles from a starting point:




0 Kudos
2 Replies
DanPatterson
MVP Esteemed Contributor

Are you referring to this for angular unit setup?

Set unit options—ArcGIS Pro | Documentation


... sort of retired...
0 Kudos
KateDoughty1
New Contributor III

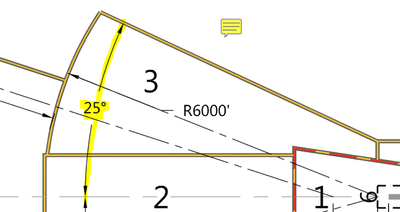

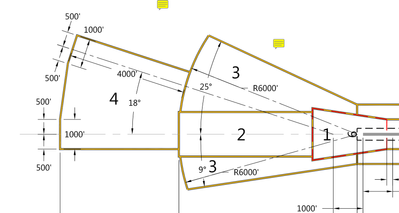

Not quite - we're working with Dimension feature classes, within a Geodatabase. What I'm trying to do (and understand if there's even a way to) is create dimensions for radial angles, as highlighted below:




0 Kudos
