Improve curve handling of boundary placement style

446
3
09-22-2022 08:41 AM
Status: Open
Labels (1)
wayfaringrob
Honored Contributor

When using the boundary placement method on a polygon layer, you're offered one generic-sounding placement option: 'Place along boundary.'

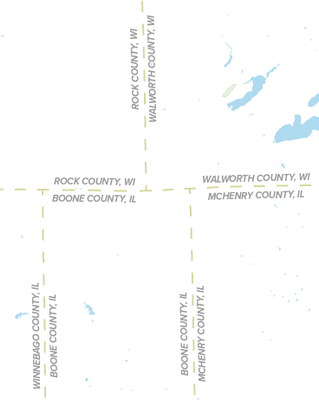

It works really well on straight shapes at certain scales.

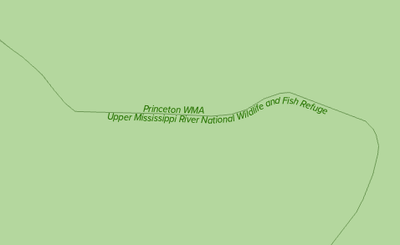

Beyond that, it behaves mostly like the offset straight placement found in other placement methods (even uses the same icon) and occasionally it will give a single 'arc' to a label -- curved, yes, but not the same true curve behavior experienced with other curved placement styles. This ends up looking really awkward in curves and corners. See below:


I don't even know what it's trying to do here:

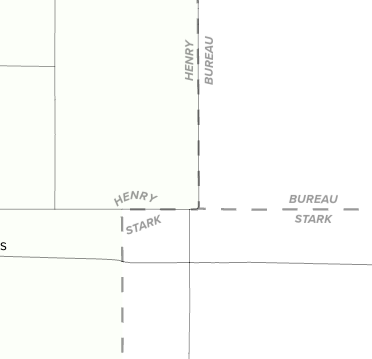

There is plenty of room left of the label for it to fit if it could truly curve around corners. Same here, those labels on the corner really don't need to be doing that:

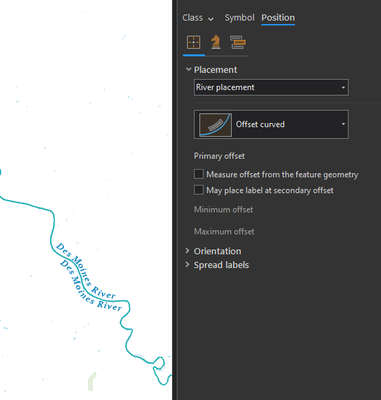

In that first example, if one's going to curve, I'd want it to curve a little better than that, truer to the boundary's form, and for both labels to curve. More like river placement. Here is the same boundary -- I made two copies of a polyline river layer and turned on river (offset curved) placement:

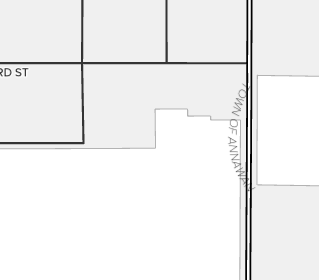

For polygons it also looks like the regular placement > 'curved around polygon' option places them a little more curviliciously -- but in this case, it's got them flipped/on the opposite side of where they should be. This option isn't intended for neighboring polygons.


Whatever's going on in the polyline river placement style and that curved around polygon style -- it would be great to have it carried over at least as an option to the polygon boundary placement style. I like to use this style for political boundaries and they are, in fact, often formed by rivers.




3 Comments
RoseF
by

@wayfaringrob You might see if you can somehow use the Trace tool when placing these labels. Or maybe Esri could incorporate a Trace-like tool in this Placement list!

wayfaringrob

@RoseF  you mean like a manual placement style within labeling, without converting to annotation/graphics? That would actually be really nice. Annotation & graphics layers are both nightmares to deal with and I avoid having to use them like the plague.

RoseF
by

@wayfaringrob Sorry, I was thinking these were annotation features. So, yes, I guess I was thinking of labeling without annotation. I use annotation much more frequently that labelling and graphics because I have to use the labels across many projects but I agree -- they are NOT without challenges!
