Convert unplaced labels to graphics - convert ALL unplaced labels

654
3
04-19-2023 12:25 PM
Status: Already Offered
Labels (1)
wayfaringrob
Frequent Contributor II

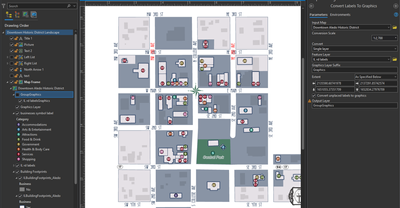

When converting unplaced labels to graphics, convert all labels that appear as unplaced prior to conversion. Ex: the label for NW 2nd Ave appears in red/unplaced as labeling:

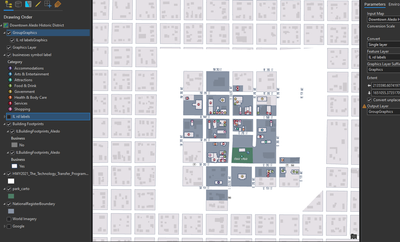

But the converted graphics contain no label for the street:


The label for SW 2nd Ave -- previously placed -- is also not converted.

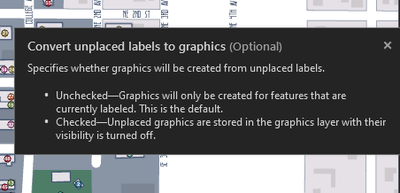

The help for 'Convert unplaced labels to graphics' seems to suggest that unplaced labels are converted to hidden graphics (?) -- but the grammar is unclear:


And since graphics don't appear in the TOC individually, there doesn't seem to be a way to unhide the graphic (if that's what's happening?). Again, the help is unclear -- regardless, it would be helpful if all my placed and unplaced labels converted exactly as shown, even if overlapping, when the box is checked.

3 Comments
JesseWickizer

Unplaced labels are stored in the graphics layer with their visibility turned off. In order to view unplaced/non-visible graphics, check Draw non-visible graphic elements on the Symbology pane.

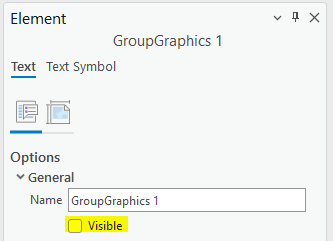

Once those are visible, use the Element pane to toggle visibility of graphic elements.


wayfaringrob

@JesseWickizer  I see - I didn't know graphics had a symbology option. Thanks so much!

WendyHarrison
Status changed to: Already Offered
