Utility Network Field Maps

AneteZvaigzneLV

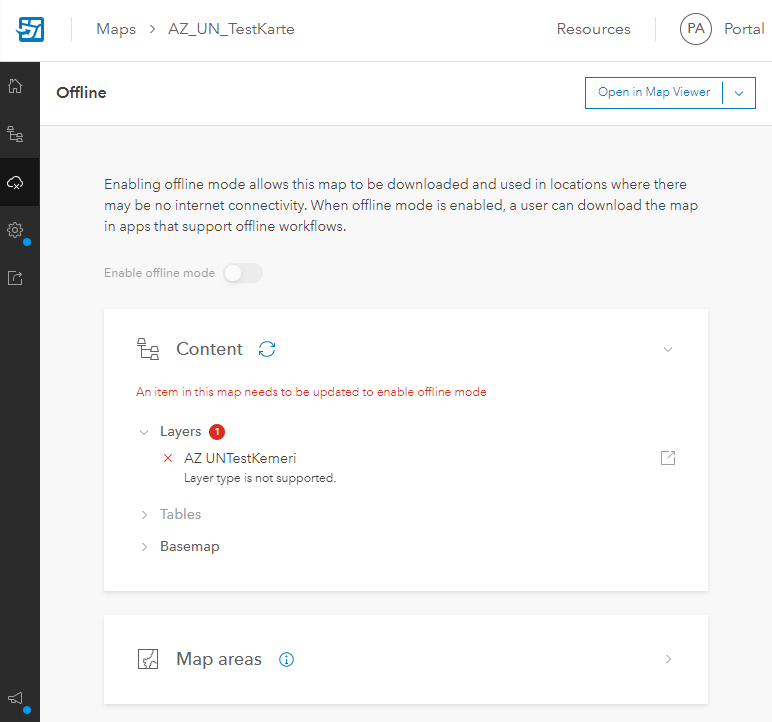

Hello! According to this blog post and also this blog post "After you prepare, publish and share a utility network using ArcGIS Pro, you can open and use it in the Field Maps mobile app", however.... This is what I get [Layer type is not supported] in Field Maps online app if I create a Web Map in Map Viewer (Enterprise Portal 10.9.1.) with a Map Image Layer that also contains UN service. I could not add the corresponding Feature Layer to a Web Map, because I get the Error of "Layer cannot be added to the map. Support for adding this layer type is not yet available."

So I am very much confused at this stage. Please send help!



RichRuh

Hi Anete,

When you publish a web map with a utility network layer in it, the utility network information is stored in the web map, but it does not show up as a separate layer.

It's possible to view dirty areas, but it takes a little bit of extra work.  You have to add the dirty area layer as a separate layer to your web map.  Here's how to do this in ArcGIS Pro:

1. Right-click on the utility network layer in your Pro map, and bring up layer properties. Go to the source tab:

Copy the Location information, as well as the dataset id (23 in the example above).

2. Exit out of that dialog and go to the Add Data tool and choose Data From Path



3. Fill in the path with the web service that you found in step 1.  Add a "/" to the end, and the layer id of the dirty area layer- this should be 1 more than the Dataset ID of the utility network itself. My example above had 23, so in this case the number would be 24:

4. In the table of contents, you'll see both the utility network layer, plus the Dirty Area layer you just added:

5. If you publish this from ArcGIS Pro, you should be able to see the dirty areas in Field Maps.



This isn't an acceptable user interface for what should be a common workflow. We are discussing better options to make this automatic when publishing from ArcGIS Pro, and make it an option in the Enterprise Map Viewer.

Hopefully this will get you working in the meantime.  Let me know if you encounter any more issues.

--Rich
