Enabling Conflict Prevention: Error 130066: Unable to modify LRS. Objects in this class cannot be updated outside an edit session [Lrs.Metadata]

StephenLassiter1

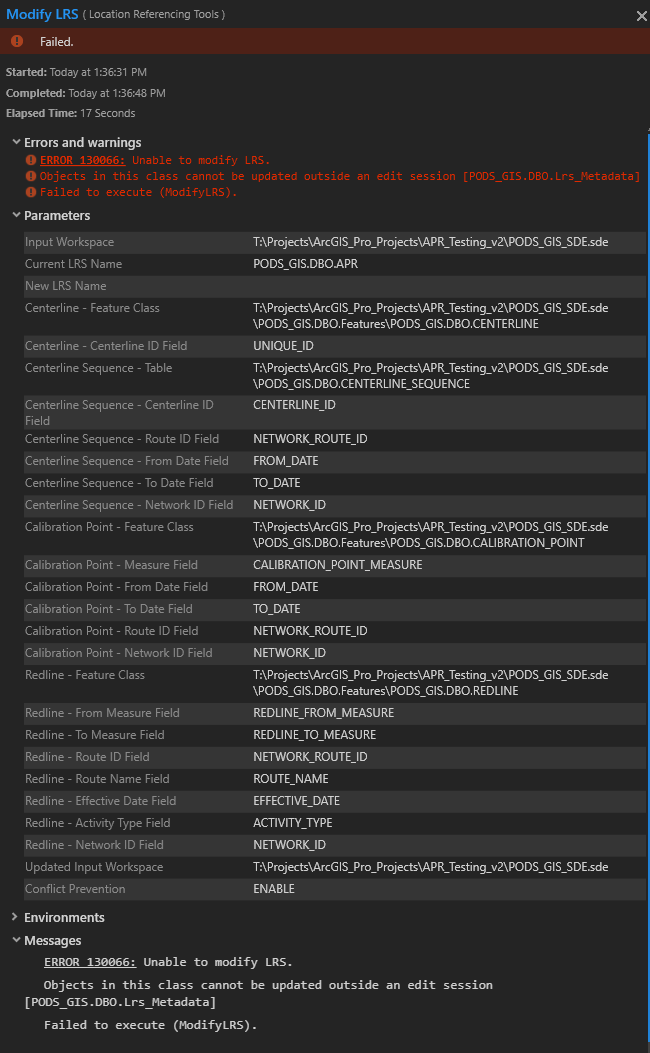

I am attempting to enable Conflict Prevention on my branch versioned LRS dataset. When I run the Modify LRS tool in ArcGIS Pro 2.5.1, I get the following error.

ERROR 130066: Unable to modify LRS.
Objects in this class cannot be updated outside an edit session [PODS_GIS.DBO.Lrs_Metadata]
Failed to execute (ModifyLRS).

I've searched forums for help with this error, and I've found many posts, but nothing really pertaining to ArcGIS Pipeline Referencing and the Lrs_Metadata table. Any help would be much appreciated.

Find more posts tagged with

Accepted answers

StephenLassiter1

Esri Support confirmed for me that the following tables should remain unversioned at all times:

Lrs_Event_Behavior
Lrs_Locks
Lrs_Metadata

You do need to register all other feature classes, feature datasets, and tables in the database as versioned.

Esri Support says the documentation will be updated to include Lrs_Event_Behavior and Lrs_Metadata, in addition to Lrs_Locks, as tables that should be unversioned.


All comments

Ayan Palit

Stephen Lassiter‌ Check your data preparation and versioning steps by referencing the link below. Also, I do not recommend having '.' in your LRS name. If issue persists - log a Esri Support case. Link: Share as web layers—ArcGIS Pro | Documentation

StephenLassiter1

I noticed the documentation Migrate an LRS from a file geodatabase to a multiuser geodatabase recommended to not register the Lrs_Locks table as versioned (which I didn't), which made me wonder if the Lrs_Metadata table shouldn't be registered as versioned. So I unregistered as versioned the Lrs_Metadata table, then re-ran the Modify LRS tool with Conflict Prevention enabled, and It appears it worked. Ayan Palit Can you verify whether Lrs_Metadata should be registered as versioned?

By the way, I did not use a '.' in my LRS name. I named my LRS 'APR'. When I created the LRS in my SQL Server enterprise geodatabase, it added the PODS_GIS.DBO. in front of the LRS name automatically. I'm not sure how to prevent this.

StephenLassiter1

Esri Support confirmed for me that the following tables should remain unversioned at all times:

Lrs_Event_Behavior
Lrs_Locks
Lrs_Metadata

You do need to register all other feature classes, feature datasets, and tables in the database as versioned.

Esri Support says the documentation will be updated to include Lrs_Event_Behavior and Lrs_Metadata, in addition to Lrs_Locks, as tables that should be unversioned.
