Anchor Guy Features and Subnetwork

KevinKirkwood

Hello,

I'm having an issue running Pro 3.3 with 3.3 patches and 10.6. I have a Utility Network and none of the Anchor Guy features will update with a subnetwork. All Anchor Guys have Structural Attachment associations with the poles they are on. The Poles all update with a subnetwork but the Anchor Guy features associated with them will not. I have verified that Structural Attachment Rules exist for all Pole Asset Types and the Anchor Guy Asset Type.

Any help would be appreciated.

Thanks,

Find more posts tagged with

Accepted answers

All comments

KevinKirkwood

I'll try to seek them out over the next few days at the ESRI GeoConX conference. Thanks.

Anonymous User

Hi Kevin,

Please get in touch with UN product team.

John Alsup‌

KevinKirkwood

Manoj,

Is there another way around this? Our client want's to have the subnetwork information populated on these features.

Logically, wouldn't it make sense that the Guy is an attachment on the pole?

I could see this being an issue for many other utilities as well.

Thanks,

6.2.5

Anonymous User

Hi Kevin,

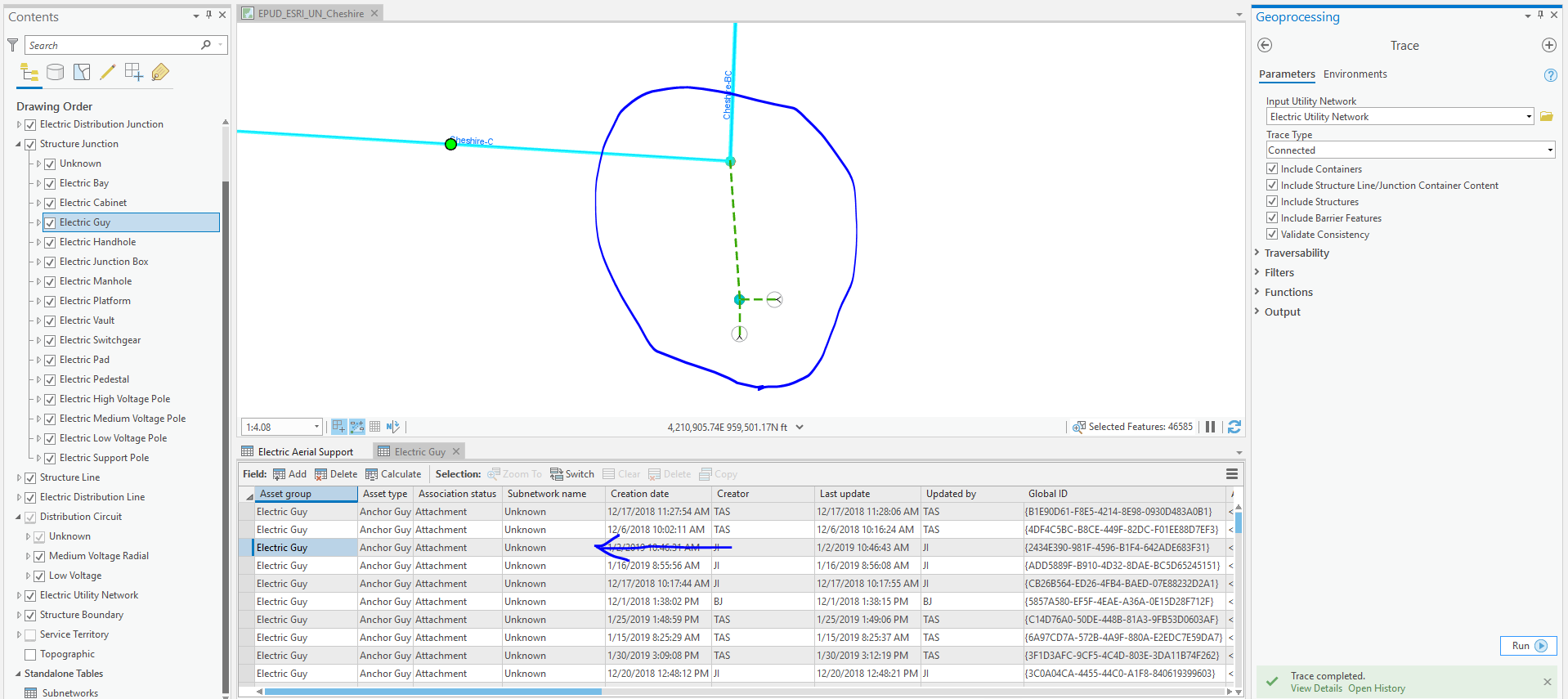

In your case,

the pole to the guy is a structure domain network.
the guy is directly attached to the pole. so its association status is set to "attachment", and the pole's association status is set to "structure".
UN trace tool result only includes those structures (association role set as "structure") where the electrical network directly attached to it via any electrical Junctions or Devices or Assemblies.

In my opinion, you can't achieve the desired results (subnetwork population in anchor guy) as current UN release does not support trace across the domain networks. In a future release of UN, you might achieve it by use of attribute propagators.

Good Luck.

Manoj
