Hello everyone,
My question mainly centers around how to export a set of images on ArcGIS Pro.
What I am trying to do:
I have a Survey123 dataset from which I need to extract quadrat sites ( images attached to each point), according to the corresponding numbers assigned to them ( site number). I need each image to be correspond to each site number, since each site includes numerical data on percent coverage to go with each image stored in a geopoint. Here's the process I intend to follow.
Extracting Data from AGOL:
- I extracted the data from ArcGIS Online (AGOL) to avoid complications with permissions and access issues associated with feature services.
- To do this, I went into the Survey in Survey123 and exported the data as a fileGeoDatabase
Separate the evens from the odd

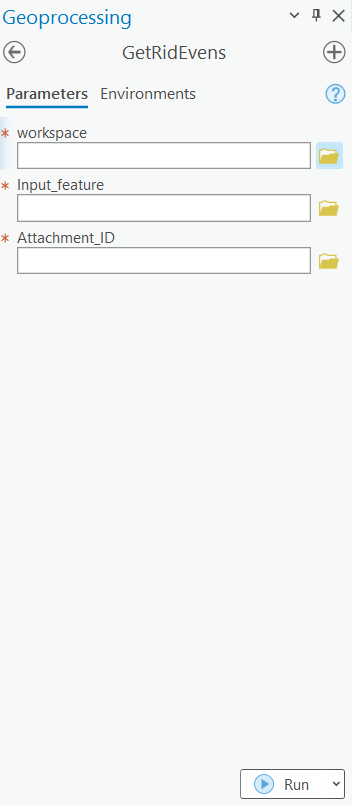

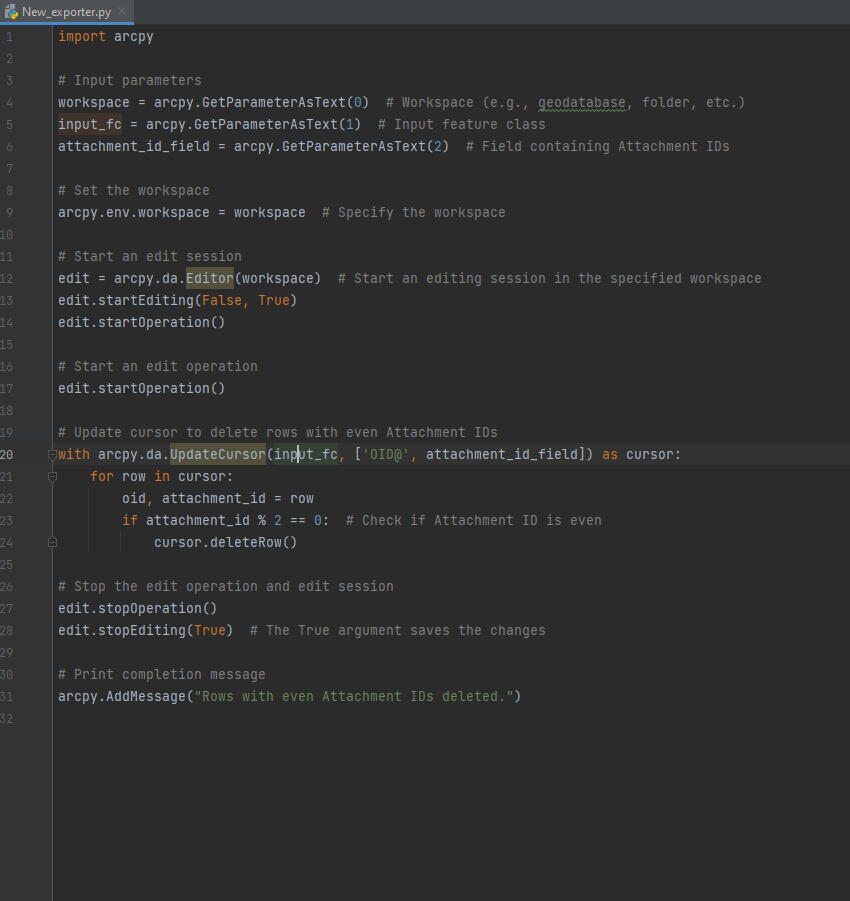

- I only need data from the odd points. I used the following script which I am attaching an image of below, to get rid of all the even points. I ran this through a custom analysis too, which I am attaching an image of below.
Extracting Images from File Geodatabase:
Problem
- My problem is in the detaching evens section

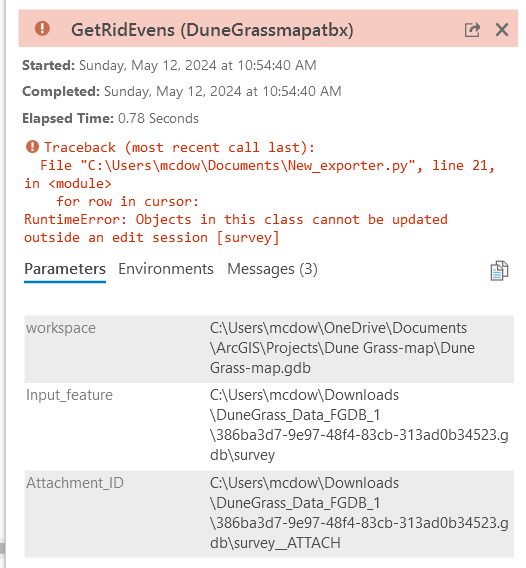

- I keep on encountering the error message when I try to run it as an analysis tool that:
- If anyone has any suggestion on how to solve this or a generally better approach
