elevation from colormap

teakplantation

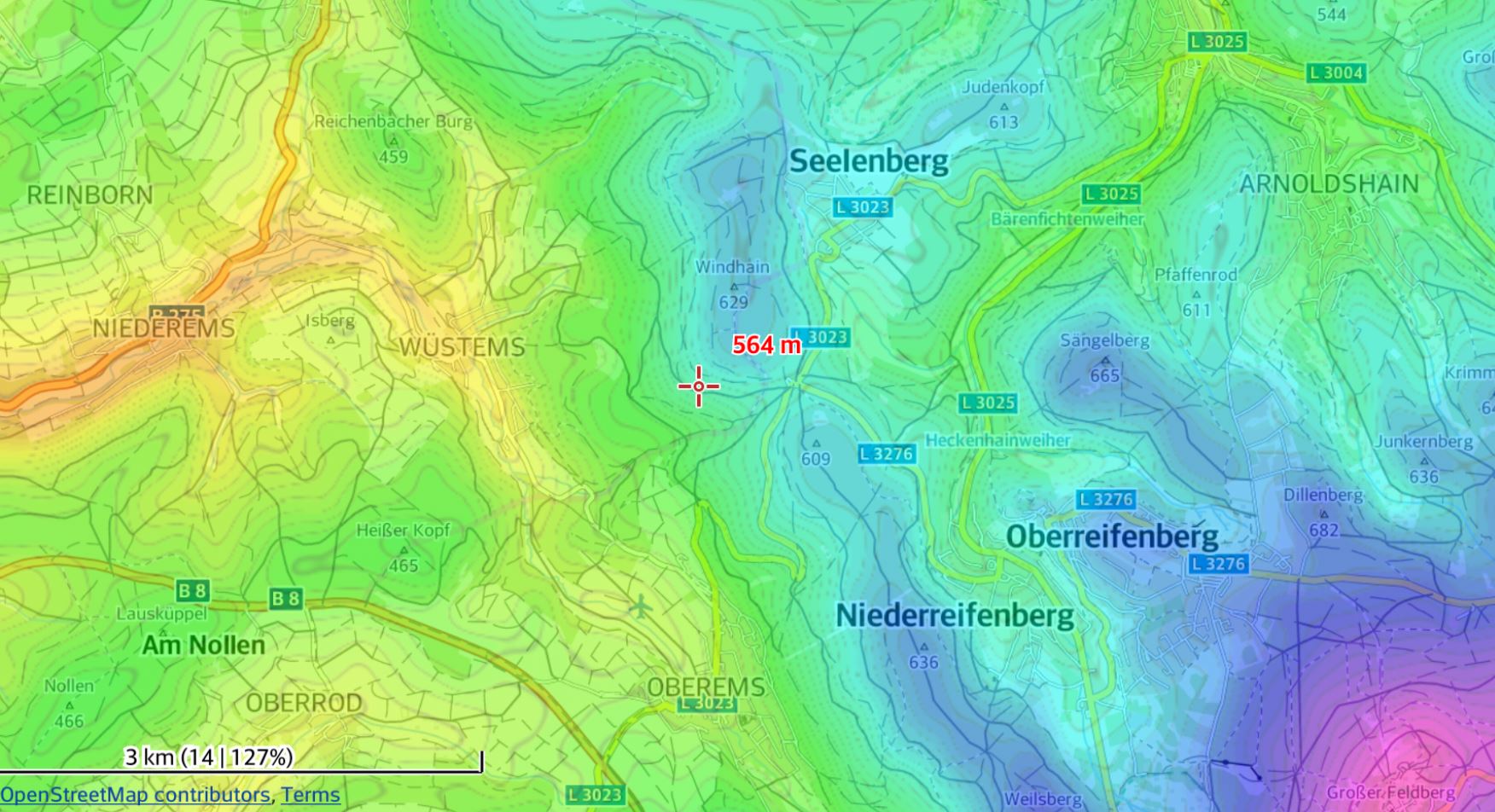

I have an old scanned map with includes elevation contours as well as elevation values colored according to colormap (similar to the example map below).

What I try to achieve is to assign a specific elevation to each color and then subsequently populate the entire map with the corresponding elevation values; so in essence I want to recreate the map from the colors instead of digitizing the contours by hand.

Any suggestions what ArcGIS Pro tool has such a capability?



bbooth

Ah, I see. That's too bad.

I don't think there is a straightforward way to do this. You might create an array of points over the surface and sample the raster color values, then add a column for elevation and create a Python field calculation that would convert specific RGB values to match your estimated elevations for those colors.

You could use the Fishnet tool to create polygons, and then extract the centroids of those.

https://pro.arcgis.com/en/pro-app/3.1/tool-reference/data-management/how-create-fishnet-works.htm

https://support.esri.com/en-us/knowledge-base/how-to-find-the-centroid-of-polygons-using-calculate-ge-000021849

Then use Sample to get the raster values at those points:

https://pro.arcgis.com/en/pro-app/3.1/tool-reference/spatial-analyst/sample.htm

Add a field:

https://pro.arcgis.com/en/pro-app/latest/help/data/geodatabases/overview/create-modify-and-delete-fields.htm

Calculate new field values based on RGB values:

https://pro.arcgis.com/en/pro-app/3.1/tool-reference/data-management/calculate-field-examples.htm
