Relate issue

acresbreifne

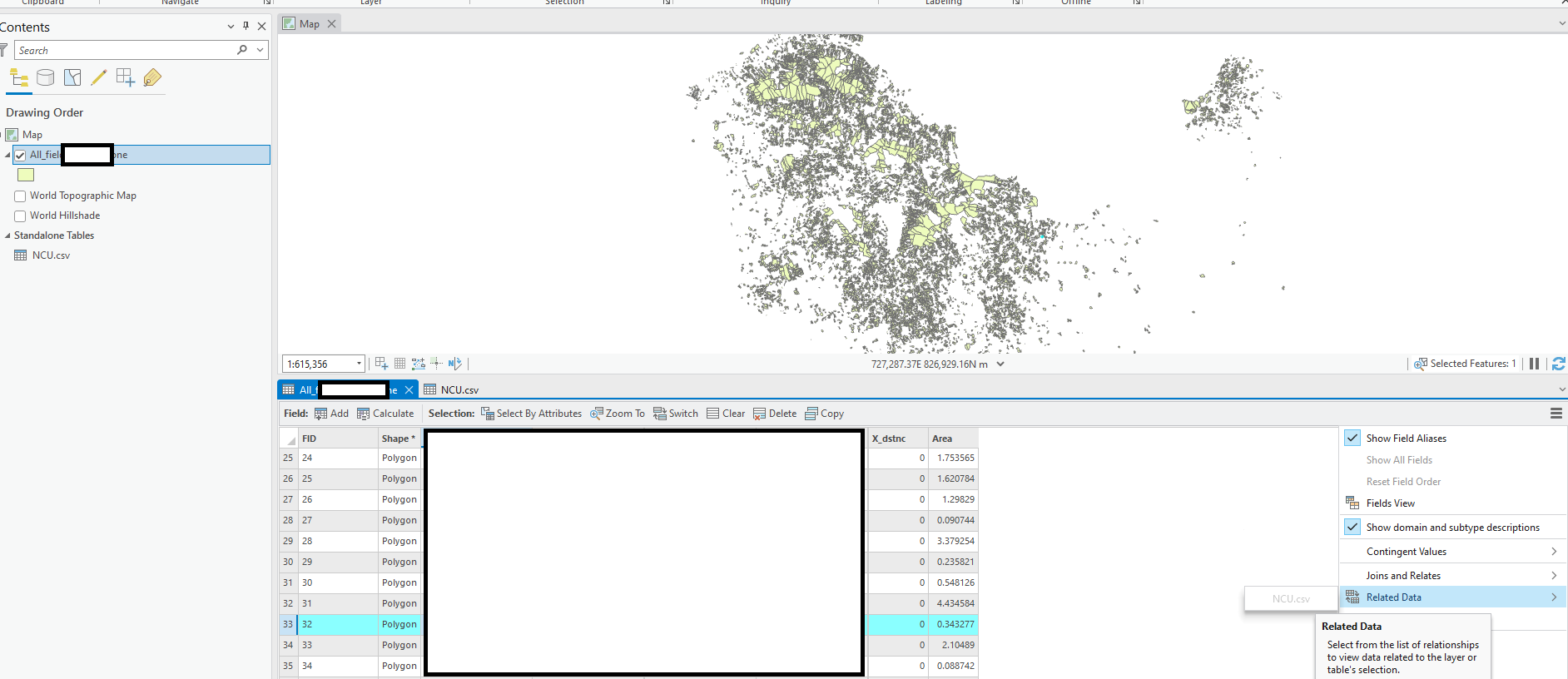

I have tried to relate a feature layer to a standalone table. The standalone table contains multiple data relating to individual features within the feature layer. I used the appropriate attribute fields to create the relate, but when I go to view the relate via the "Related data" the resulting table is greyed out and cannot be selected...(see attached screengrab below- sensitive data blanked out)

I am not sure if&what I am doing wrong here, does anyone have any ideas?

Find more posts tagged with

Analysis

Feature Services

Accepted answers

Robert LeClair

So I reproduced what you're experiencing as well. I'm using ArcGIS Pro 3.2.1.

1. Created a relate with an Excel file - worked as expected.
2. Created a relate with a CSV file - did not work and is grayed out as you saw.

Wondering if this a BUG...

Robert LeClair

The Add Relate GP tool (workflows) are for all licenses - Basic, Standard, and Advanced. I'll do some more digging...

All comments

acresbreifne

OK thanks, good to know it isn't solely related to my experience.

In the meantime I need to come up with a workaround....if anyone has any ideas please pass them on!!

Robert LeClair

So I reproduced what you're experiencing as well. I'm using ArcGIS Pro 3.2.1.

1. Created a relate with an Excel file - worked as expected.
2. Created a relate with a CSV file - did not work and is grayed out as you saw.

Wondering if this a BUG...

Robert LeClair

The Add Relate GP tool (workflows) are for all licenses - Basic, Standard, and Advanced. I'll do some more digging...

acresbreifne

Version 3.2. I have no problems create a Join, just not Relate...I also have a basic license; perhaps that is the issue?

Robert LeClair

What release of ArcGIS Pro are you using? The reason I ask is because there's a bug at ArcGIS Pro 2.9 and earlier releases - "BUG-000123993 - When a relate is created in ArcGIS Pro with a Comma Separated Value (CSV) file, the Explore tool does not show related data of the CSV file."
