Hello,
Since we upgraded from ArcGIS Enterprise 11.0 to ArcGIS Enterprise 11.1, a simple geoprocessing service went from 3 min to run to 18 min.
With the same data and the following GP published:
import datetime
import os
import arcpy
# Scripts inputs (network, orders, depots, routes)
sample_gdb_path = r'C:\PATHTO\BUG_DATA.gdb'
in_network_dataset = os.path.join(sample_gdb_path, 'GRAPHE_ROUTIER\GRA_GRAPHE_G')
in_orders = os.path.join(sample_gdb_path, 'in_orders')
in_depots = os.path.join(sample_gdb_path, 'in_depots')
in_routes = os.path.join(sample_gdb_path, 'in_routes')
# Utility function to display tool execution progress
def time_now(message):
return arcpy.AddMessage(message + datetime.datetime.now().strftime('%H:%M:%S'))
def solve_vehicule_routing_problem(scratchGDB, in_orders, in_depots, in_routes):
# Network Analyst - Solve Vehicule Routing Problem
# https://pro.arcgis.com/en/pro-app/latest/arcpy/network-analyst/migratingfrom10xarcpynetworkanalyst.htm
time_now('Making VehicleRoutingProblemAnalysis layer...')
#Create a new closest facility analysis layer.
result_object = arcpy.na.MakeVehicleRoutingProblemAnalysisLayer(
in_network_dataset,
"Vehicle Routing Problem",
"Guard",
"Minutes",
"Kilometers",
None,
"LOCAL_TIME_AT_LOCATIONS",
"ALONG_NETWORK",
"Medium",
"Medium",
"DIRECTIONS",
"CLUSTER",
"HALT"
)
#Get the layer object from the result object. The closest facility layer can
#now be referenced using the layer object.
layer_object = result_object.getOutput(0)
#Get the names of all the sublayers within the closest facility layer.
# https://pro.arcgis.com/en/pro-app/latest/arcpy/network-analyst/getnaclassnames.htm
sublayer_names = arcpy.na.GetNAClassNames(layer_object)
orders_layer = sublayer_names["Orders"]
depots_layer = sublayer_names["Depots"]
routes_layer = sublayer_names["Routes"]
time_now('Adding orders locations...')
arcpy.na.AddLocations(
layer_object,
orders_layer,
in_orders,
"Name NO_OUVRAGE #;Description # #;ServiceTime ServiceTime #;TimeWindowStart # #;TimeWindowEnd # #;MaxViolationTime # #;TimeWindowStart2 # #;TimeWindowEnd2 # #;MaxViolationTime2 # #;InboundArriveTime # #;OutboundDepartTime # #;DeliveryQuantity_1 # #;DeliveryQuantity_2 # #;DeliveryQuantity_3 # #;DeliveryQuantity_4 # #;DeliveryQuantity_5 # #;DeliveryQuantity_6 # #;DeliveryQuantity_7 # #;DeliveryQuantity_8 # #;DeliveryQuantity_9 # #;PickupQuantity_1 # #;PickupQuantity_2 # #;PickupQuantity_3 # #;PickupQuantity_4 # #;PickupQuantity_5 # #;PickupQuantity_6 # #;PickupQuantity_7 # #;PickupQuantity_8 # #;PickupQuantity_9 # #;Revenue Revenue #;AssignmentRule # 3;RouteName # #;Sequence # #;CurbApproach # 0",
"5000 Meters",
)
time_now('Adding depots locations...')
arcpy.na.AddLocations(
layer_object,
depots_layer,
in_depots,
"Name Name #;Description Description #;TimeWindowStart TimeWindowStart1 #;TimeWindowEnd TimeWindowEnd1 #;TimeWindowStart2 TimeWindowStart2 #;TimeWindowEnd2 TimeWindowEnd2 #;CurbApproach CurbApproach 0",
"5000 Meters"
)
time_now('Adding routes locations...')
arcpy.na.AddLocations(
layer_object,
routes_layer,
in_routes,
"Name Name #;Description Description #;StartDepotName StartDepotName #;EndDepotName EndDepotName #;StartDepotServiceTime StartDepotServiceTime #;EndDepotServiceTime EndDepotServiceTime #;EarliestStartTime EarliestStartTime '8:00:00 AM';LatestStartTime LatestStartTime '10:00:00 AM';ArriveDepartDelay ArriveDepartDelay #;Capacity_1 # #;Capacity_2 # #;Capacity_3 # #;Capacity_4 # #;Capacity_5 # #;Capacity_6 # #;Capacity_7 # #;Capacity_8 # #;Capacity_9 # #;FixedCost FixedCost #;CostPerUnitTime CostPerUnitTime 1;CostPerUnitDistance CostPerUnitDistance #;OvertimeStartTime OvertimeStartTime #;CostPerUnitOvertime CostPerUnitOvertime #;MaxOrderCount MaxOrderCount 30;MaxTotalTime MaxTotalTime #;MaxTotalTravelTime MaxTotalTravelTime #;MaxTotalDistance MaxTotalDistance #;AssignmentRule AssignmentRule 1;Shape_Length Shape_Length #",
"5000 Meters"
)
time_now('Solving Vehicule Routing Problem ...')
# https://pro.arcgis.com/en/pro-app/latest/tool-reference/network-analyst/solve.htm
arcpy.na.Solve(
layer_object,
"HALT",
"TERMINATE",
None, ''
)
time_now('Generating directions ...')
# https://pro.arcgis.com/en/pro-app/latest/arcpy/network-analyst/generatedirectionsfeatures.htm
arcpy.na.GenerateDirectionsFeatures(layer_object, os.path.join(scratchGDB, 'Directions'))
time_now('Copying routes and stops ...')
arcpy.management.CopyFeatures(routes_layer, os.path.join(scratchGDB, 'Routes'))
arcpy.management.CopyFeatures(orders_layer, os.path.join(scratchGDB, 'Orders'))
if __name__ == "__main__":
scratchGDB = arcpy.env.scratchGDB
solve_vehicule_routing_problem(scratchGDB, in_orders, in_depots, in_routes)

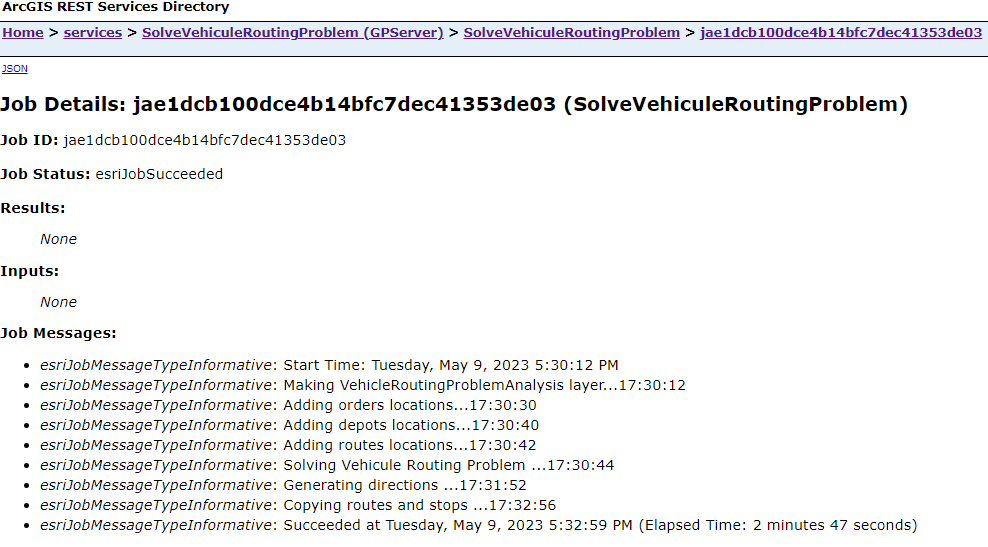

On 11.0:
On 11.1:
5 times slower. Seems like a performance regression to me.
Anybody noticing the same phenomena ?
Thanks
