Parcels edge infos misaligned

MaximeDemers

Hi,



I am trying to order the parcels edge infos but they are always misaligned when the parcels are loaded into Urban. I don't know what I am doing wrong. Even when I change the order, its never correctly aligned.

For a perticular parcel this is the edge infos:

[{"adjacencies":[],"orientation":"side"},{"adjacencies":[{"type":"street","width":20,"category":"14"}],"orientation":"front"},{"adjacencies":[{"type":"street","width":20,"category":"14"}],"orientation":"front"},{"adjacencies":[{"type":"street","width":20,"category":"14"}],"orientation":"front"},{"adjacencies":[],"orientation":"side"},{"adjacencies":[],"orientation":"side"},{"adjacencies":[],"orientation":"side"},{"adjacencies":[],"orientation":"rear"}]

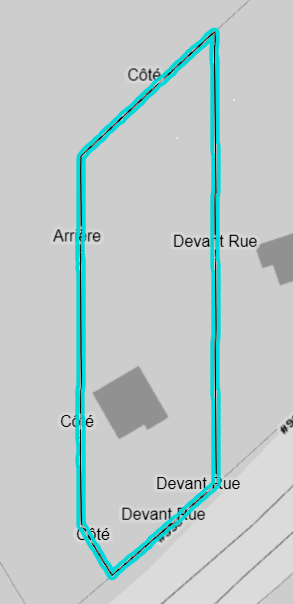

This is the result in Urban (sorry I am using the french version)

What is the proper way to order the edge infos?

Thanks!

tschmid

Hi @MaximeDemers

To align the edges correctly, please make sure that the edge information stored in the JSON string is formatted as follows:

• The first edge needs to be aligned with the first edge in the geometry (= the edge where you started to draw the parcel geometry).
• The order of the edges needs to be aligned with the order of the edges in the geometry (= the direction you drew the parcel geometry; = the order of the coordinates in the ring of the geometry).

You can check both - the numbering of the edges and the ordering of the edges/vertices in your geometry - in ArcGIS Pro (Edit Geometry tool > Edit Vertices).

Let me know if this helps or not. Thanks!
