Tiled Cache Raster shifts after packaging

175
1
07-09-2025 03:07 PM
shildebrand
Frequent Contributor

Hello everyone,

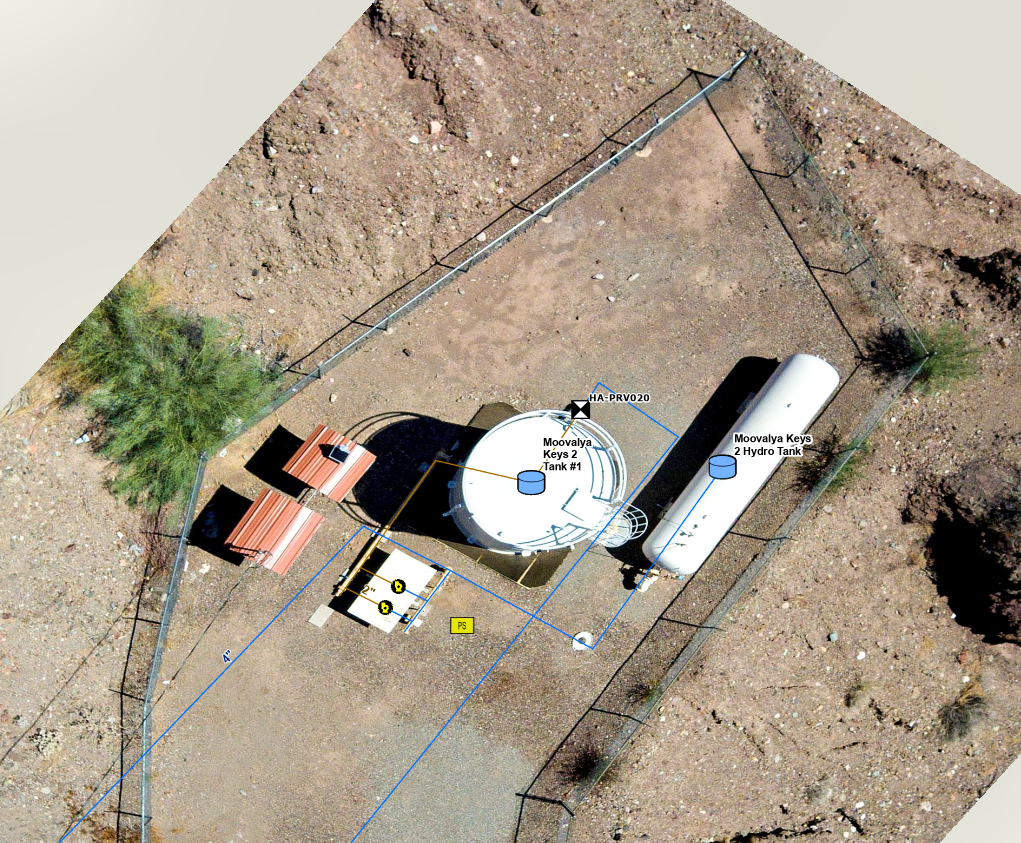

I am having some trouble with a tile cache layer that seems to shift a few feet after exporting to a tile package (.tpkx).  The below image, shows the tiled cache layer with water linework drawn above it.  Both layers are projected in WGS 1984 Web Mercator.  As you can see, linework seems to match pipes on the ground especially near the pumps.

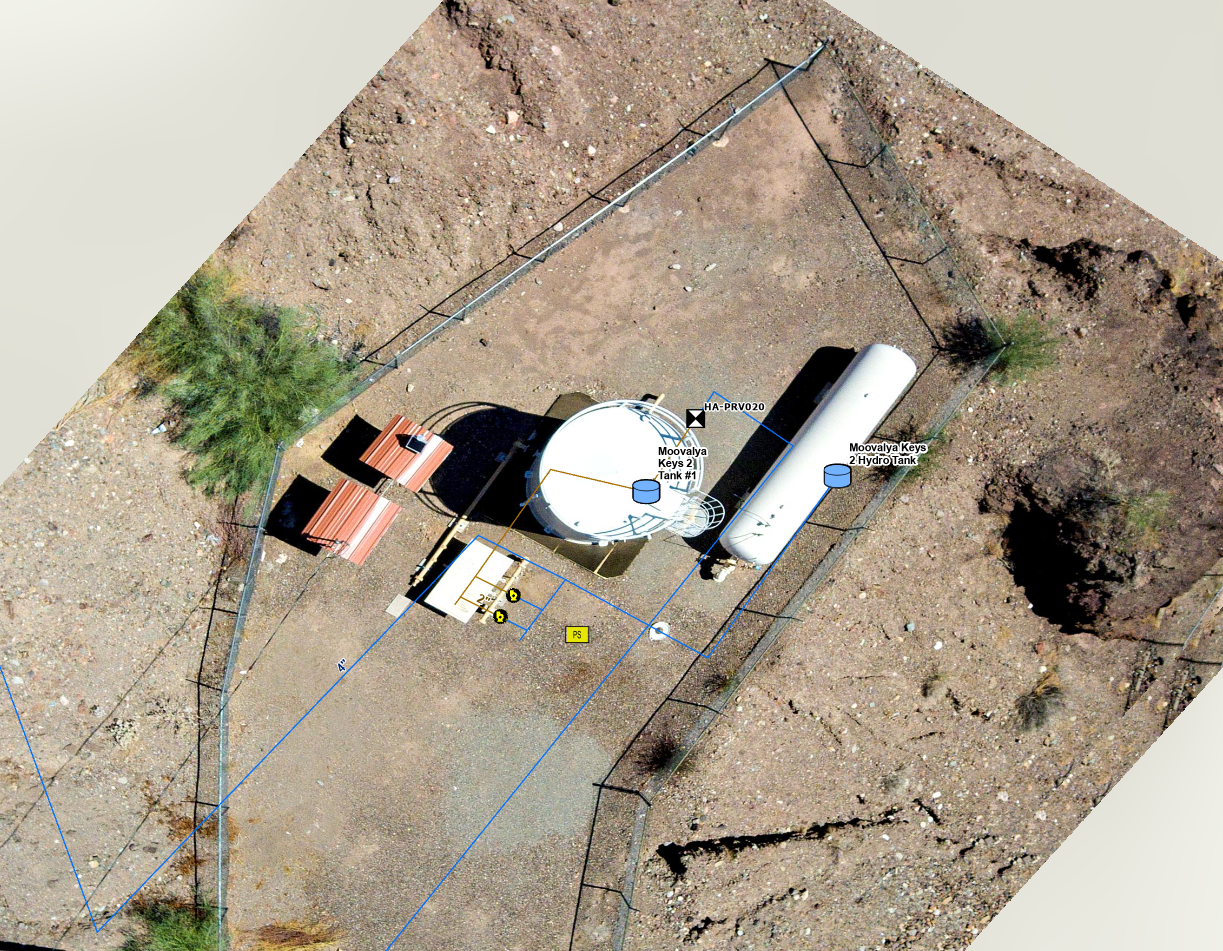

When I export the tile cache image to a tile package (.tpkx), the image shifts about 3 feet to the left (shown below).  The purpose for exporting to a tile package is in order to upload to our enterprise portal for web viewing.  Any ideas on why the image shifts?






0 Kudos
1 Reply
dgiersz_cuyahoga
Frequent Contributor

Whenever I see things like this, it is almost always the transformation used in the projection. Verify what is being used in the Map to display the data is the same being used by the tools for caching.

#CLE #sloth
